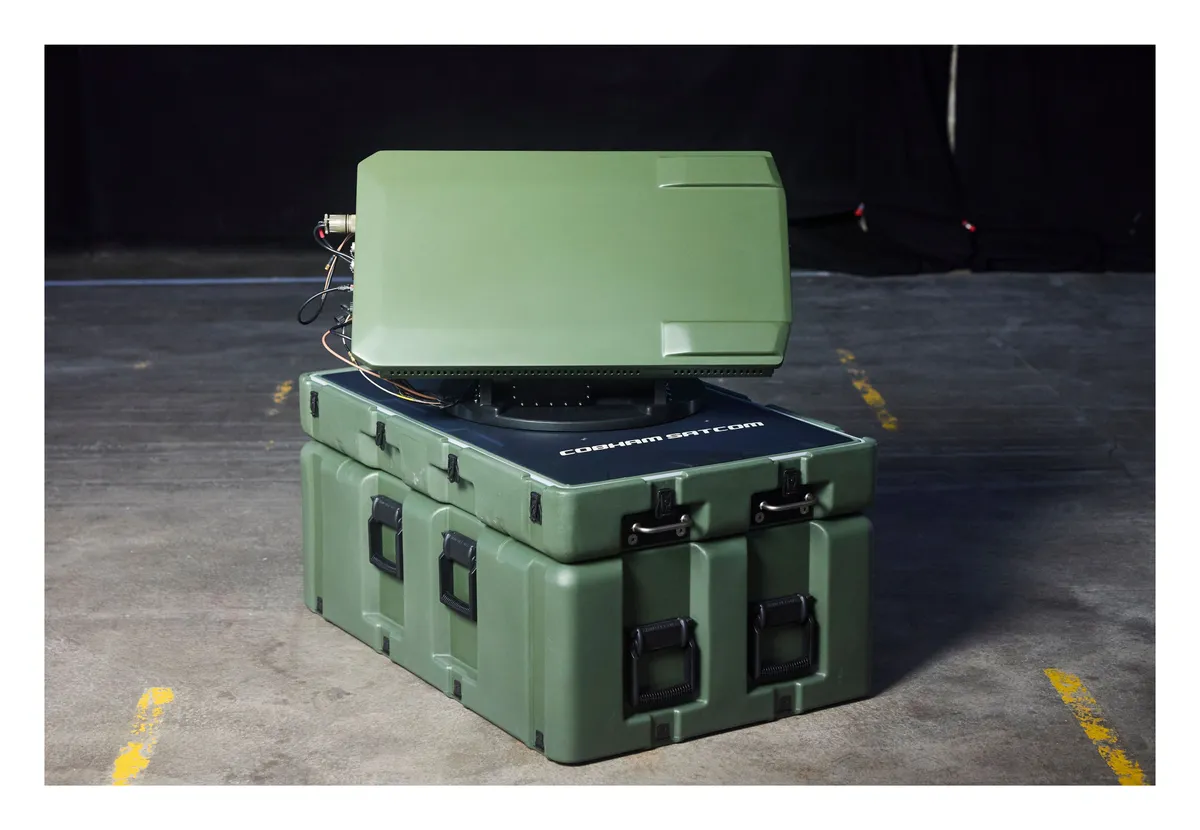

Flat Panel Multi Network True Dual-beam AESA Ka-band Flat-Panel Antenna (50 x 75 x 8 cm, under 13 kg)
Cobham SATCOM
Flat Panel Multi Network True Dual-beam AESA Ka-band Flat-Panel Antenna (50 x 75 x 8 cm, under 13 kg)
Model: Flat Panel Multi Network
Pricing for this product is provided on request.
Request a quoteFlat Panel Multi Network is the true dual-beam model of Cobham SATCOM's AESA Ka-band flat-panel terminals, able to hold two network connections at once across LEO, MEO, HEO and GEO satellites. Dual-beam operation suits users who cannot accept break-before-make switching, for example when running encrypted tunnels. It is ruggedised for fixed, mobile, vehicular and maritime installations.
Specifications
| Antenna type | Electronically steered array (AESA) flat panel, true dual-beam |
| Frequency range | Rx 17.7–21.2 GHz, Tx 27.5–31 GHz (full Ka-band, commercial and Mil-Ka) |
| Supported orbits | LEO, MEO, HEO and GEO |
| Size | 50 x 75 x 8 cm |
| Weight | Under 13 kg |
| Power consumption | ~1100 W max. (2 beams transmitting) |
| G/T / EIRP (preliminary product sheet) | 13 dB/K / 53 dBW |
| Options | Optional gimbal (portfolio product sheet) |
| Model | Flat Panel Multi Network |
