C-COM iNetVu Ka-98H/Jup 98 cm auto-acquire Ka-band driveaway antenna for Hughes JUPITER networks (Yahsat, Avanti)
C-COM
C-COM iNetVu Ka-98H/Jup 98 cm auto-acquire Ka-band driveaway antenna for Hughes JUPITER networks (Yahsat, Avanti)
Model: iNetVu Ka-98H/Jup Driveaway
Pricing for this product is provided on request.

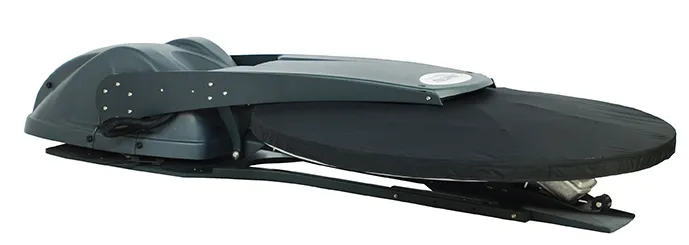

Request a quoteThe iNetVu Ka-98H/Jup is a 98 cm auto-acquire Ka-band driveaway antenna adapted to operate on HNS JUPITER-based network technology. C-COM states it works with HNS Jupiter (North America), Yahsat (MENA) and Avanti, uses the iNetVu 7715 Controller and acquires any Ka-band satellite within 2 minutes.
Specifications
| Reflector | 98 cm elliptical antenna, offset feed |
| Band | Ka-band: Rx 19.20 to 20.20 GHz, Tx 29.50 to 30.00 GHz |
| Midband gain | 43.5 dBi at 19.75 GHz (Rx); 46.6 dBi at 29.75 GHz (Tx) |
| Network compatibility | HNS Jupiter (NA), Yahsat (MENA), Avanti |
| Controller | iNetVu 7715 |
| Platform weight | 54 kg (119 lb) |
| Mounting plate | L 151 cm x W 45 cm (59.5 x 17.7 in) |
| Stowed reflector extension | L 173 x W 100 cm |
| Deployed height | 151 cm (59.5 in) |
| Azimuth | Full 360° in overlapping 200° sectors |
| Elevation | 0 to 90° |
| Deploy speed | Variable, 10°/s typical (azimuth and elevation) |
| Motors | 24 VDC, 8 A max |
| Operating wind | 72 km/h (45 mph) |
| Survival wind | 160 km/h (100 mph) deployed; 225 km/h (140 mph) stowed |
| Operating temperature | -30 °C to +55 °C |
| Survival temperature | -40 °C to +65 °C |
| Model | iNetVu Ka-98H/Jup Driveaway |
Need installation or a bulk quote? Talk to our team.
