C-COM iNetVu Ka-98G 98 cm auto-acquire Ka-band driveaway antenna for Gilat and iDirect modems (optional pod)
C-COM
C-COM iNetVu Ka-98G 98 cm auto-acquire Ka-band driveaway antenna for Gilat and iDirect modems (optional pod)
Model: iNetVu Ka-98G Driveaway
Pricing for this product is provided on request.

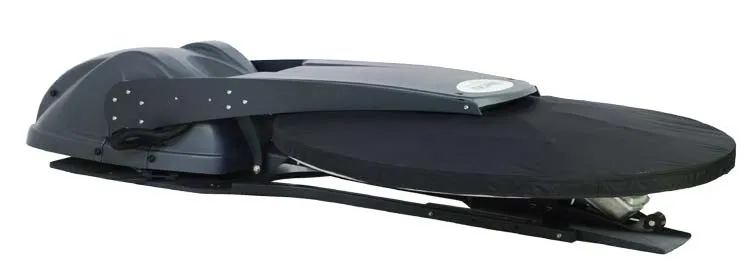

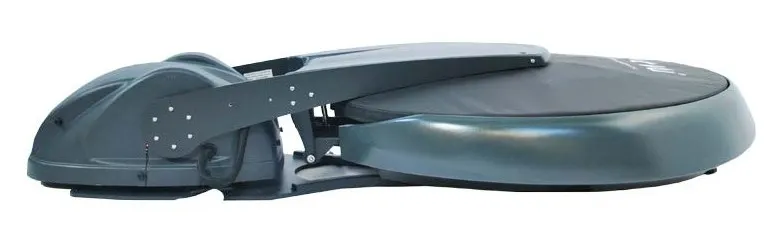

Request a quoteThe iNetVu Ka-98G is a 98 cm auto-acquire Ka-band driveaway antenna designed for use with Gilat and iDirect modems and mounted on a vehicle roof. It works with the iNetVu 7715 Controller for fast satellite acquisition and is available with or without a reflector pod.
Specifications
| Reflector | 98 cm elliptical antenna, offset feed |
| Band | Ka-band |
| Modem compatibility | Gilat and iDirect modems |
| Controller | iNetVu 7715 |
| Platform weight | 54 kg (119 lb) |
| Total platform weight | 56.3 kg (124 lb) without pod; 63 kg (139 lb) with pod |
| Mounting plate | L 161 cm x W 45 cm (63.5 x 17.7 in) |
| Stowed reflector extension | L 170 x W 100 cm without pod; L 178.8 x W 113 cm with pod (H 30 cm) |
| Deployed height | 151 cm (59.5 in) |
| Azimuth | Full 360° in overlapping 200° sectors |
| Elevation | 0 to 90° |
| Deploy speed | Variable, 10°/s typical (azimuth and elevation) |
| Motors | 24 VDC, 8 A max |
| Operating wind | 72 km/h (45 mph) |
| Survival wind | 160 km/h (100 mph) deployed; 225 km/h (140 mph) stowed |
| Operating temperature | -30 °C to +55 °C |
| Survival temperature | -40 °C to +65 °C |
| Model | iNetVu Ka-98G Driveaway |
Need installation or a bulk quote? Talk to our team.
