C-COM iNetVu 980+ 98 cm auto-acquire Ku-band driveaway vehicle-roof satellite antenna (3-axis, field upgradable to Ka)
C-COM
C-COM iNetVu 980+ 98 cm auto-acquire Ku-band driveaway vehicle-roof satellite antenna (3-axis, field upgradable to Ka)
Model: iNetVu 980+ Driveaway
Pricing for this product is provided on request.

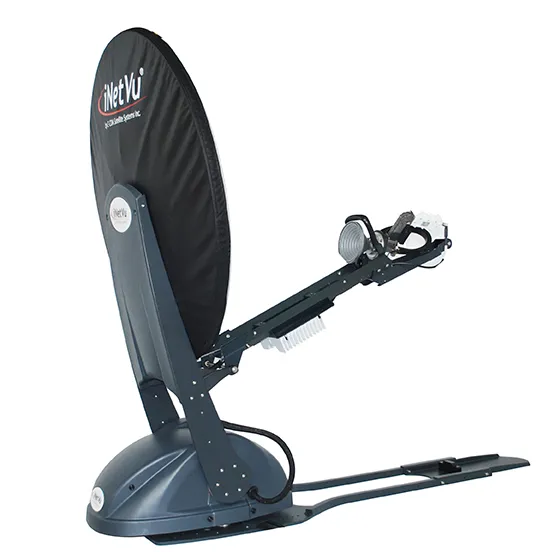

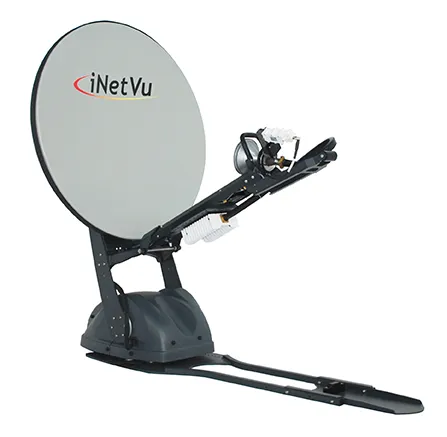

Request a quoteThe iNetVu 980+ is a 98 cm auto-acquire Ku-band driveaway antenna with 3-axis motorization, designed to work with the iNetVu 7024C Controller. A one-button controller acquires any Ku satellite within 2 minutes, it works with commercially available Ku modems and services, and it is field upgradable to Ka-band.
Specifications
| Reflector | 98 cm antenna, SMC reflector, offset feed with cross-pol feed |
| Band | Ku-band (field upgradable to Ka-band) |
| Axes | 3-axis motorization |
| Controller | iNetVu 7024C |
| Feed arm capacity | Up to 5 kg (10 lb) of RF electronics (LNB and BUC) |
| Platform weight | 54 kg (119 lb) |
| Mounting plate | L 156 cm x W 45 cm (61.5 x 17.7 in) |
| Deployed height | 151 cm (59.5 in) |
| Azimuth | Full 360° in overlapping 200° sectors |
| Elevation | 0 to 90° |
| Deploy speed | Variable, 10°/s typical (azimuth and elevation) |
| Motors | 24 VDC, 8 A max |
| Operating wind | 72 km/h (45 mph) |
| Survival wind | 160 km/h (100 mph) deployed; 225 km/h (140 mph) stowed |
| Operating temperature | -30 °C to +55 °C |
| Survival temperature | -40 °C to +65 °C |
| Model | iNetVu 980+ Driveaway |
