C-COM iNetVu 1801 1.8 m auto-deploy driveaway VSAT antenna for Ku, Ka and C-band (3-axis, 11 kg feed arm)
C-COM
C-COM iNetVu 1801 1.8 m auto-deploy driveaway VSAT antenna for Ku, Ka and C-band (3-axis, 11 kg feed arm)
Model: iNetVu 1801 Driveaway
Pricing for this product is provided on request.

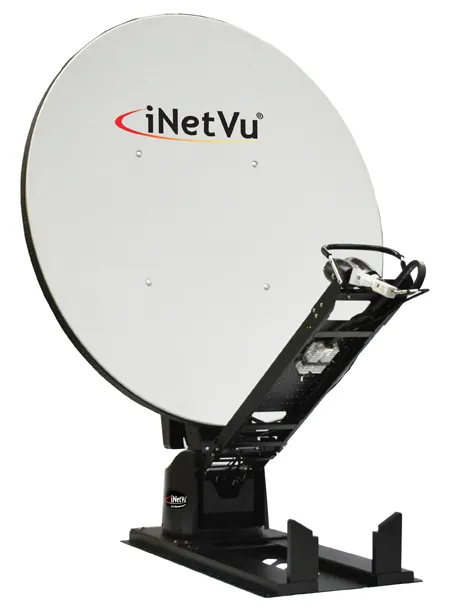

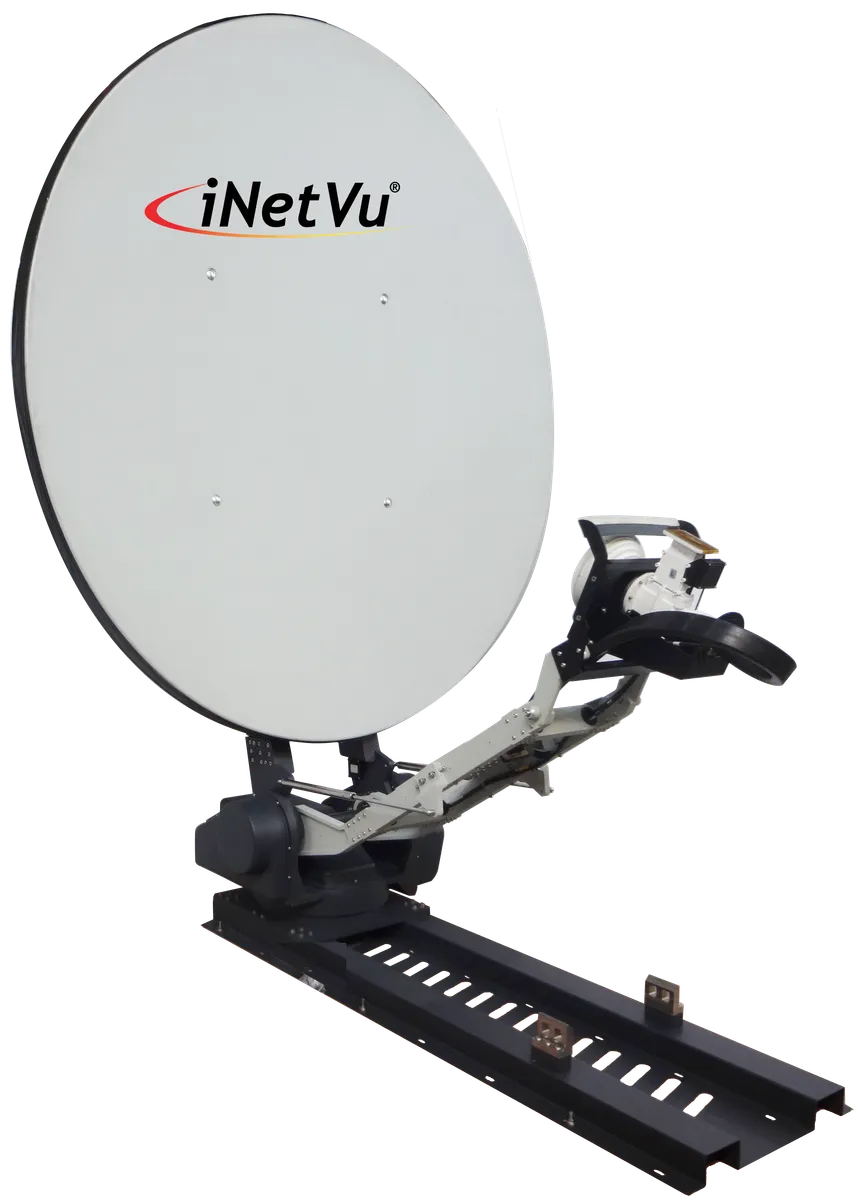

Request a quoteThe iNetVu 1801 is a 1.8 m auto-acquire driveaway antenna that mounts on a vehicle roof and operates on Ku, Ka, C or X band with all supported modems. It has 3-axis motorization and works with the iNetVu 7715 Controller, which acquires any supported band within 2 minutes. C-COM lists oil and gas, disaster management, cellular backhaul and emergency communications backup among its uses.
Specifications
| Reflector | 1.8 m prime focus, offset feed, SMC (optional 2-piece and 4-piece reflectors) |
| Bands | Ku, Ka, C or X band |
| Axes | 3-axis motorization |
| Controller | iNetVu 7715 |
| Feed arm capacity | Up to 11 kg (25 lb) of RF electronics (LNB and BUC) |
| Azimuth / elevation | Full 360° in overlapping 200° sectors / 0° to 90° |
| Deploy speed | Elevation 2°/s; azimuth 15°/s or 10°/s typical; peaking 0.1°/s |
| Motors | 24 VDC, 15 A max |
| Operating wind | 80 km/h (50 mph) |
| Survival wind | 112 km/h (70 mph) deployed; 225 km/h (140 mph) stowed |
| Operating temperature | -30 °C to +55 °C (survival -40 °C to +65 °C) |
| Model | iNetVu 1801 Driveaway |
Need installation or a bulk quote? Talk to our team.
