Home / Shop / Satellite Communications / C-COM iNetVu 1501+ 1.5 m carbon-fibre auto-acquire Ku/C-band driveaway antenna for light vehicles

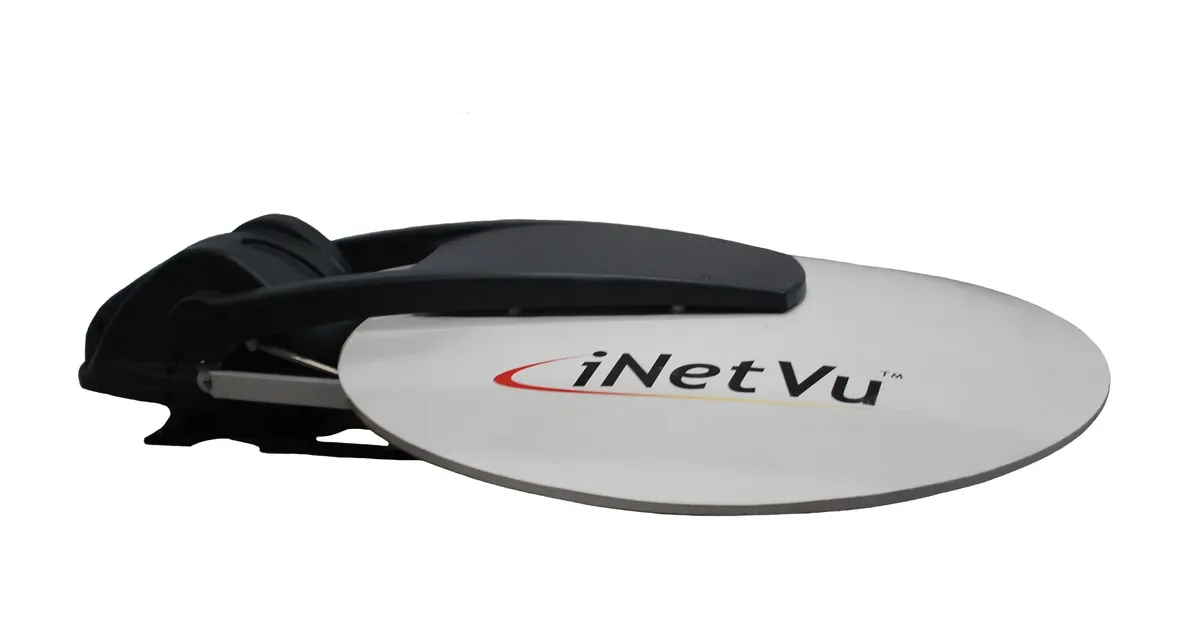

C-COM iNetVu 1501+ 1.5 m carbon-fibre auto-acquire Ku/C-band driveaway antenna for light vehicles
C-COM
C-COM iNetVu 1501+ 1.5 m carbon-fibre auto-acquire Ku/C-band driveaway antenna for light vehicles
Model: iNetVu 1501+ Driveaway
Pricing for this product is provided on request.
Request a quoteThe iNetVu 1501+ is a 1.5 m driveaway antenna that C-COM describes as a good size and extremely light weight for smaller vehicles. It operates on Ku or C-band, uses a light carbon-fibre reflector that works with all supported modems worldwide, and is acquired by a one-button auto-pointing controller.
Specifications
| Reflector | 1.5 m carbon fibre, one-piece offset feed, prime focus |
| Band | Ku-band (also operates on C-band) |
| Ku frequencies | Rx 10.70 to 12.75 GHz; Tx 13.75 to 14.50 GHz |
| Midband gain | 43.7 dBi (Rx); 45.0 dBi (Tx) |
| Transmit power | 1 to 400 W |
| Azimuth / elevation | ±200° / 0° to 90° |
| Deploy speed | Elevation 2°/s, azimuth 6°/s; peaking 0.2°/s |
| Motors | 24 VDC, 10 A max |
| Survival wind | 112 km/h (70 mph) deployed; 225 km/h (140 mph) stowed |
| Operating temperature | -30 °C to +55 °C (survival -40 °C to +65 °C) |
| Ingress protection | IP65 (IEC 60529) |
| Model | iNetVu 1501+ Driveaway |
Need installation or a bulk quote? Talk to our team.
