C-COM iNetVu 1200+ 1.2 m auto-deploy Ku-band driveaway VSAT antenna for vehicle roofs (field upgradable to Ka)
C-COM
C-COM iNetVu 1200+ 1.2 m auto-deploy Ku-band driveaway VSAT antenna for vehicle roofs (field upgradable to Ka)
Model: iNetVu 1200+ Driveaway
Pricing for this product is provided on request.

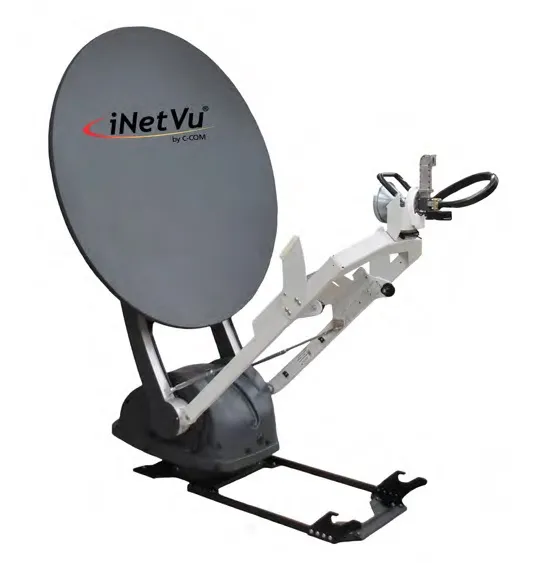

Request a quoteThe iNetVu 1200+ is a 1.2 m auto-deploy Ku-band driveaway VSAT terminal that mounts on a vehicle roof, with three motorized axes and the iNetVu 7715 Controller. C-COM lists it as compliant with Eutelsat and Intelsat, with a pod option and a carbon-fibre reflector option, and field upgradable to Ka-band.
Specifications
| Reflector | 1.2 m glass-fibre reinforced polyester, offset feed, prime focus (carbon fibre optional) |
| Band | Ku-band (field upgradable to Ka-band) |
| Controller | iNetVu 7715 |
| Acquisition | One-button auto-pointing; any Ku-band satellite within 2 minutes (under 3 minutes with beacon receiver) |
| Stowed dimensions | L 204.4 x W 124 x H 41.2 cm (80.5 x 48.8 x 16.2 in) |
| Total platform weight | 100 kg (220 lb) with SMC reflector; 92 kg (203 lb) with carbon reflector |
| Azimuth | ±200° |
| Elevation | 0° to 90° |
| Deploy speed | Elevation 2°/s, azimuth 6°/s; peaking 0.2°/s |
| Motors | 24 VDC, 10 A max |
| Operating wind | 75 km/h (46.5 mph) |
| Survival wind | 112 km/h (70 mph) deployed; 225 km/h (140 mph) stowed |
| Operating temperature | -30 °C to +55 °C |
| Survival temperature | -40 °C to +65 °C |
| Model | iNetVu 1200+ Driveaway |
