BOJAY H-Type Layer Cage System, 6 Birds per Door, 3 to 6 Tiers
BOJAY
BOJAY H-Type Layer Cage System, 6 Birds per Door, 3 to 6 Tiers
Model: RT-LCH3180 to RT-LCH6360
Pricing for this product is provided on request.

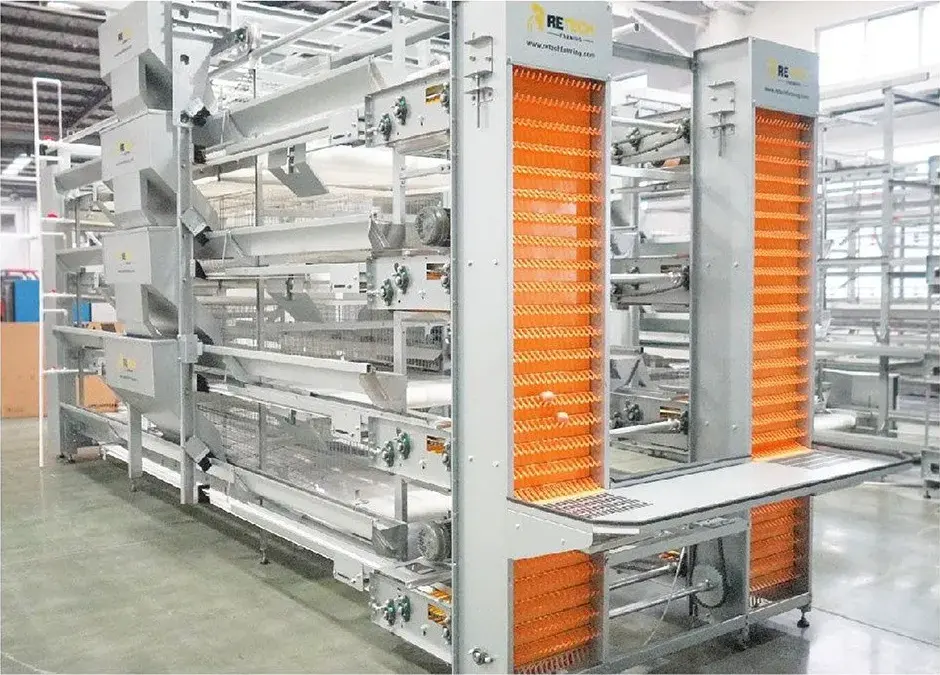

Request a quoteAutomatic H-type battery cage system for laying hens with 3 to 6 tiers. It includes automatic feeding, drinking, egg collecting, manure cleaning and climate control, and is designed for large closed layer houses. The manufacturer quotes up to 150,000 birds in a single house.
Specifications
| RT-LCH3180 | 3 tiers; 5 doors per set; 6 birds per door; 180 birds per set; 2250 x 600 x 430 mm; 450 cm² per bird |
| RT-LCH4240 | 4 tiers; 5 doors per set; 6 birds per door; 240 birds per set; 2250 x 600 x 430 mm; 450 cm² per bird |
| RT-LCH5300 | 5 tiers; 5 doors per set; 6 birds per door; 300 birds per set; 2250 x 600 x 430 mm; 450 cm² per bird |
| RT-LCH6360 | 6 tiers; 5 doors per set; 6 birds per door; 360 birds per set; 2250 x 600 x 430 mm; 450 cm² per bird |
| Cage size (L x D x H) | 2250 x 600 x 430 mm per cage |
| Example house layouts | 100 x 13 x 4 m house: 4 tiers, 4 rows, 156 sets = 37,440 birds; 100 x 13 x 4.5 m: 5 tiers = 46,800 birds; 100 x 13 x 5 m: 6 tiers = 56,160 birds |
| Cage features | Bottom mesh with 8° slope so eggs roll gently; sliding grids; two reinforcing ribs on each bottom mesh (50 kg/m² load); top mesh; PVC egg baffle; two stainless-steel nipple lines; deep V feed trough with inner rim |
| Surface treatment | 275 g/m² hot-dip galvanised steel (manufacturer states a 20-year service life) |

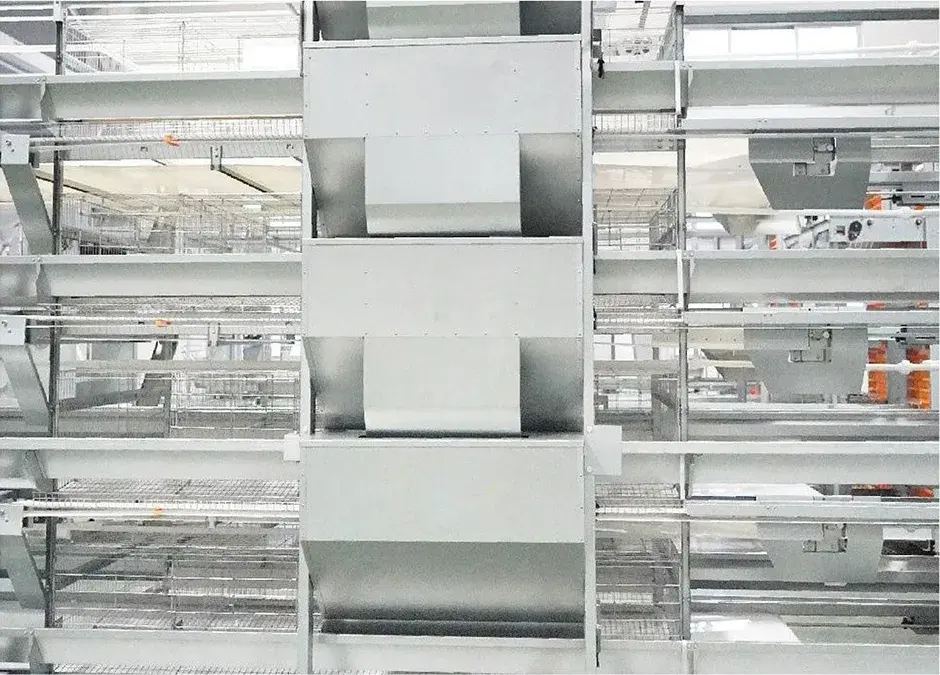

| Automatic systems available | Feeding, drinking, manure cleaning, egg collecting (layers) and smart climate control |
| Supplier | Qingdao Baojieyuan (BOJAY), China |
| Quoting | Price on request. Tell us the quantities and your house or farm size and we send a written quotation |
| Model | RT-LCH3180 to RT-LCH6360 |
