BOJAY Chain-Type Harvesting Broiler Cage System, 2 to 4 Tiers
BOJAY
BOJAY Chain-Type Harvesting Broiler Cage System, 2 to 4 Tiers
Model: RT-BCH2200 to RT-BCH4400
Pricing for this product is provided on request.
Request a quoteAutomatic broiler cage system with a chain-type harvesting floor, designed for converting houses from floor rearing to cages. Two to four tiers raise 2 to 4 times as many birds as floor rearing, and the chain moves birds out tier by tier without pulling out the plastic floor.
Specifications
| RT-BCH2200 | 2 tiers; 135 birds per cage; 270 birds per unit; size 3000 x 1500 x 550 mm; overall height 1,820 mm; 334 cm² per bird |
| RT-BCH3300 | 3 tiers; 135 birds per cage; 405 birds per unit; size 3000 x 1500 x 550 mm; overall height 2,570 mm; 334 cm² per bird |
| RT-BCH4400 | 4 tiers; 135 birds per cage; 540 birds per unit; size 3000 x 1500 x 550 mm; overall height 3,320 mm; 334 cm² per bird |
| Basis | Based on 1.8 kg slaughter weight |
| Example house layouts | 138 x 16 x 2.1 m (conversion): 2 tiers, 6 rows = 68,040 birds; 99 x 14.5 x 4 m: 3 tiers, 5 rows = 60,750 birds; 100 x 15 x 4.6 m (new building): 4 tiers, 5 rows = 81,000 birds |

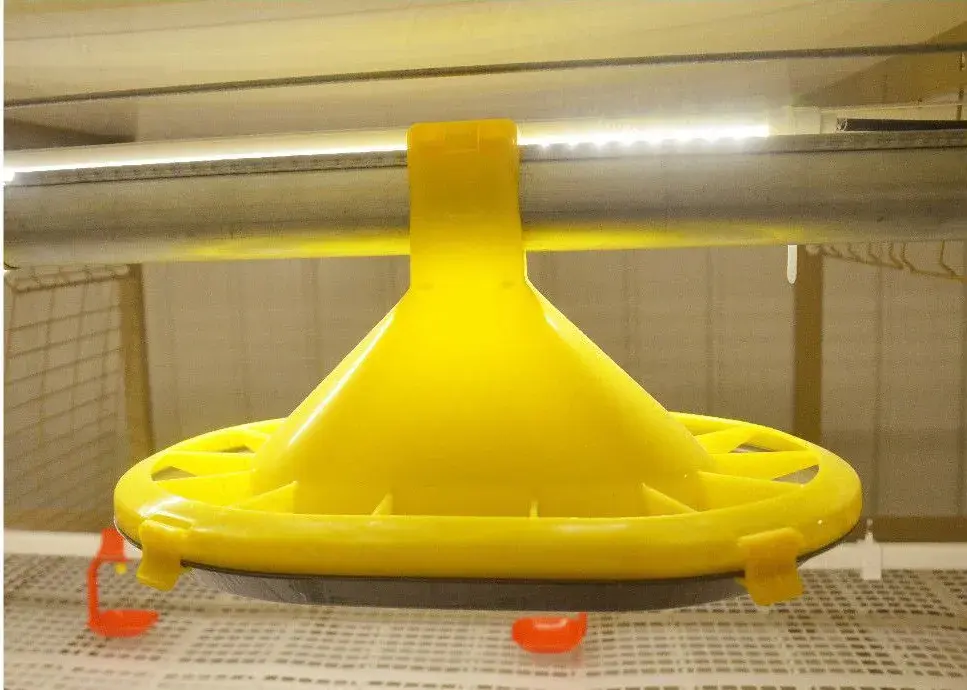

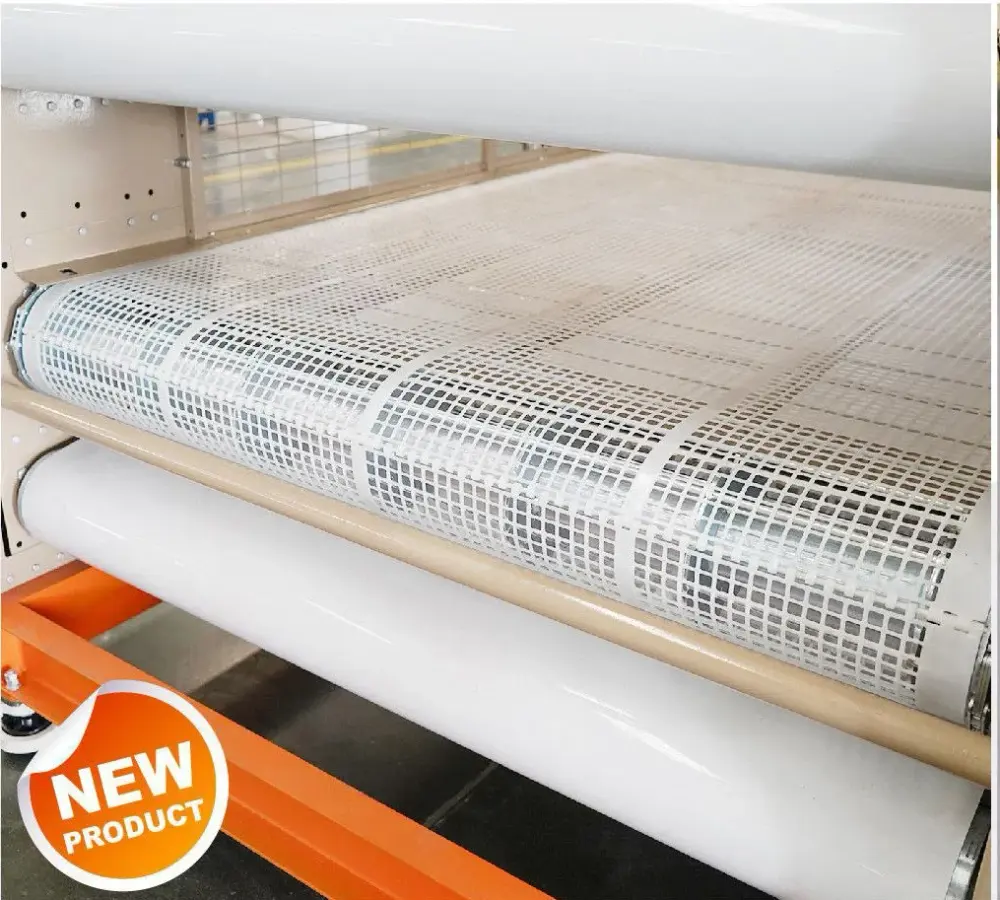

| Cage features | Q235 steel with 275 g/m² hot-dip galvanised coating (20-year service life, manufacturer figure); chain-type bottom slat with 3 reinforcement ribs; oval feeding pan; belt-type manure cleaning; two-colour LED strip with adjustable brightness; automatic bird-harvesting system |

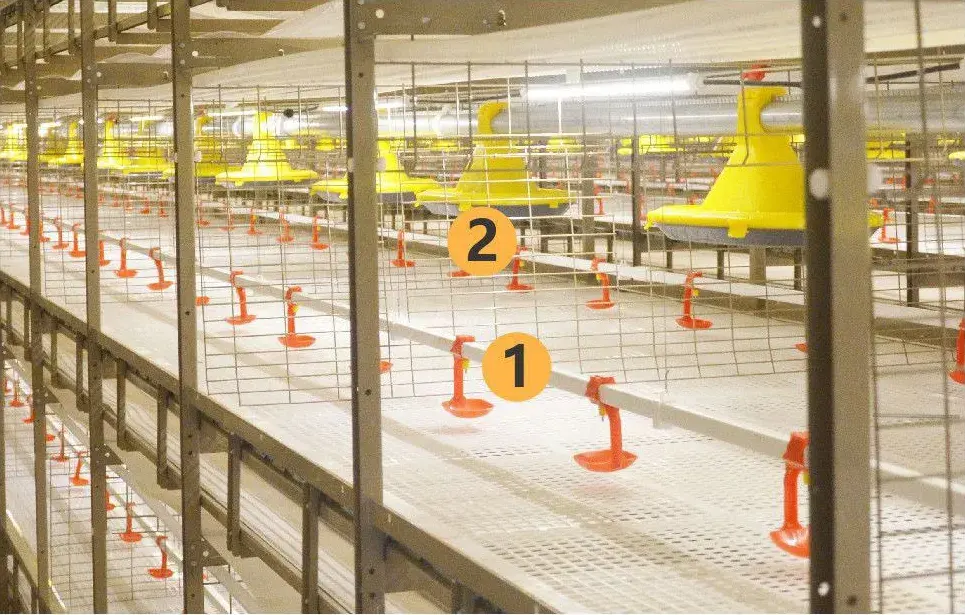

| Automatic systems available | Feeding (auger from silo to pans on each tier), drinking (two lines, four nipples per metre), belt manure cleaning, chain-type bird harvesting, smart climate control |
| Supplier | Qingdao Baojieyuan (BOJAY), China |
| Quoting | Price on request. Tell us the quantities and your house or farm size and we send a written quotation |
| Model | RT-BCH2200 to RT-BCH4400 |
Need installation or a bulk quote? Talk to our team.
