BOJAY Automatic Poultry Pan Feeding System (Complete Line)
BOJAY
BOJAY Automatic Poultry Pan Feeding System (Complete Line)
Model: Pan Feeding System
Pricing for this product is provided on request.

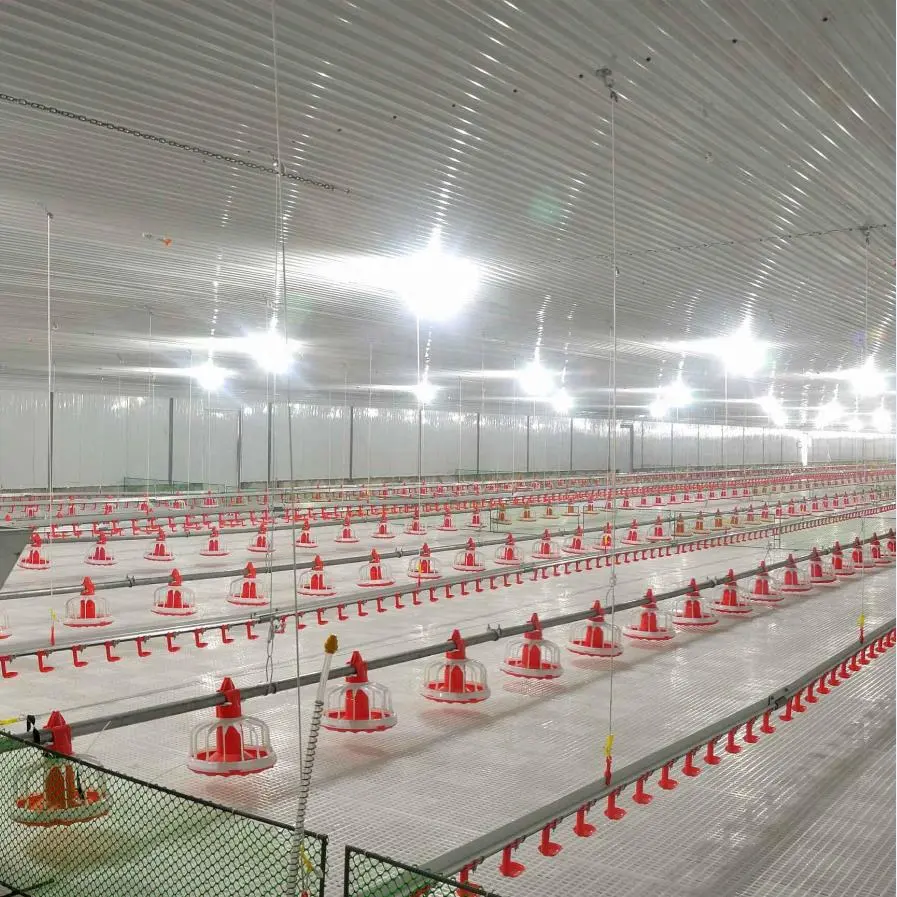

Request a quoteAutomatic feeding line for chicken houses: a galvanised silo or hopper, driving device, auger, feeder pans and feed sensors. The closed design reduces cross-infection and gives a high level of automated control of the house. Line length, number of pans and pan type are chosen to suit your house.
Specifications

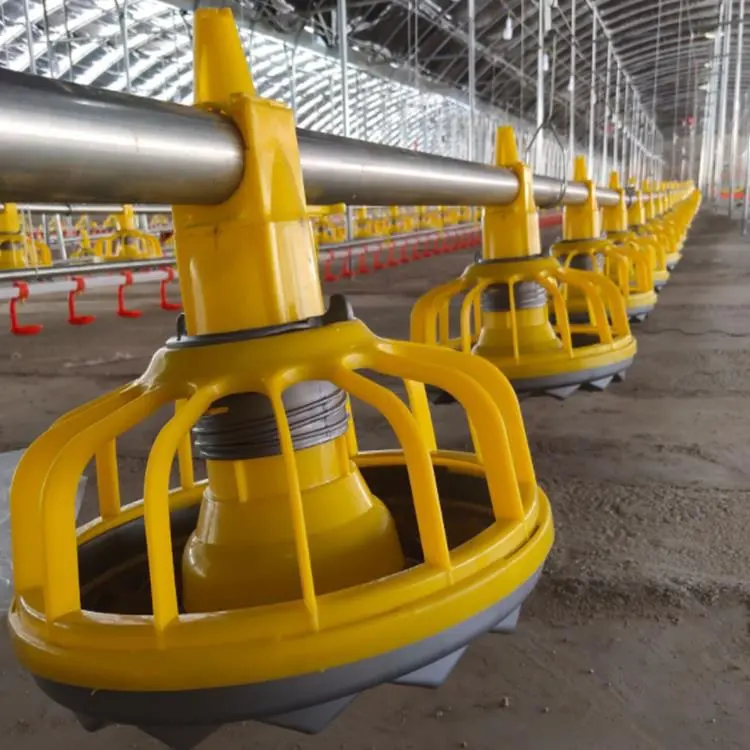

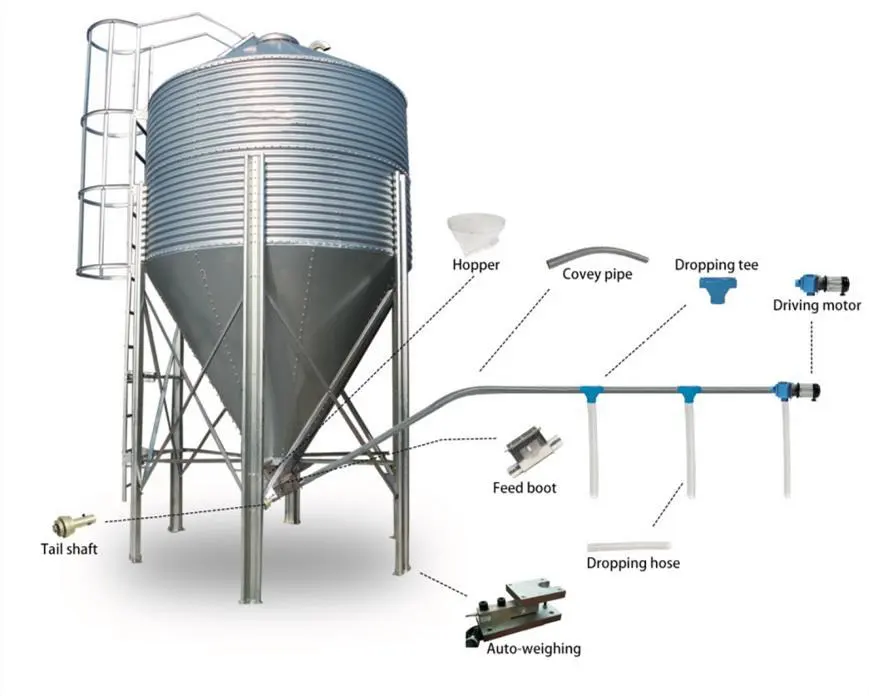

| Main parts | Silo or hopper, driving device (motor with split gearbox), auger, feeder pans, feed level sensor, hanging system (winch, pulley, steel wire, clamps) |
| Feed level sensor options | Imported: Germany IFM (2-wire) or Israel Agrologic (3-wire) |
| Motor | Die-cast aluminium alloy shell and flanges; split gearbox for quick replacement; 750 W, 380 V, 450 kg/h variant also listed |
| Motor power by line length (single phase / three phase) | 0-60 m: 0.37 / 0.37 kW; 60-80 m: 0.75 / 0.37 kW; 80-100 m: 0.75 / 0.75 kW; 100-120 m: 1.1 / 0.75 kW; 120-150 m: 1.5 / 1.1 kW |
| Hopper | Assembled hopper, at least 1.2 mm thick, 275 g galvanised sheet; 120 L hot-dip galvanised 1.5 mm version also listed |
| Auger | Described as imported from South Africa, high quality and durable |
| Suited to | Broilers, breeders and ducks (pan type and size chosen to the house and the way of raising) |
| Supplier | Qingdao Baojieyuan (BOJAY), China |
| Quoting | Price on request. Tell us the quantities and your house or farm size and we send a written quotation |
| Model | Pan Feeding System |
Need installation or a bulk quote? Talk to our team.
