Ruijie

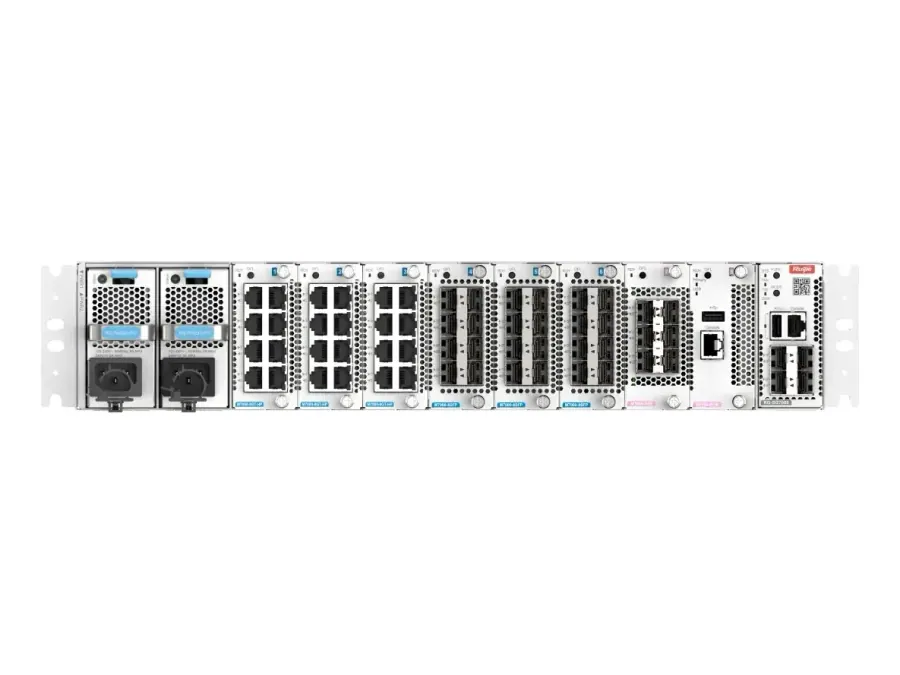

RG-SG7008L Fixed 10GE ODON Master Device Applied in ODON Solution
Model: RG-SG7008L
Pricing for this product is provided on request.
Request a quoteFixed 10GE ODON Master Device Applied in ODON Solution. Applicable to general education, enterprises, schools, and government offices, catering to the need for rapid and secure access, and efficient data transmission in small- and medium-sized campus networks. Highlights: ODON Solution: Redefining Small and Medium-Sized Campus Networks; ODON Master Device with Multi-Service Integration; Modular Design for Flexible Combination of Line Cards, Meeting Diverse Network Needs.
Specifications
| Port | 8 x 10/100/1000BASE-T RJ45 ports |
| Management ports | 1 x console port, 1 x USB port, compliant with the USB 2.0 standard |
| Switching capacity | 416 Gbps |
| Packet forwarding rate | 310 Mpps |
| Power module | RG-PA180I-F: Input: 90 V--290 V AC; Output power: 180 W (12 V/180 W) |
| Dimensions (W x D x H) | Chassis without cable management arm (2 U): 442 mm x 320 mm x 88 mm (17.40 in. x 12.60 in. x 3.46 in.); Chassis with cable management arm (3 U): 442 mm x 406 mm x 131.5 mm (17.40 in. x 15.98 in. x 5.18 in.) |
| Weight | Net weight: about 5.95 kg (13.12 lbs.) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Model | RG-SG7008L |
Need installation or a bulk quote? Talk to our team.
