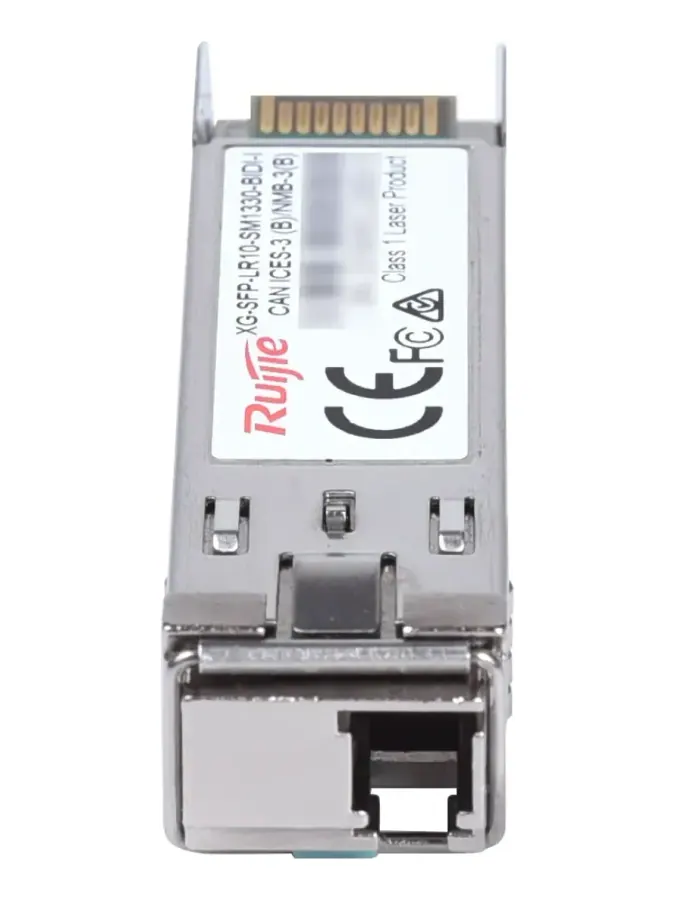

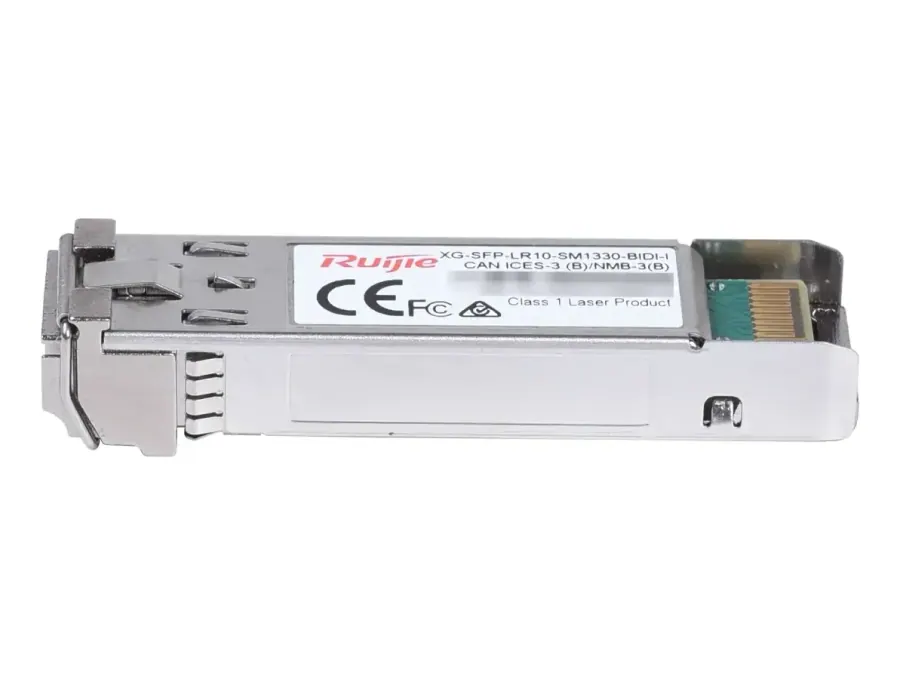

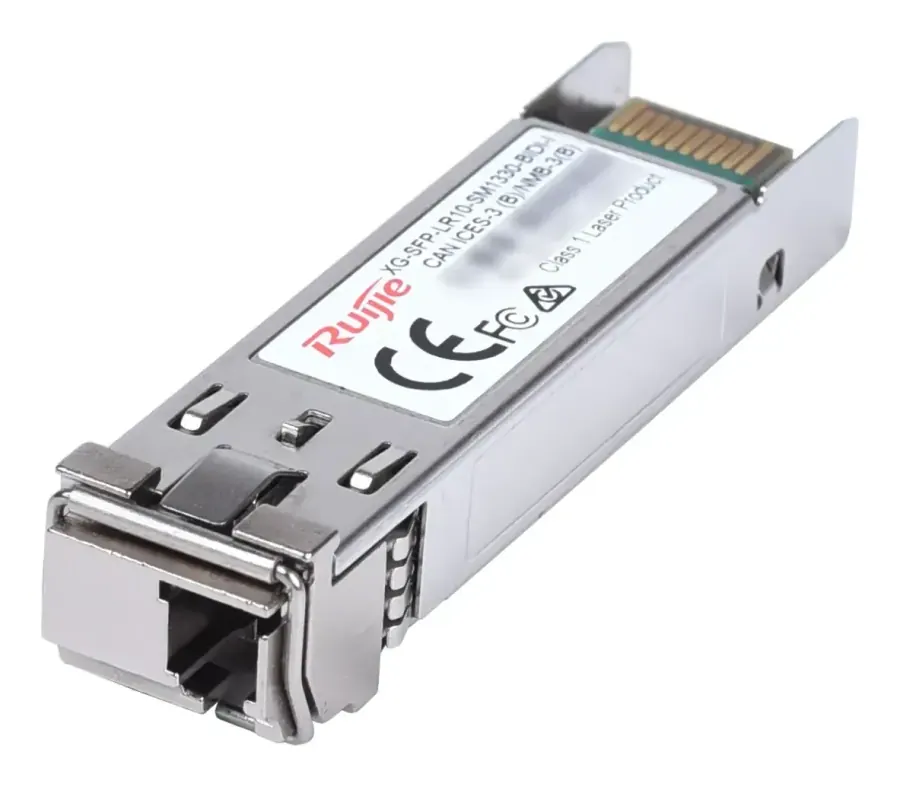

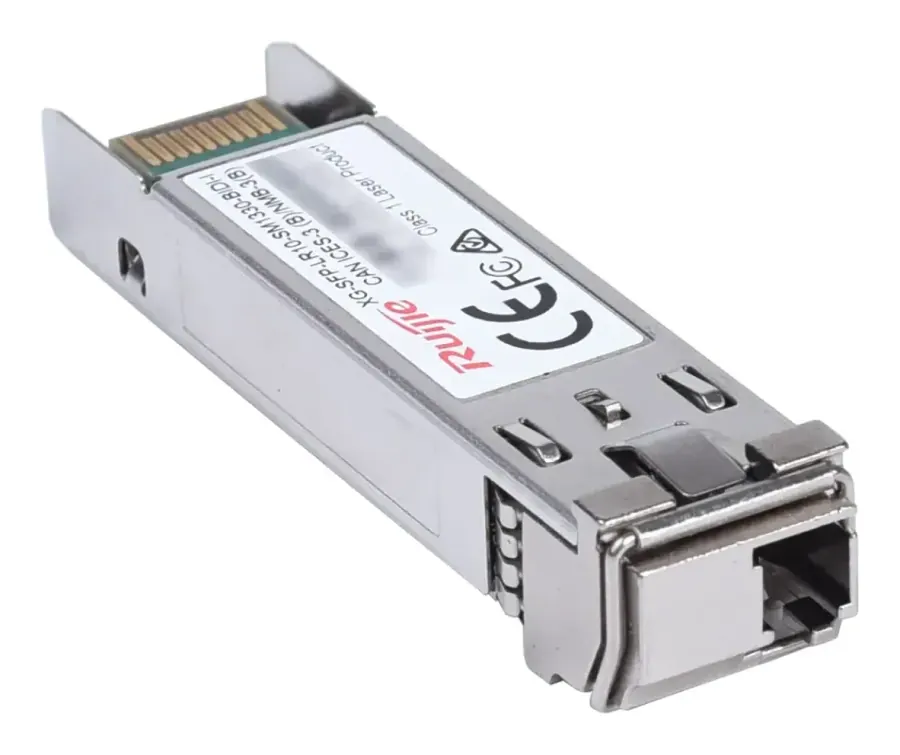

XG-SFP-LR10-SM1330-BIDI-I 10G BiDi SFP+ 1330nm-TX/1270nm-RX 10-km DOM Simplex LC SMF Transceiver Module
Model: XG-SFP-LR10-SM1330-BIDI-I
Pricing for this product is provided on request.
Request a quote10G BiDi SFP+ 1330nm-TX/1270nm-RX 10-km DOM Simplex LC SMF Transceiver Module. Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection. As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 10G optical modules.
Specifications
| Data rate | 10.3125 Gbps |
| Form factor | SFP+ |
| Connector type | BIDI LC |
| Cable type | SMF |
| Fiber end face finish type | Ultra Physical Contact (UPC) |
| Transmitter type | DFB |
| Receiver type | PIN |
| Reach | 10km (32,808.40.13 ft.) |
| Bit error ratio (BER) | 1.00E-12 |
| Data diagnosis-capable (DDM/DOM) | Yes |
| Power consumption | ≤ 1.5 W |
| Wavelength | 1330 nm TX; 1270 nm RX |
| Max. transmit power (AVG) | 0.5 dBm |
| Min. transmit power (AVG) | –8.2 dBm |
| Min. extinction ratio | ≥ 3.5 dB |
| Receive sensitivity (OMA) | < –14.4 dBm |
| Overload optical power (AVG) | 0.5 dBm |
| Operating temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating humidity | 10% RH to 90% RH |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Storage humidity | 10% RH to 90% RH |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
| Model | XG-SFP-LR10-SM1330-BIDI-I |
