Ruijie

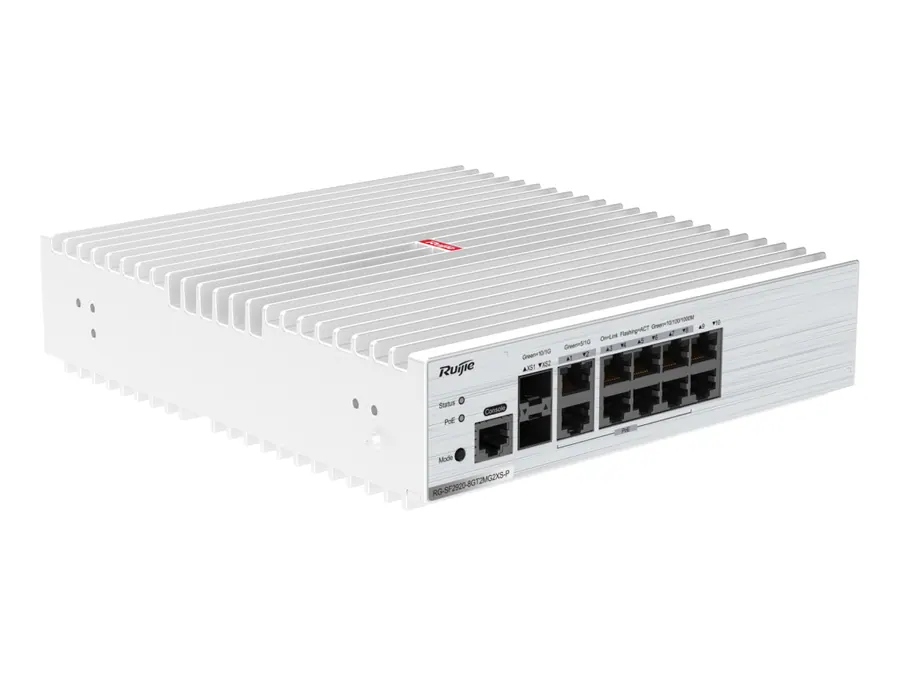

RG-SF2920-8GT2MG2XS-P 8-Port GE All-Optical PoE Switch, 2 x 5G Electrical Ports (Backward Compatible)
Model: RG-SF2920-8GT2MG2XS-P
Pricing for this product is provided on request.
Request a quote8-Port GE All-Optical PoE Switch, 2 x 5G Electrical Ports (Backward Compatible). Various port combinations, rate increase, installation in a concealed telecommunication box, recommended for indoor use, aesthetically pleasing design, and security.
Specifications

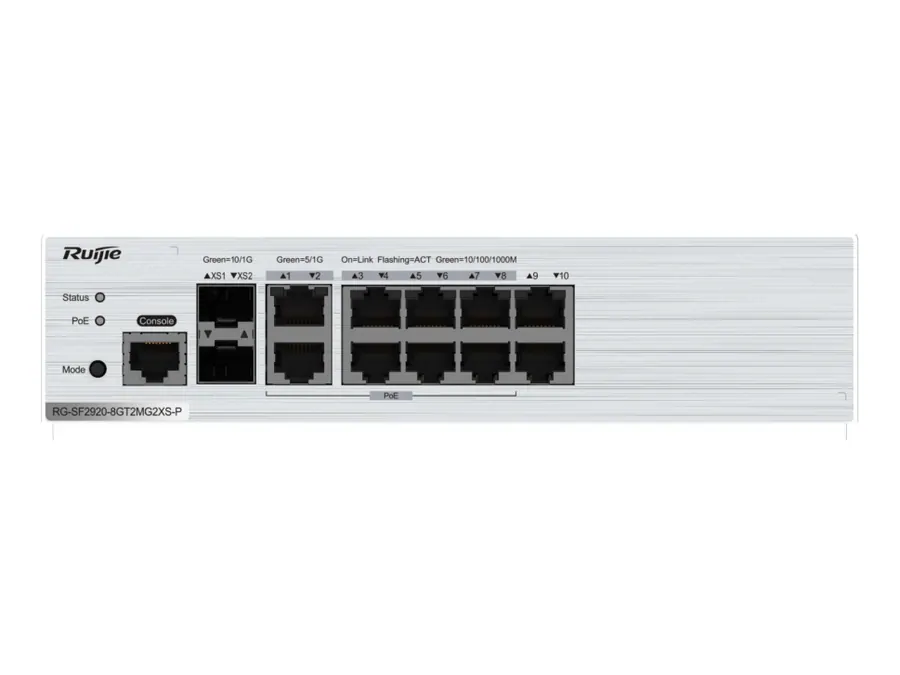

| Fixed service port | 8 x 10/100/1000BASE-T ports, ports 3 to 8 supporting PoE/PoE+; 2 x 1G/2.5G/5GBASE-T ports, ports 1 to 2 supporting PoE/PoE+; 2 x 1GE/10GE SFP+ ports |
| Fixed management port | 1 x RJ45 console port |
| System packet forwarding rate | 56.5 Mpps |
| System switching capacity | 76 Gbps |
| Unit dimensions (W x D x H) | 210 mm x 235 mm x 55 mm (8.27 in. x 9.25 in. x 2.17 in.) |
| Maximum power consumption | 25 W (without PoE load); 150 W (full PoE load) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Warranty period | 3 years |
| PoE port | Ports 1 to 8 support PoE/PoE+ (IEEE802.3af/at) power supply |
| Power supply | 1 x fixed power module |
| Unit weight | 2.33 kg (5.14 lbs) |
| Rack height | 1 RU |
| Operating temperature | ELV box: 0 to 40℃ (–32°F to +104°F); Workbench/Wall: 0 to 40℃ (–32°F to +104°F); Rack: 0 to 45℃ (–32°F to +113°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 300,000 hours (about 34 years) |
| Model | RG-SF2920-8GT2MG2XS-P |
Need installation or a bulk quote? Talk to our team.
