Ruijie

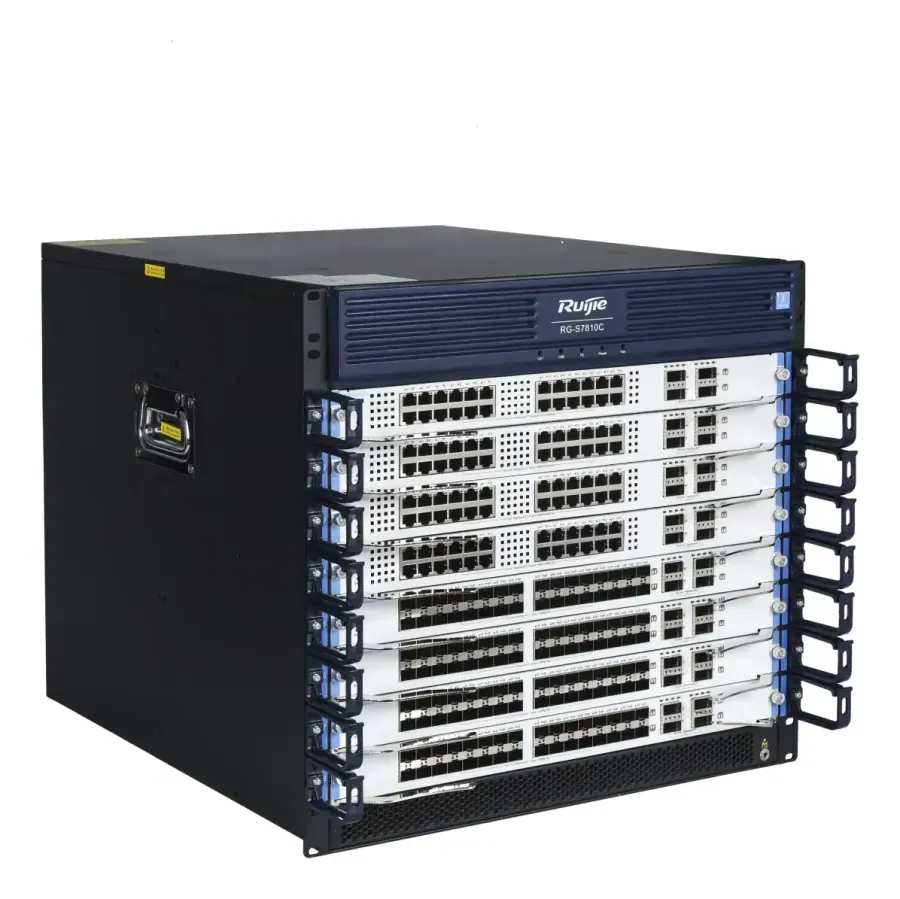

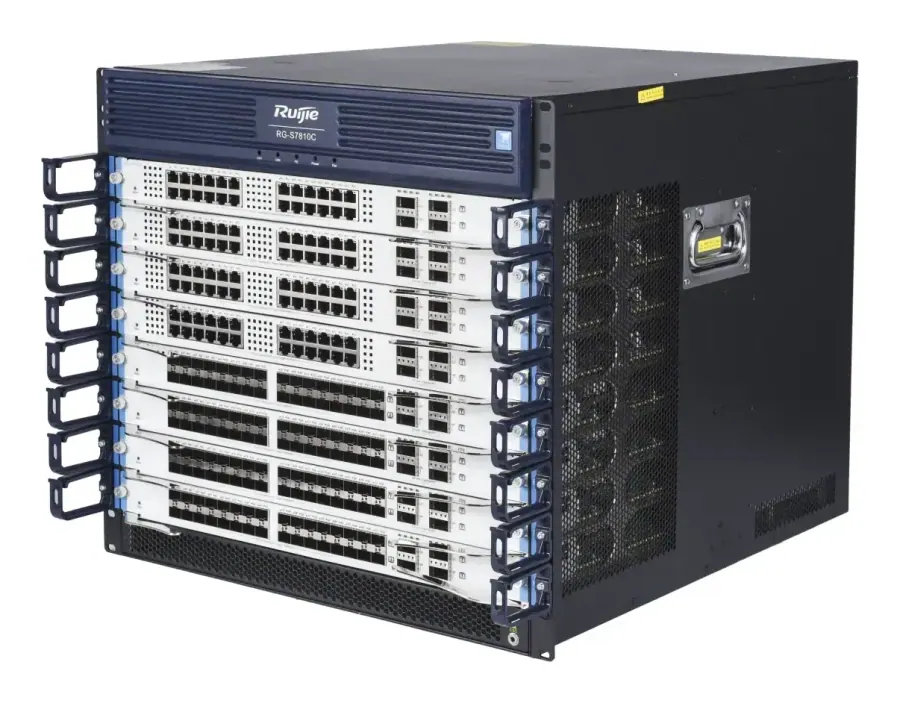

RG-S7810C 10 RU Modular Campus Core Switch
Model: RG-S7810C
Pricing for this product is provided on request.
Request a quote10 RU Modular Campus Core Switch. Can be deployed in data centers, metropolis area networks, campus networks, or integrated scenarios of data centers and campus networks. Highlights: Orthogonal Clos architecture, providing a backplane-free design and ensuring non-blocking packet forwarding and high-speed transmission without packet loss; Security defense policies, ensuring network robustness; VSU, delivering flexible networking capabilities and high performance.
Specifications
| Module slot | 2 x supervisor module slots; 8 x line card slots (slot 7 does not support the EB line card); 2 x switch fabric module slots; 4 x power module slots; 2 x fan module slots |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| System packet forwarding rate | 12000 Mpps |
| System switching capacity | 16000 Gbps |
| Unit dimensions (W x D x H) | 442.5 mm x 560.0 mm x 442.0 mm (17.42 in. x 22.05 in. x 17.40 in.) |
| Unit weight | 43.60 kg (96.01 lbs, empty chassis with 2 fan modules) |
| Fixed service port | 2 x PoE out ports |
| Module management port | M7810C-CM: 1 x RJ45 console port; 1 x RJ45 MGMT port; M7810C-CM-F: 1 x RJ45 console port *2; 1 x mini USB console port *2; 1 x RJ45 MGMT port |
| PoE output power | Each PoE out port provides up to 1,440 W of power |
| Power module | RG-PA600I; RG-PA1600I |
| Rack height | 10 RU |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 342,000 hours (about 39 years) |
| Model | RG-S7810C |
Need installation or a bulk quote? Talk to our team.
