RG-S6990-64OC2XS High-Density 64-Port 800GE Fixed Switch for AIGC Intelligent Computing
Model: RG-S6990-64OC2XS
Pricing for this product is provided on request.
Request a quoteHigh-Density 64-Port 800GE Fixed Switch for AIGC Intelligent Computing. High-speed, high-density core switch for data centers, delivering 64 x 800GE ports in a compact 2 RU form factor.
Specifications

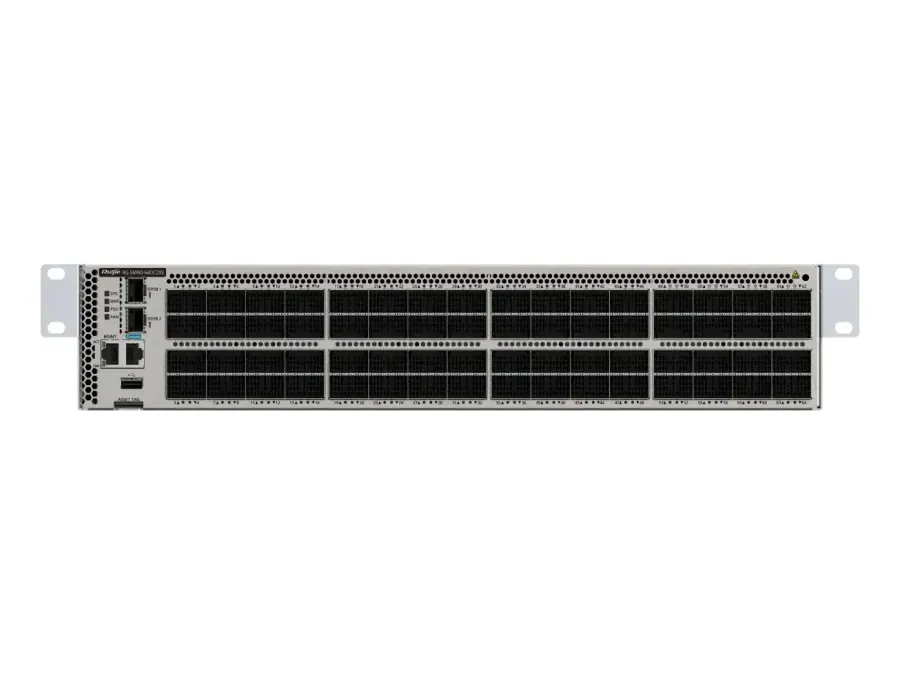

| Service Port | 64 x 800G OSFP ports, each supporting 1-to-2 or 1-to-4 breakout; 2 x 1G/10G/25G SFP28 ports |
| Management Port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Switching Capacity | 102.4 Tbps |
| Packet Forwarding Rate | 21000 Mpps |
| Power Consumption | Maximum power consumption: 2814 W; Typical power consumption: 2010 W; Static power consumption: 352 W |
| Dimensions (W x D x H) | 440 mm x 760 mm x 86.1 mm (17.32 in. x 29.92 in. x 3.39 in.) |

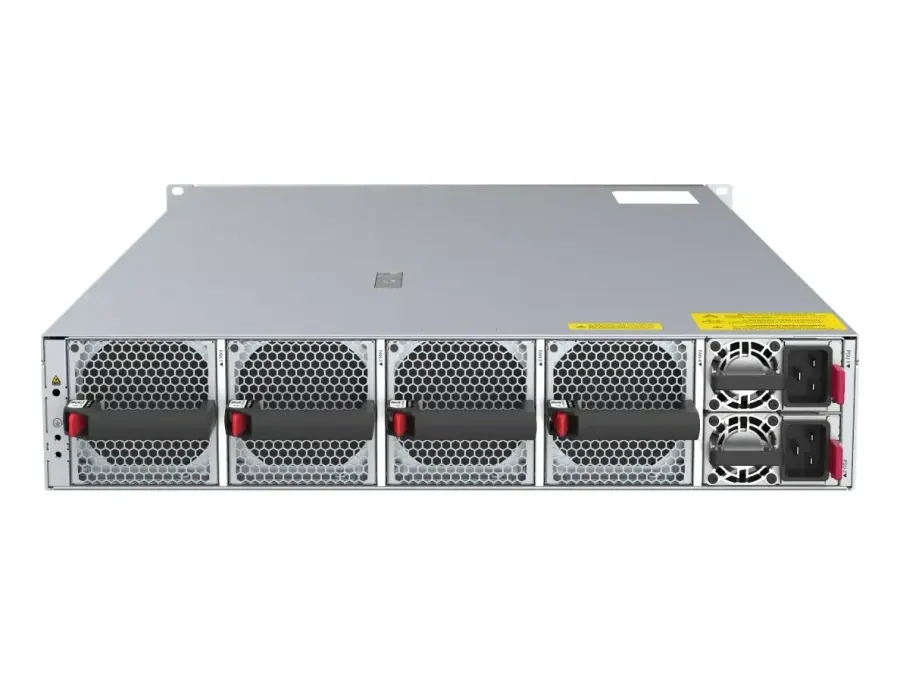

| Weight | 26 kg (57.32 lbs.) (A chassis installed with two power modules and four fan modules) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Model | RG-S6990-64OC2XS |
