Ruijie

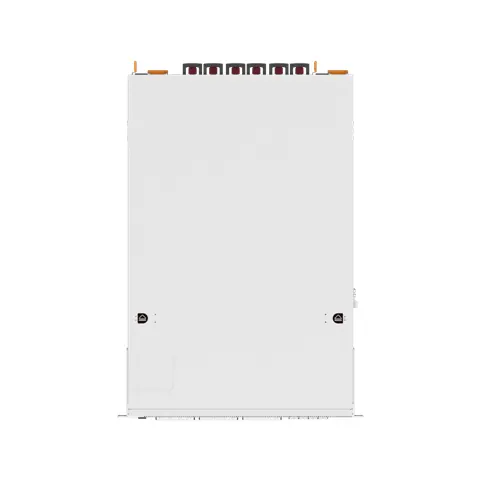

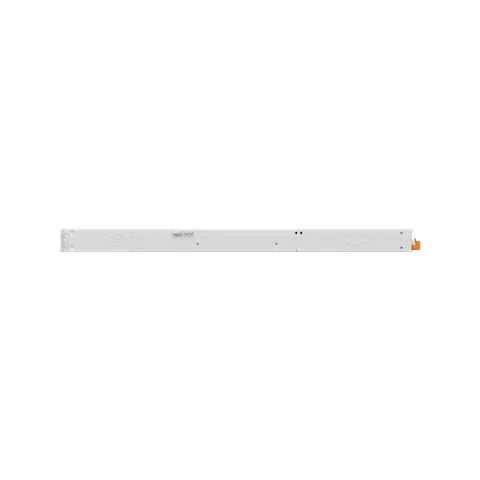

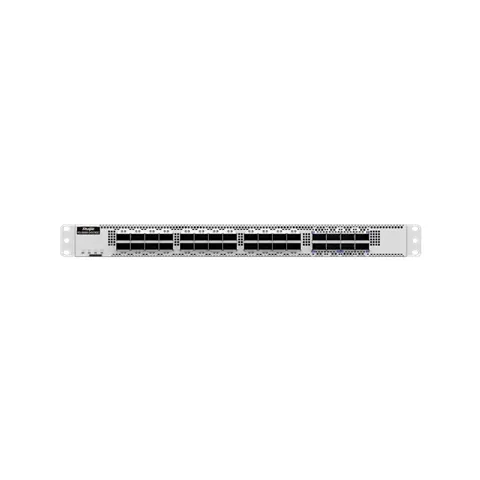

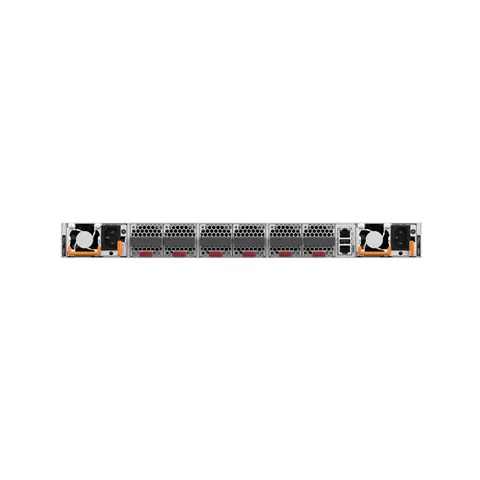

RG-S6580-24DC8QC Next-Generation Data Center 200GE Fixed Access Switch, 400GE Uplink (Backward Compatible with 100GE)
Model: RG-S6580-24DC8QC
Pricing for this product is provided on request.
Request a quoteNext-Generation Data Center 200GE Fixed Access Switch, 400GE Uplink (Backward Compatible with 100GE). 200GE access switch (one 200GE port split into two 100GE ports), and 400GE ZR/ZR+ optical modules for interconnection at the maximum distance of 120 km. Data center 200GE access switch with 1 RU, various ports, improved data forwarding capability, and flexible scenario deployment200GE/100GE server access and evolution to 100GE/400GE data center networks.
Specifications
| Switching capacity | 16.0 Tbps |
| Packet forwarding rate | 2680 Mpps |
| Service port | 24 x 40G/100G/200G QSFP56 ports; 8 x 100G/400G QSFP-DD ports |
| Dimensions (W x D x H) | 442 mm x 670 mm x 43.6 mm (17.40 in. x 26.38 in. x 1.72 in.) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Power consumption | Maximum power consumption: 850 W; Typical power consumption: 700 W; Static power consumption: 300 W |
| Unit weight | 11 kg (24.25 lbs., a chassis with two power modules and six fan modules) |
| Rack height | 1 RU |
| Model | RG-S6580-24DC8QC |
Need installation or a bulk quote? Talk to our team.
