Ruijie

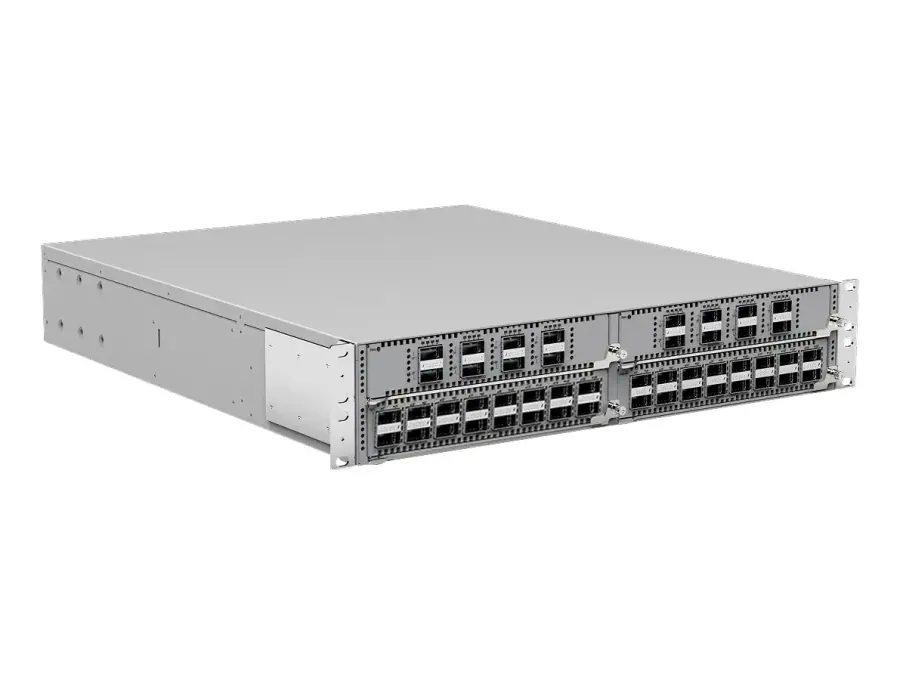

RG-S6510-4C 100GE Data Center Access Switch
Model: RG-S6510-4C
Pricing for this product is provided on request.
Request a quote100GE Data Center Access Switch. M-LAG/VSU/de-stacking for higher availability, PFC/ECN-based lossless RDMA network with high performance. 100GE high-density modular access switch with 10G/25G/100GE downlink ports 96 x 25GE ports and 8 x 100GE ports, 32 x 100GE ports, housed in a 2 RU enclosure for adaptation to different scenarios.
Specifications
| Switching capacity | 6.4 Tbps |
| Packet forwarding rate | 2030 Mpps |
| Module Slot | 4 x expansion module slots; 2 x power module slots; 3 x fan module slots |
| Dimensions(W x D x H) | 442 mm x 520 mm x 86 mm (17.40 in. x 20.47 in. x 3.39 in.) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Power consumption | Maximum power consumption: 600 W; Typical power consumption: 455 W; Static power consumption: 202 W |
| Unit weight | 14 kg (30.86 lbs., a chassis with two power modules and three fan modules) |
| Rack height | 2 RU |
| Model | RG-S6510-4C |
Need installation or a bulk quote? Talk to our team.
