Ruijie

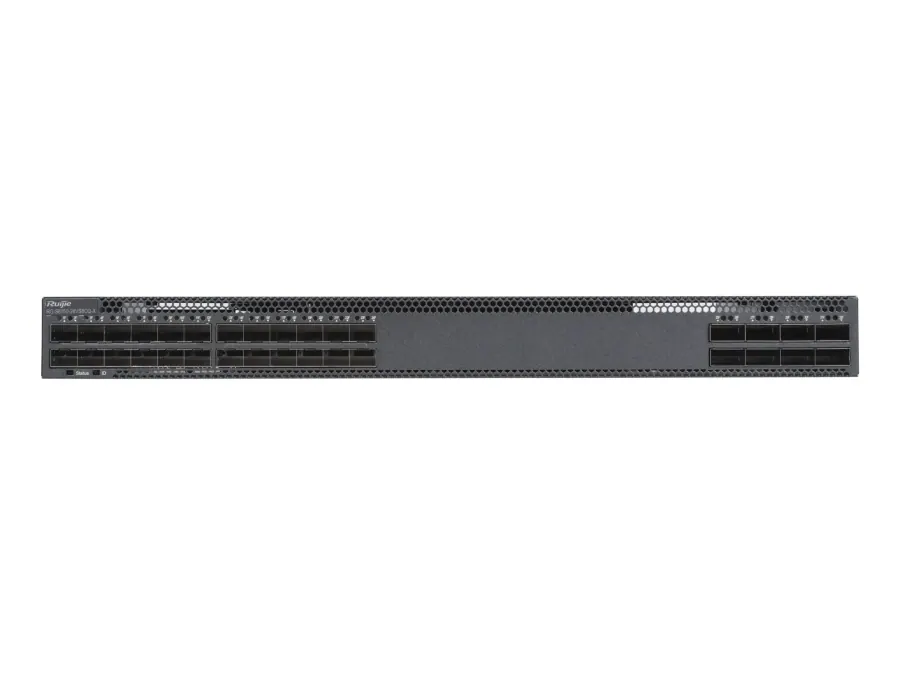

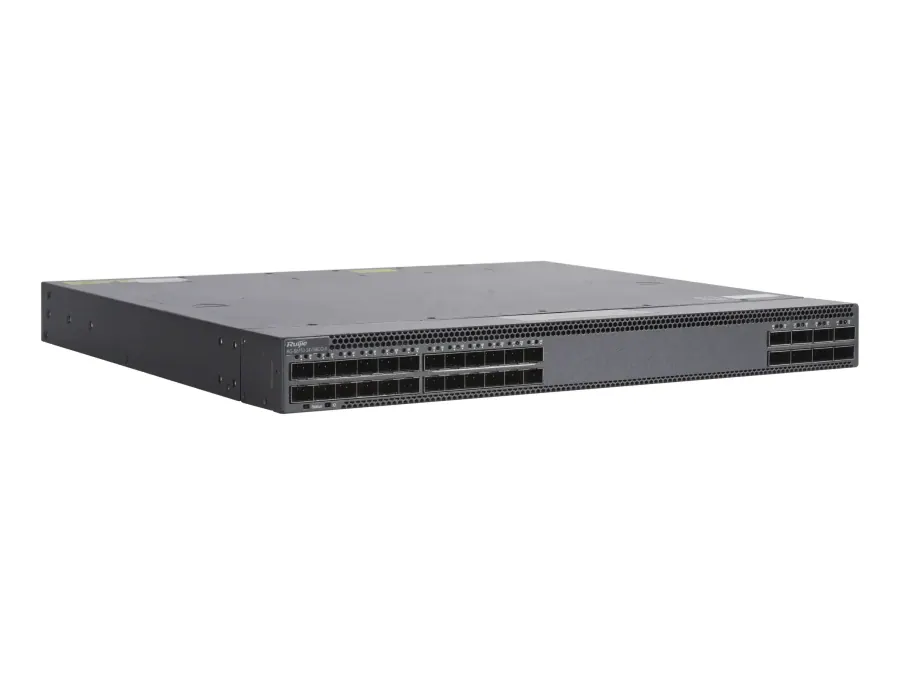

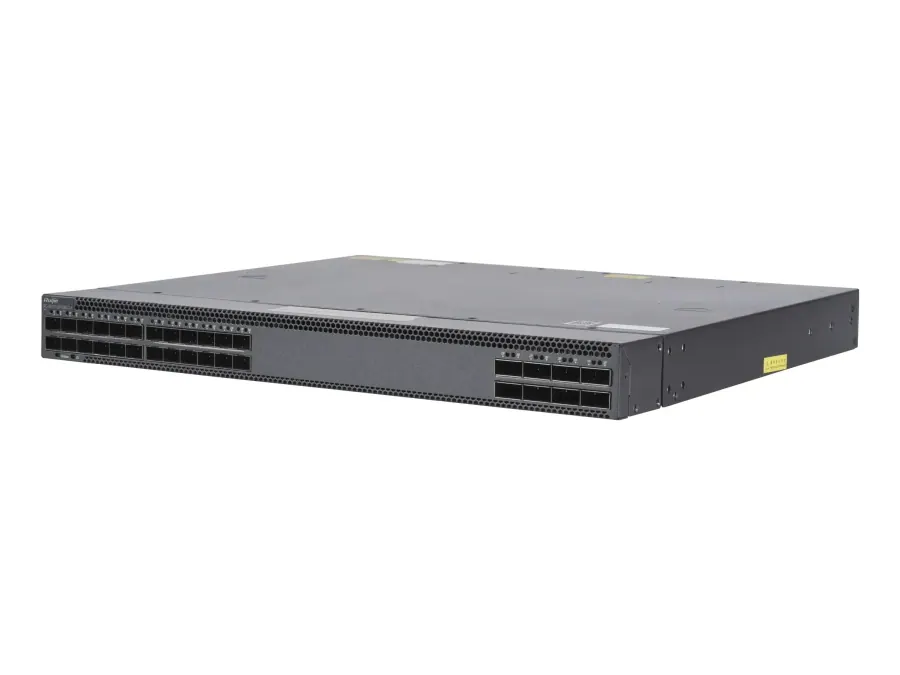

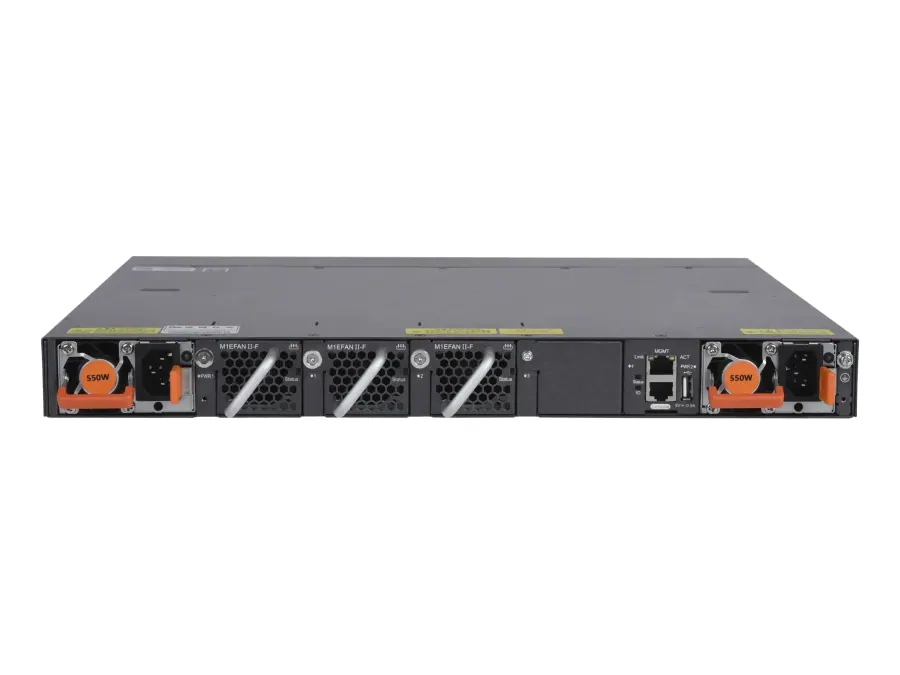

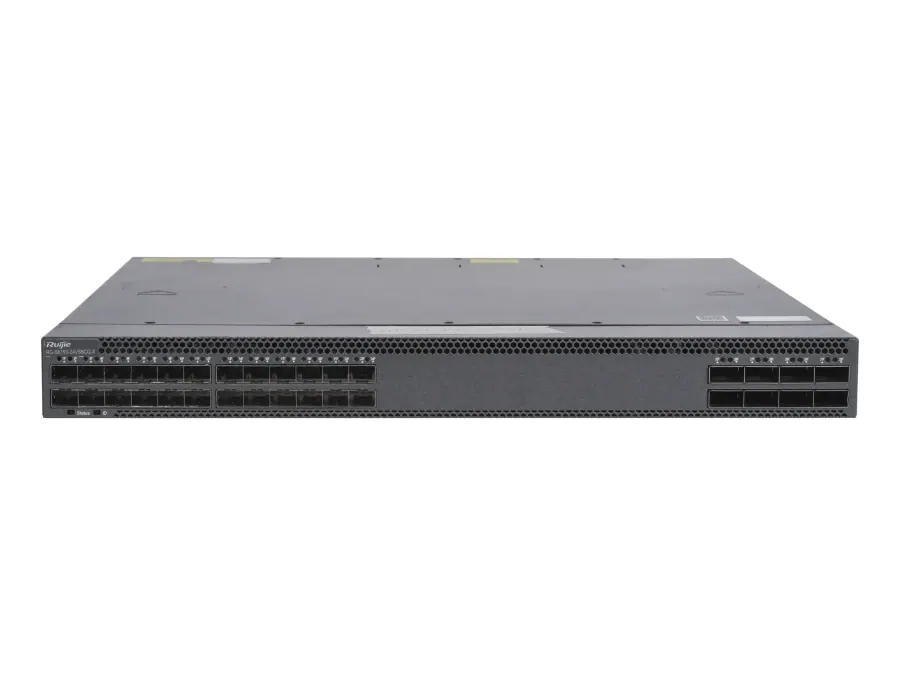

RG-S6150-24VS8CQ-X 24-Port 25GE All-Optical Layer 3 Managed Core & Aggregation Switch, 100G Uplink
Model: RG-S6150-24VS8CQ-X
Pricing for this product is provided on request.
Request a quote24-Port 25GE All-Optical Layer 3 Managed Core & Aggregation Switch, 100G Uplink. Core or aggregation switch for small and medium-sized networks, supporting the smooth evolution to 25G campus networks. The VSU connects to peripherals through an aggregate link, realizing service switching in milliseconds upon a failure.
Specifications
| Fixed service port | 24 x 1GE/2.5GE/10GE/25GE SFP28 ports (25GE capable with a license); 8 x 40GE/100GE QSFP28 ports (supporting 4 x 10GE/4 x 25GE) |
| Fixed management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| System switching capacity | 2.8Tbps |
| Cooling mode | Fan cooling |
| Maximum power consumption | 270 W |
| Link aggregation | Supported |
| Unit dimensions (W x D x H) | 442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| System packet forwarding rate | 1011.84 Mpps |
| Power module | RG-PA550I II-F |
| Unit weight | 8.5 kg (18.74 lbs, with 4 fan modules) |
| Rack height | 1 RU |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 200,000 hours (about 22 years) |
| Model | RG-S6150-24VS8CQ-X |
Need installation or a bulk quote? Talk to our team.
