Ruijie

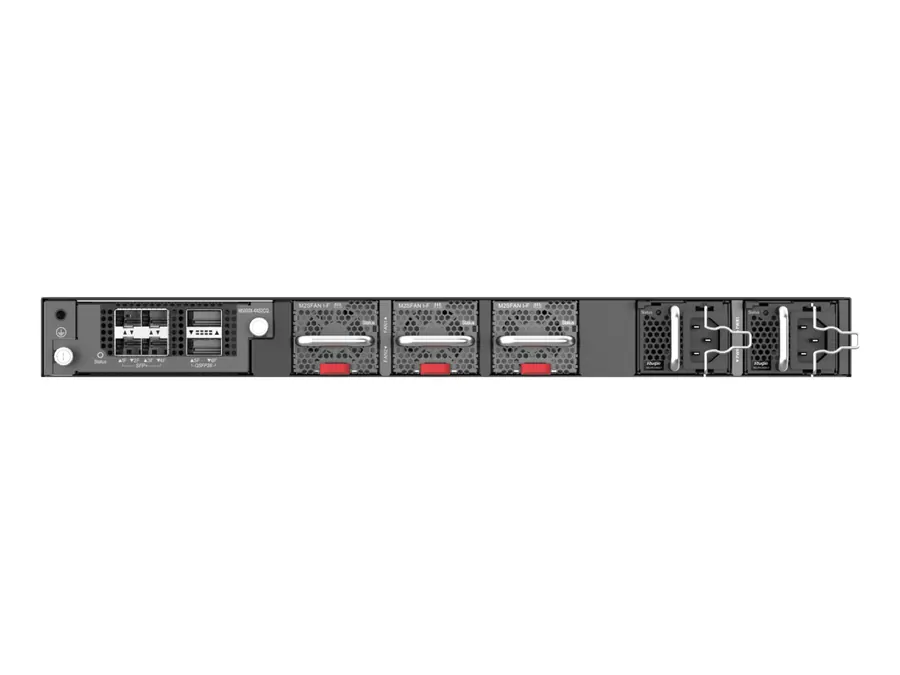

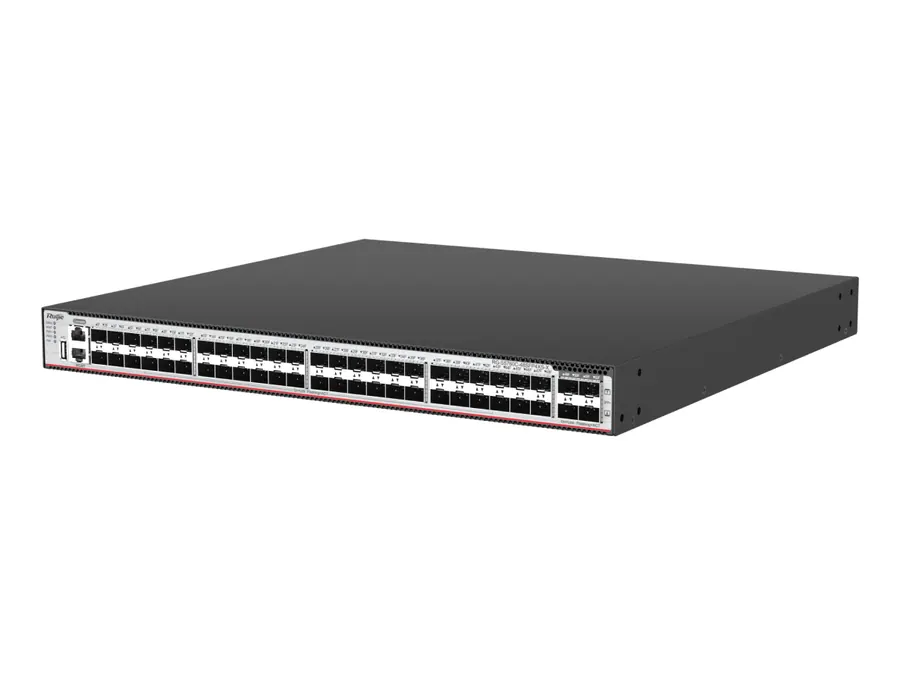

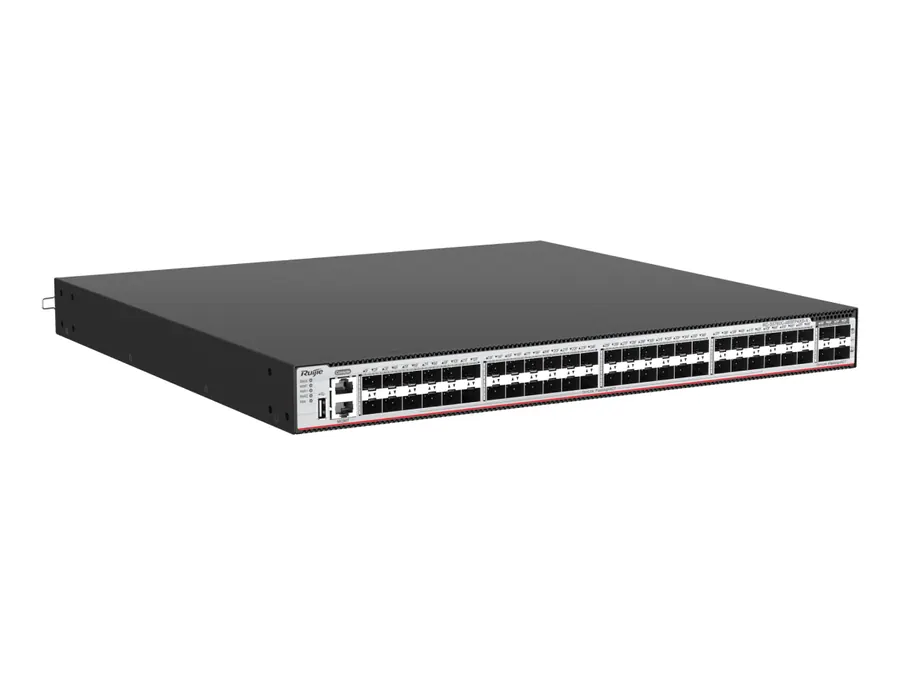

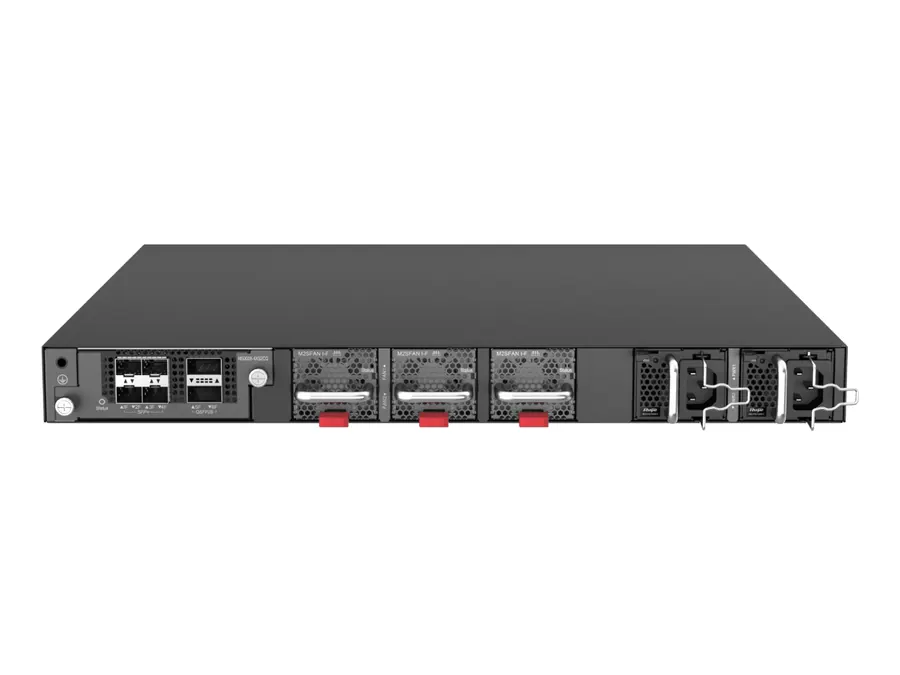

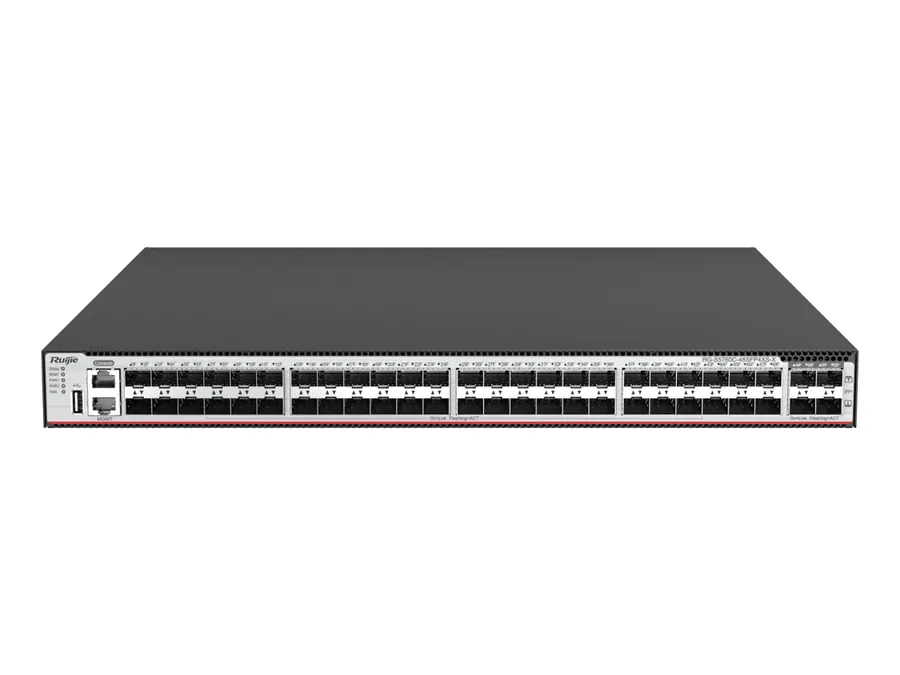

RG-S5760C-48SFP4XS-X 48-Port Layer 3 Enterprise-Class Core or Aggregation Switch, 4-Port 10GE Uplink
Model: RG-S5760C-48SFP4XS-X
Pricing for this product is provided on request.
Request a quote48-Port Layer 3 Enterprise-Class Core or Aggregation Switch, 4-Port 10GE Uplink. Aggregation switch for large-sized networks, or core switch for small and medium-sized networks. Aggregation switch for small and medium-sized campus networks, with 4 x 1GE/10GE SFP+ uplink ports for high-speed data transmission; 48 x 1GE SFP ports, providing high-speed network experience for long-distance services.
Specifications
| Fixed service port | 48 x 1GE SFP ports; 4 x 1GE/10GE SFP+ ports |
| Fixed management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Fan | 3 x pluggable fan modules |
| System switching capacity | 787 Gbps |
| System packet forwarding rate | 586 Mpps |
| Unit dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Warranty duration | 3 years |
| PoE port | Ports 1 to 48 support PoE/PoE+ (IEEE 802.3af/at) power supply |
| Power module | RG-PA150IB-F; RG-PD150IB-F |
| Maximum power consumption | 105 W (excluding expansion modules); 125 W (including expansion modules) |
| Unit weight | 5.3 kg (11.68 lbs) |
| Rack height | 1 RU |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 768,960 hours (about 90 years) |
| Model | RG-S5760C-48SFP4XS-X |
Need installation or a bulk quote? Talk to our team.
