Ruijie

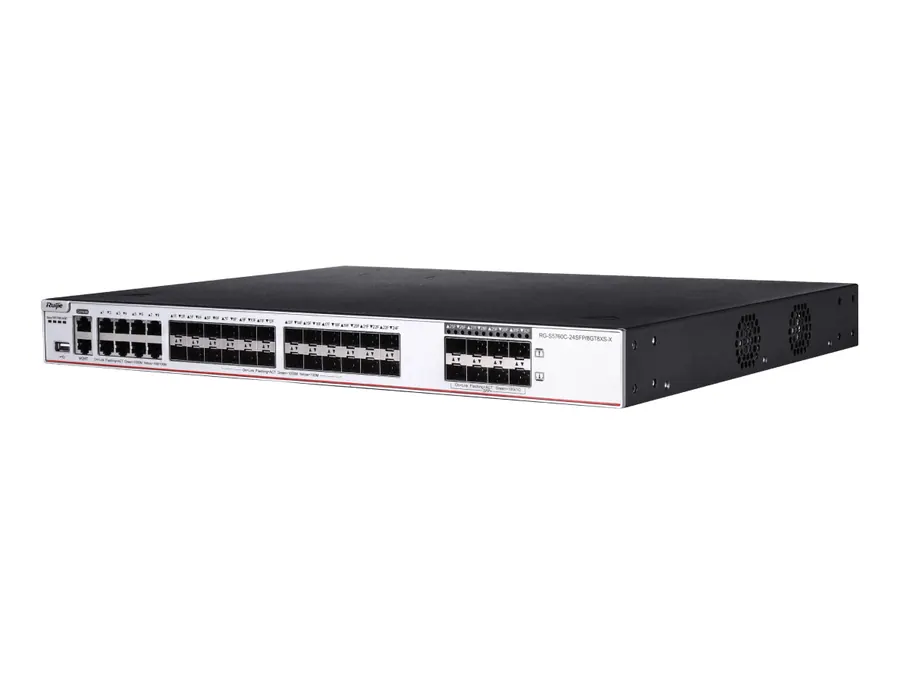

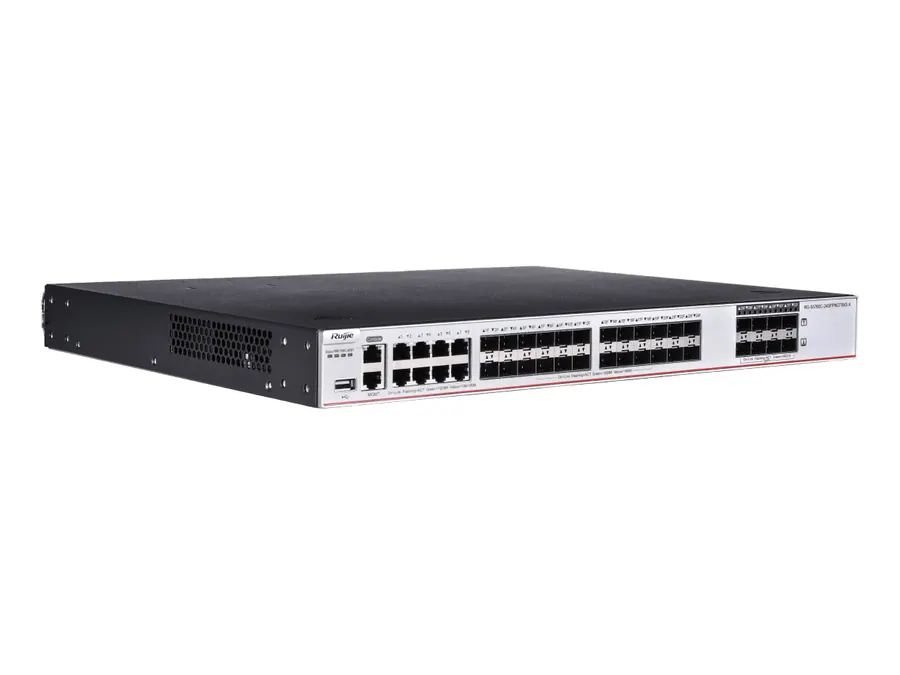

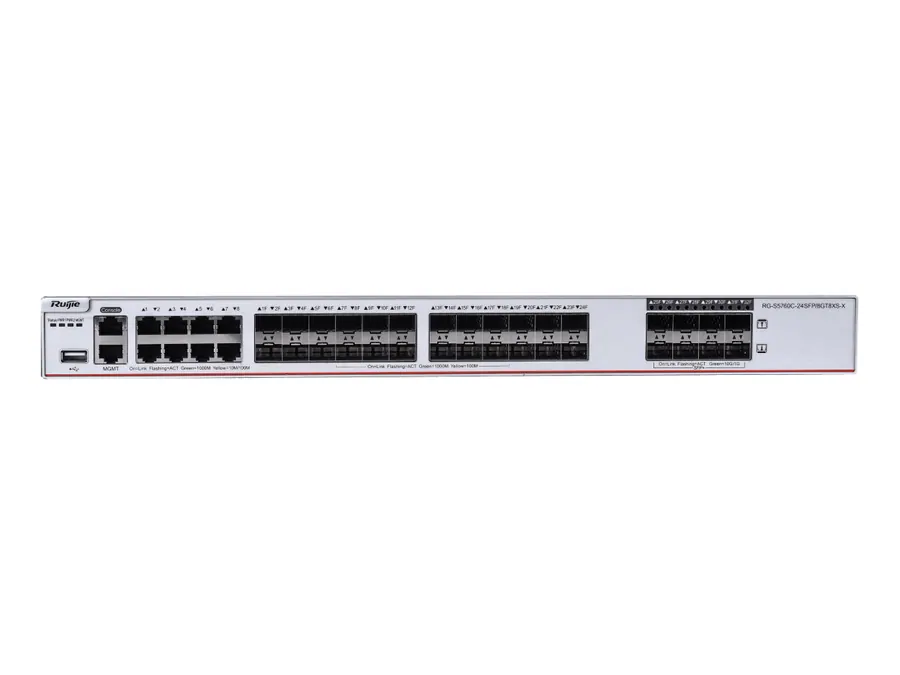

RG-S5760C-24SFP/8GT8XS-X 24-Port Layer 3 Enterprise-Class Core or Aggregation Switch (with Eight Combo Ports), 8-Port 10GE Uplink
Model: RG-S5760C-24SFP/8GT8XS-X
Pricing for this product is provided on request.
Request a quote24-Port Layer 3 Enterprise-Class Core or Aggregation Switch (with Eight Combo Ports), 8-Port 10GE Uplink. Aggregation switch for large-sized networks, or core switch for small and medium-sized networks. Core switch for small and medium-sized enterprise networks, with high scalability, efficiency, and manageability, and device-level and link-level reliabilities for stable connectivity.
Specifications
| Fixed service port | 24 x 1GE SFP ports; Ports 1 to 16 support the rate of 100Mbps, ports 17 to 24 do not support the rate of 100Mbps; Ports 1 to 8 are 10/100/1000BASE-T combo ports; 8 x 1GE/10GE SFP+ ports |
| Fixed management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Fan | 2 x fixed fan modules |
| System switching capacity | 826 Gbps |
| System packet forwarding rate | 614 Mpps |
| Unit dimensions (W x D x H) | 440 mm x 340 mm x 44 mm (17.32 in. x 13.39 in. x 1.73 in.) |
| Operating temperature | 0°C to 45°C (32°F to 113°F), without expansion modules; 0ºC to 40ºC (32°F to 104°F), with expansion modules |
| Warranty duration | 3 years |
| PoE port | Ports 1 to 48 support PoE/PoE+ (IEEE 802.3af/at) power supply |
| Power module | RG-PA150IB-F; RG-PD150IB-F |
| Maximum power consumption | 77 W (excluding expansion modules); 102 W (including expansion modules) |
| Unit weight | 4.3 kg (9.48 lbs) |
| Rack height | 1 RU |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 803,136 hours (about 94 years) |
| Model | RG-S5760C-24SFP/8GT8XS-X |
