Ruijie

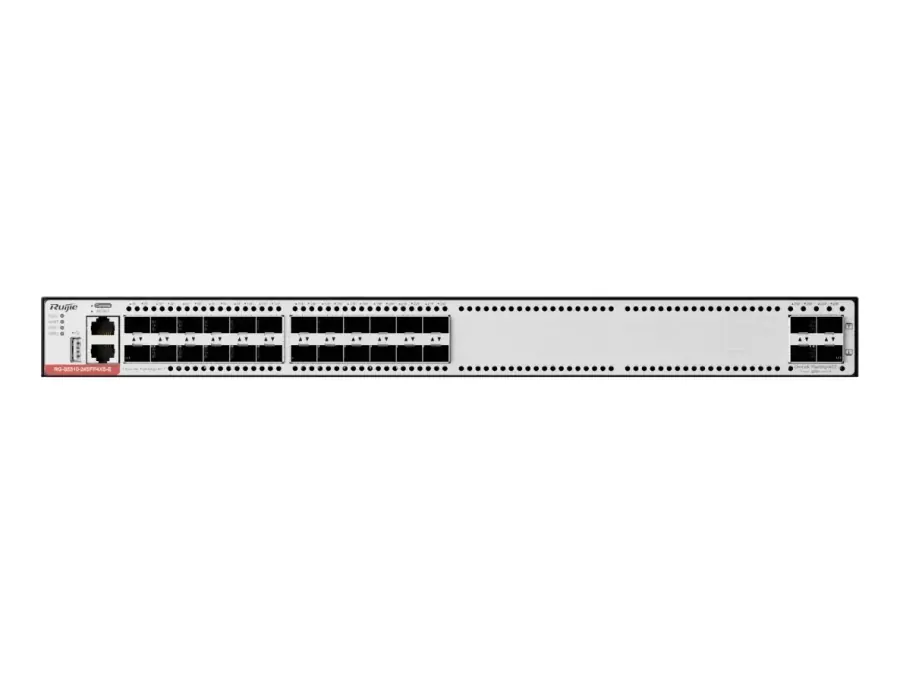

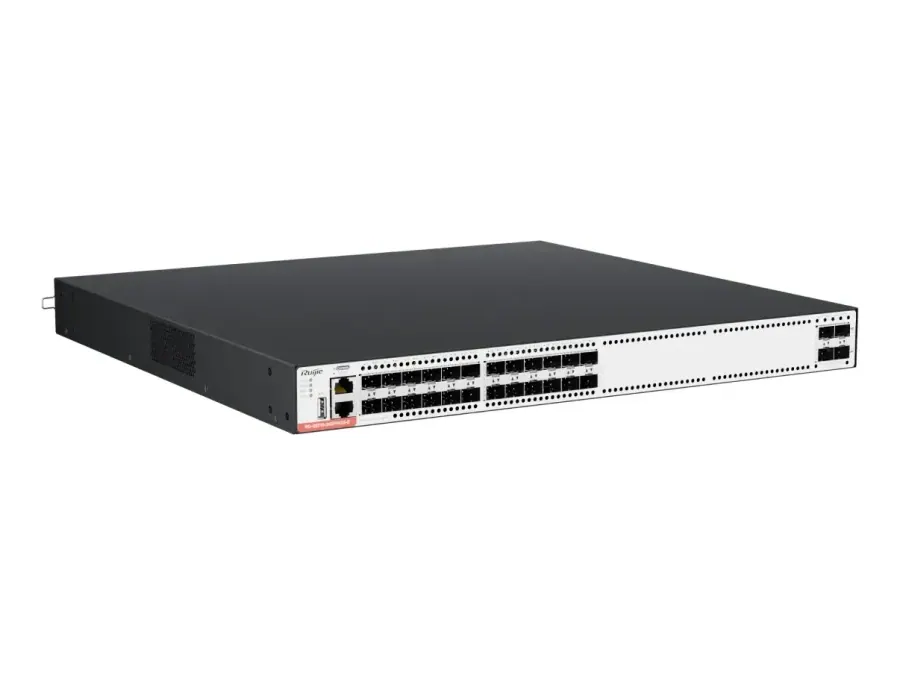

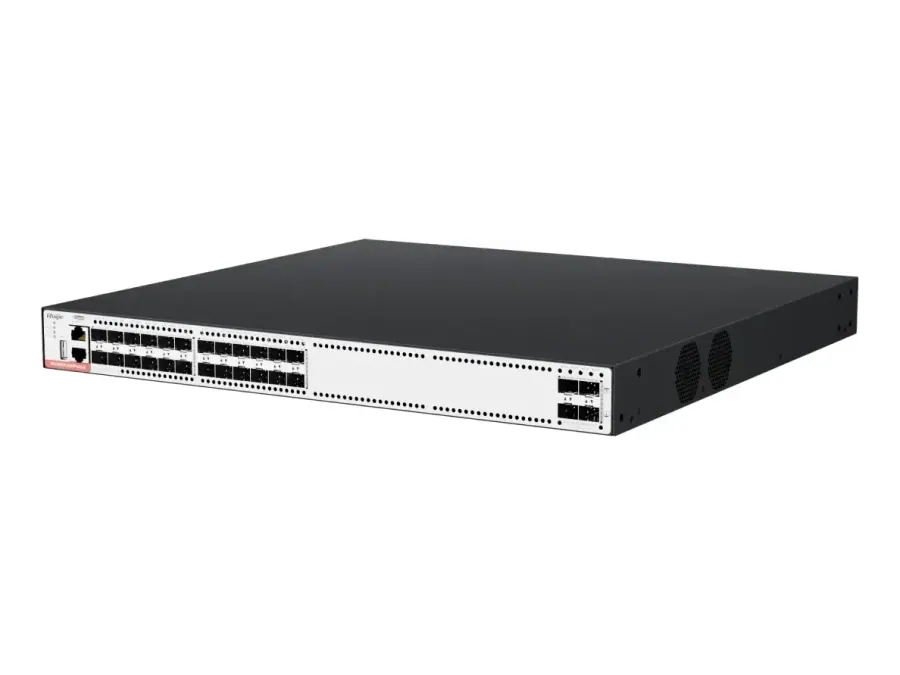

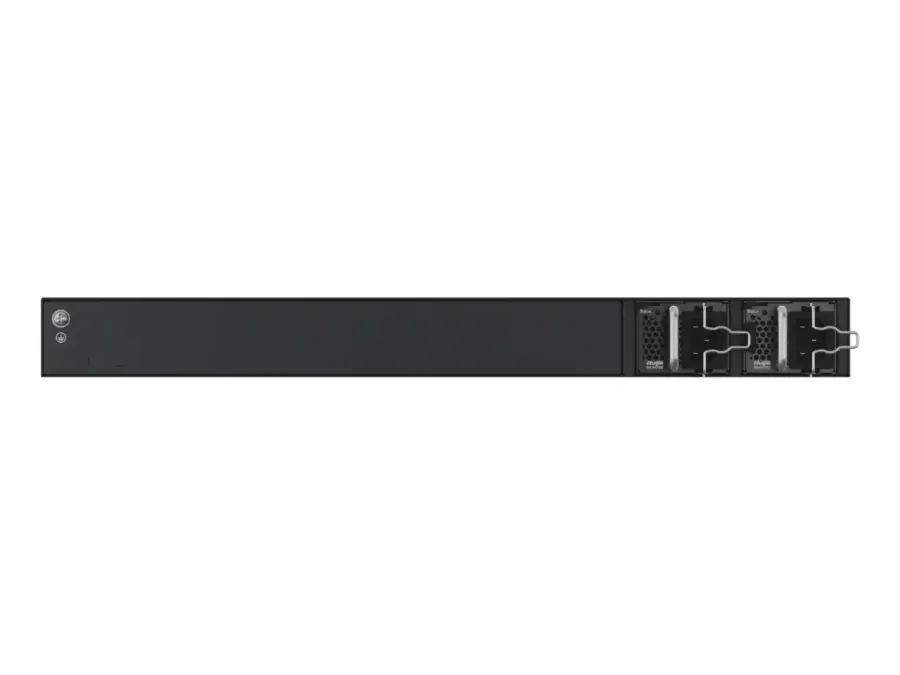

RG-S5310-24SFP4XS-E 24-Port GE Optical Layer 3 Managed Access Switch
Model: RG-S5310-24SFP4XS-E
Pricing for this product is provided on request.
Request a quote24-Port GE Optical Layer 3 Managed Access Switch. Full Gigabit Ethernet Access Switch for Large-sized Networks. Highlights: VSU virtualization, flexible networking and high performance; QoS policy to achieve flexible allocation of network resources; Network security policies and real-time monitoring, delivering enhanced network robustness.
Specifications
| Fixed service port | 24 x 1GE SPF ports; 4 x 1GE/10GE SFP+ ports |
| Fixed management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| System switching capacity | 154 Gbps |
| System packet forwarding rate | 115 Mpps |
| Maximum power consumption | 85 W |
| Unit dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Warranty duration | 3 years |
| Power module | RG-PA150IB-F; RG-PD150IB-F; RG-PA70IB |
| Unit weight | 4.2 kg; (9.26 lbs) |
| Rack height | 1 RU |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 306,600 hours (about 35 years, dual power modules); 183,960 hours (about 21 years, single power module) |
| Model | RG-S5310-24SFP4XS-E |
Need installation or a bulk quote? Talk to our team.
