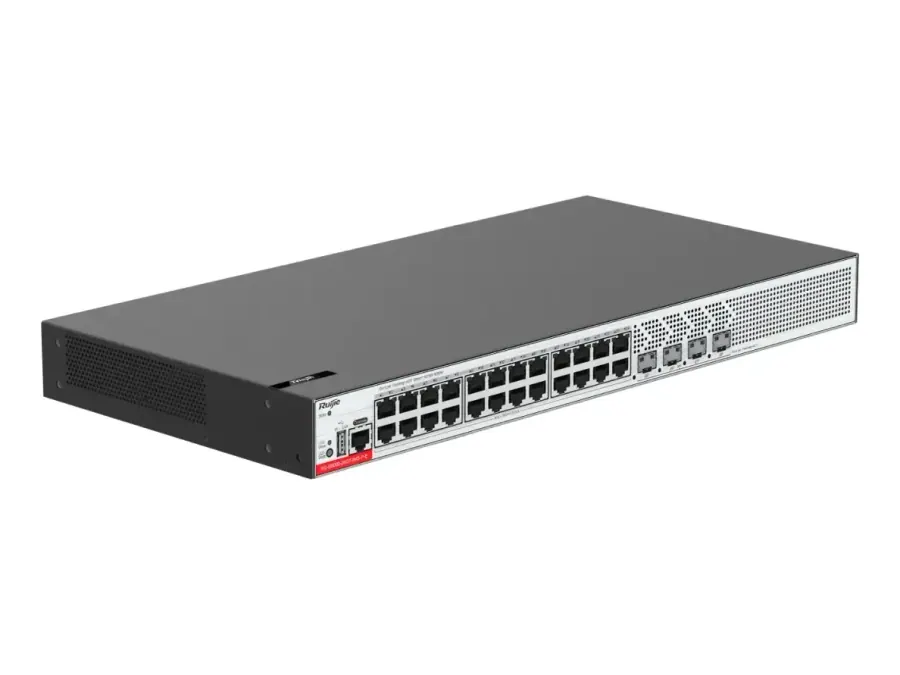

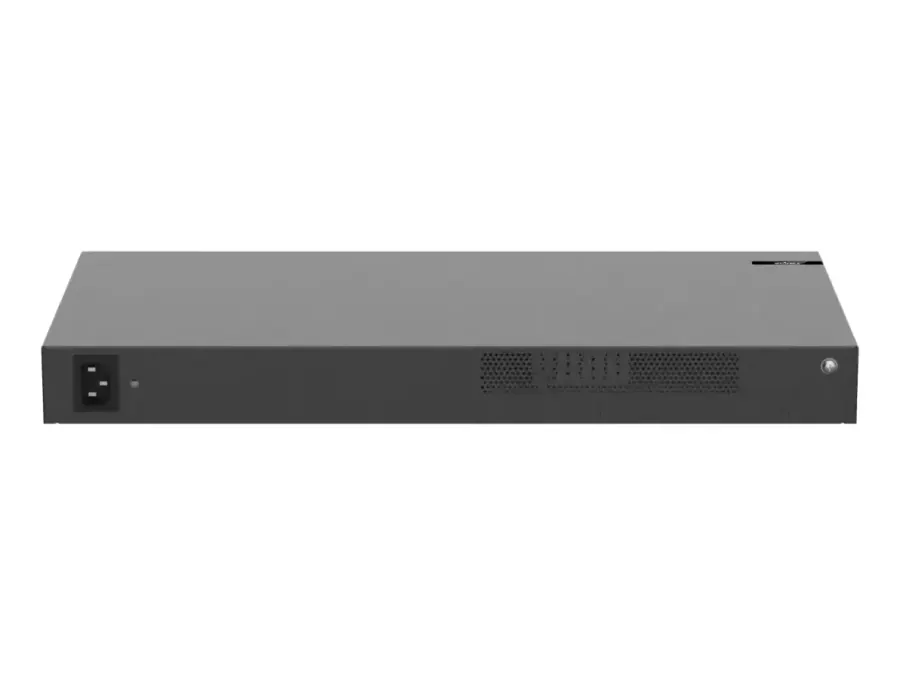

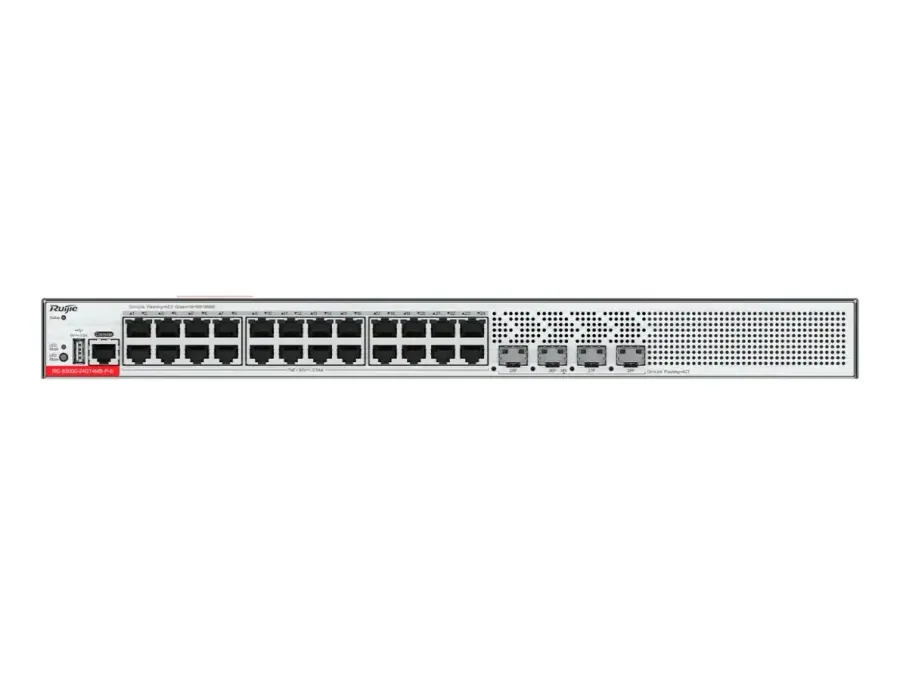

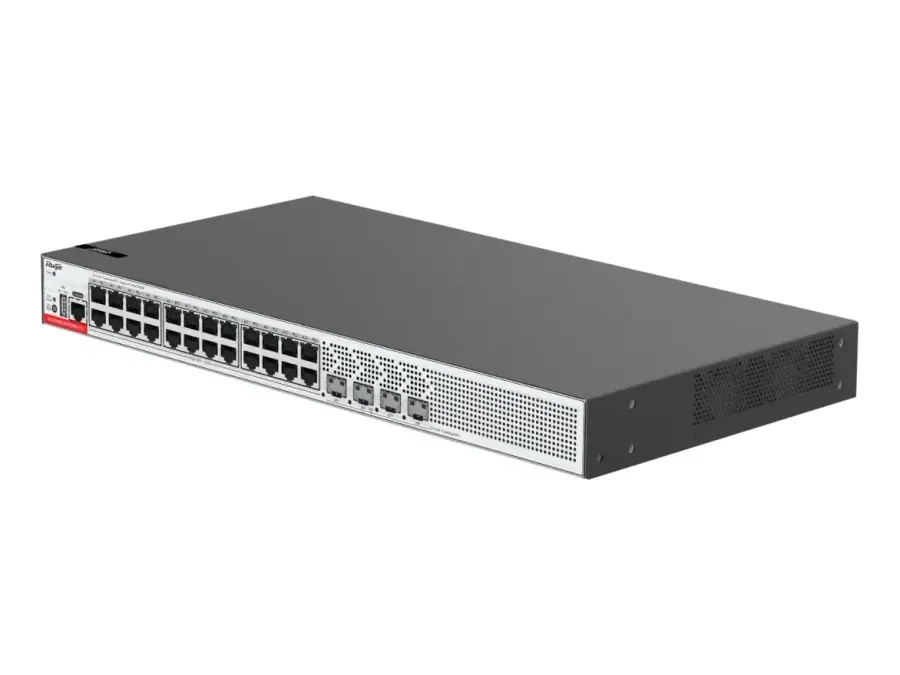

RG-S5000-24GT4MS-P-E 24-Port Gigabit Layer 2+ Managed PoE+ Switch with Four 2.5GE Uplink SFP Ports
Model: RG-S5000-24GT4MS-P-E
Pricing for this product is provided on request.
Request a quote24-Port Gigabit Layer 2+ Managed PoE+ Switch with Four 2.5GE Uplink SFP Ports. Fit for wired, wireless, and other networks in university, hospital, government, and enterprise campus scenarios. Compliant with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards, the switch can reliably supply required power to IP surveillance, teleconference systems, and wireless networks.
Specifications
| Fixed service port | 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+; 4 x 1GE/2.5GE SFP ports |
| Fixed management port | 1 x RJ45 console port and 1 x USB port |
| System switching capacity | 82 Gbps |
| System packet forwarding rate | 61 Mpps |
| MAC address | 16000 |
| Fan | 2 x fixed fan modules |
| Maximum power consumption | 33 W (without PoE load); 403 W (full PoE load) |
| Unit dimensions (W x D x H) | 440 mm x 220 mm x 43.6 mm (17.32 in. x 8.66 in. x 1.72 in.) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Warranty | 3 years |
| PoE port | Ports 1 to 24 support PoE/PoE+ (IEEE802.3af/at) power supply |
| Power supply | 1 x fixed power supply |
| Unit weight | 2.8 kg (6.17 lbs) |
| Rack height | 1 RU |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 200,000 hours (about 22 years) |
| Model | RG-S5000-24GT4MS-P-E |
