Ruijie

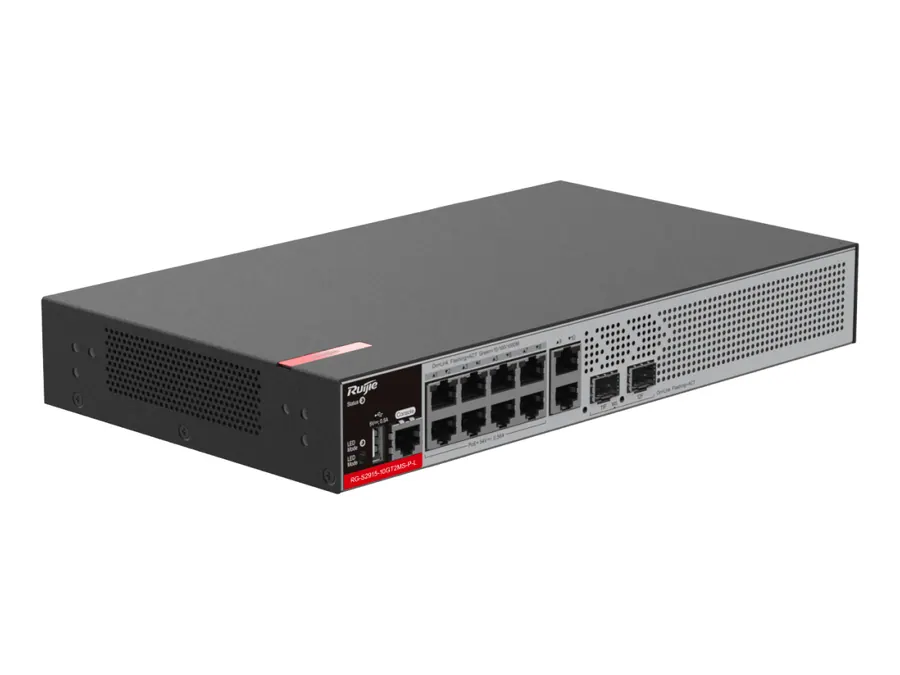

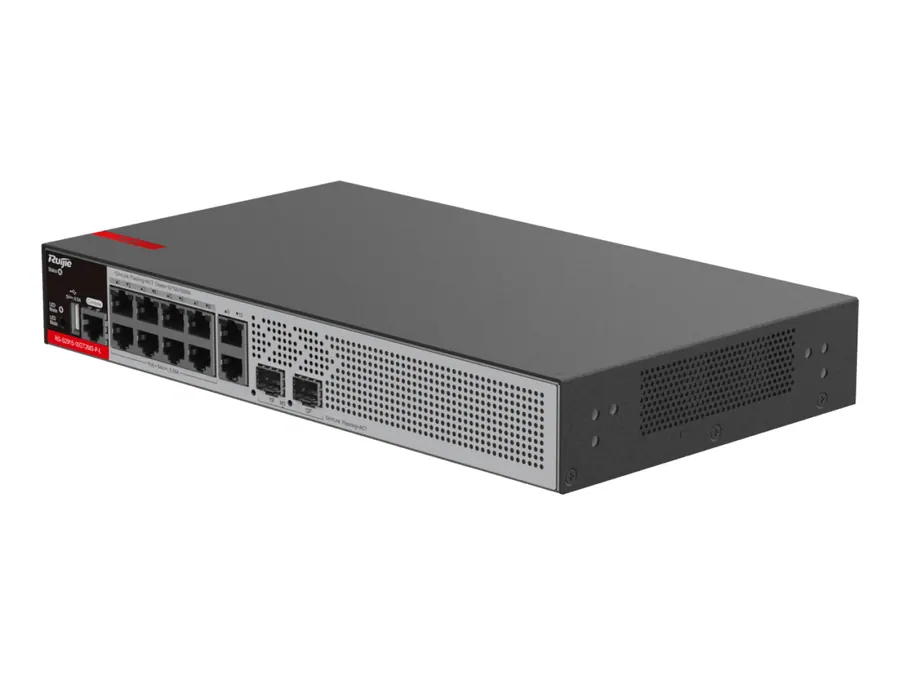

RG-S2915-10GT2MS-P-L 10-Port 1GE RJ45 Layer 2+ Managed PoE+ Switch, 2-Port 2.5GE Uplink
Model: RG-S2915-10GT2MS-P-L
Pricing for this product is provided on request.
Request a quote10-Port 1GE RJ45 Layer 2+ Managed PoE+ Switch, 2-Port 2.5GE Uplink. Suited to offices, hotels, retail stores, factories, and schools. Highlights: 2.5GE uplinks, overcoming GE limitations, supporting diverse access types, and enabling integration into 10GE networks; Unique CPU protection policy, ensuring stability of the switch and nonstop services; RLDP used to provide smooth network connections.
Specifications

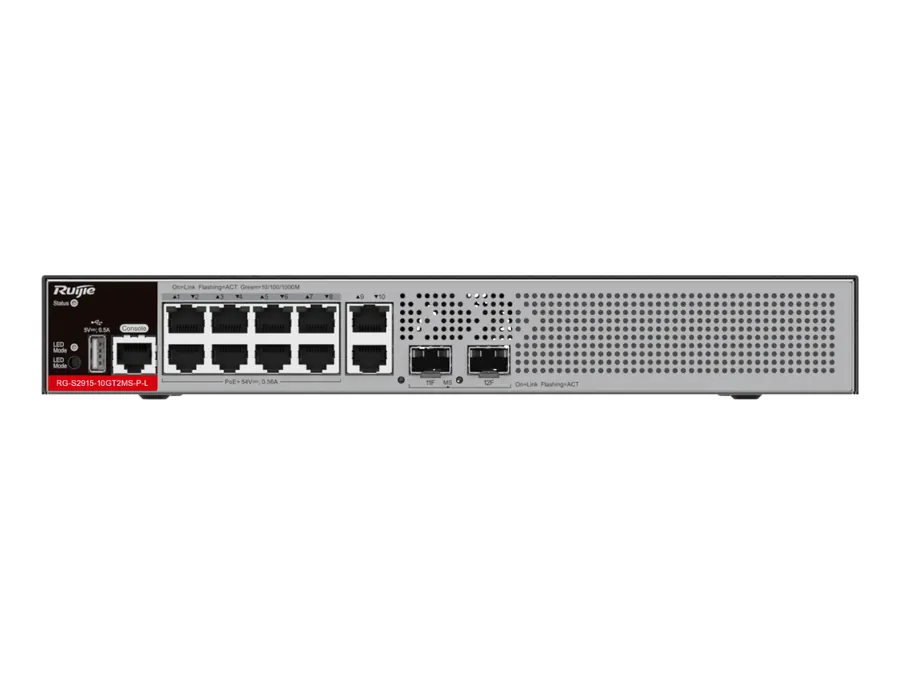

| Fixed Service Ports | 10 x 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+; 2 x 1GE/2.5GE SFP ports |
| Management port | 1 x RJ45 console port |
| Switching capacity | 30 Gbps |
| Forwarding rate | 22.5 Mpps |
| Capacity of MAC address table | 16000 |
| Power module | 1 x fixed power module |
| Fan module | 1 x fan module |
| Cooling mode | Fan cooling |
| Input power | Rated input voltage range: 100V AC to 240V AC, 50/60Hz; Max. input voltage range：90V AC to 264V AC, 50/60Hz |
| Power consumption | 141W (PoE budget: 125W) |
| Surge protection | 10 kV |
| Dimensions (W x D x H) | 297 mm x 170 mm x 44.5 mm (11.69 in. x 6.69 in. x 1.75 in.) |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F) |
| Warranty | 3 years |
| PoE port | Ports 1-8 support PoE/PoE+ (IEEE802.3af/at) power supply |
| Unit weight | 2.5 kg (5.51 lbs) |
| Rack height | 1 RU |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Model | RG-S2915-10GT2MS-P-L |
