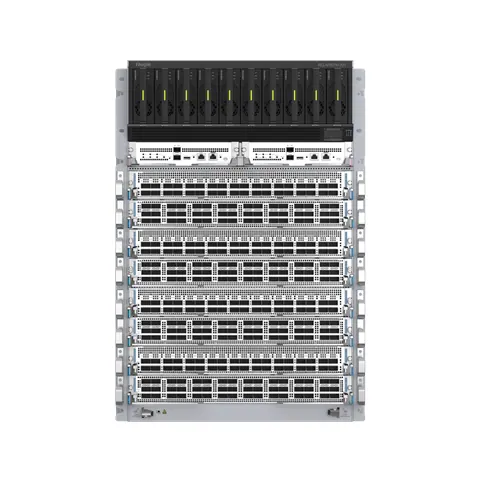

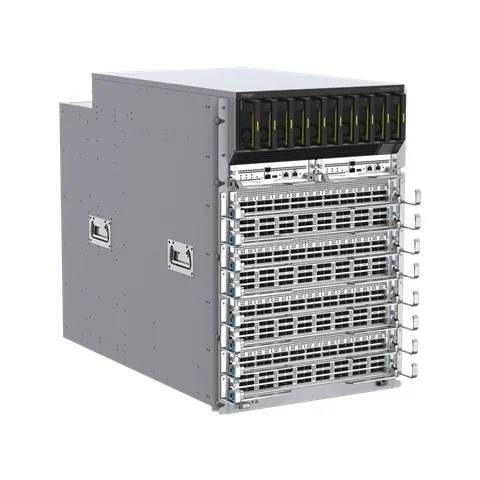

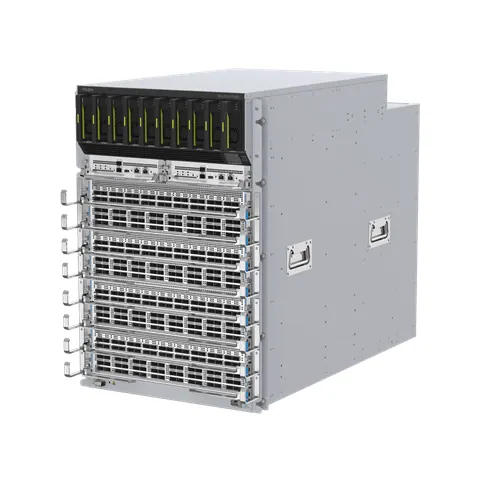

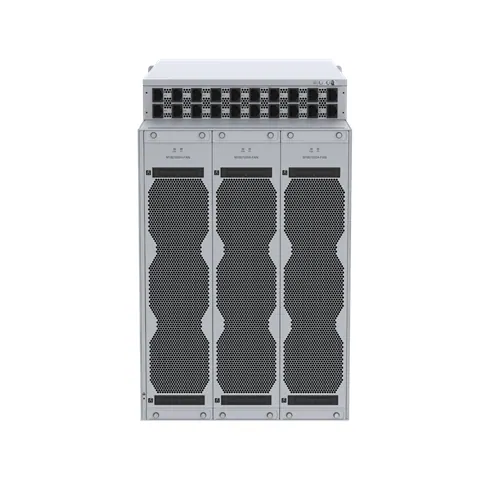

RG-N18010-XH Next Generation Data Center Network High-Density Centralized Modular Core Switch with 100GE/400GE Line Cards and Eight Service Slots
Ruijie
RG-N18010-XH Next Generation Data Center Network High-Density Centralized Modular Core Switch with 100GE/400GE Line Cards and Eight Service Slots
Model: RG-N18010-XH
Pricing for this product is provided on request.
Request a quoteNext Generation Data Center Network High-Density Centralized Modular Core Switch with 100GE/400GE Line Cards and Eight Service Slots. Adaptation to 400GE ZR/ZR+ optical modules, up to 288 x 400GE and 1152 x 100GE line-rate ports, and smooth evolution to 800GE. Service line cards are directly connected to SFUs, without the use of the midplane.
Specifications
| Switching capacity | 645 Tbps/1,935 Tbps |
| Packet forwarding rate | 345,600 Mpps |
| Module slot | 2 x supervisor module slots; 8 x line card slots; 8 x switch fabric module slots; 10 x power module slots; 3 x fan module slots |
| Dimensions (W x D x H) | 442 mm x 896 mm x 708 mm (17.40 in. X 35.28 in. X 27.87 in.), without the cable management bracket; 442 mm x 935 mm x 708 mm (17.40 in. x 36.81 in. X 27.87 in.), with the cable management bracket. |
| Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) |
| Operating Humidity | 10% RH to 90% RH (non-condensing) |
| Power consumption | Maximum power consumption (with the M18010XH-FAN fan module): 187,600 W; Maximum power consumption (with the M18010XH-FAN III fan module): 9000 W |
| Unit weight | 96.4 kg (212.53 lbs.) (Chassis that supports the M18000XH-CM supervisor module); 99 kg (218.26 lbs.) (Chassis that supports the M18000XH-CM II supervisor module) |
| Rack height | 16 RU |
| Model | RG-N18010-XH |
Need installation or a bulk quote? Talk to our team.
