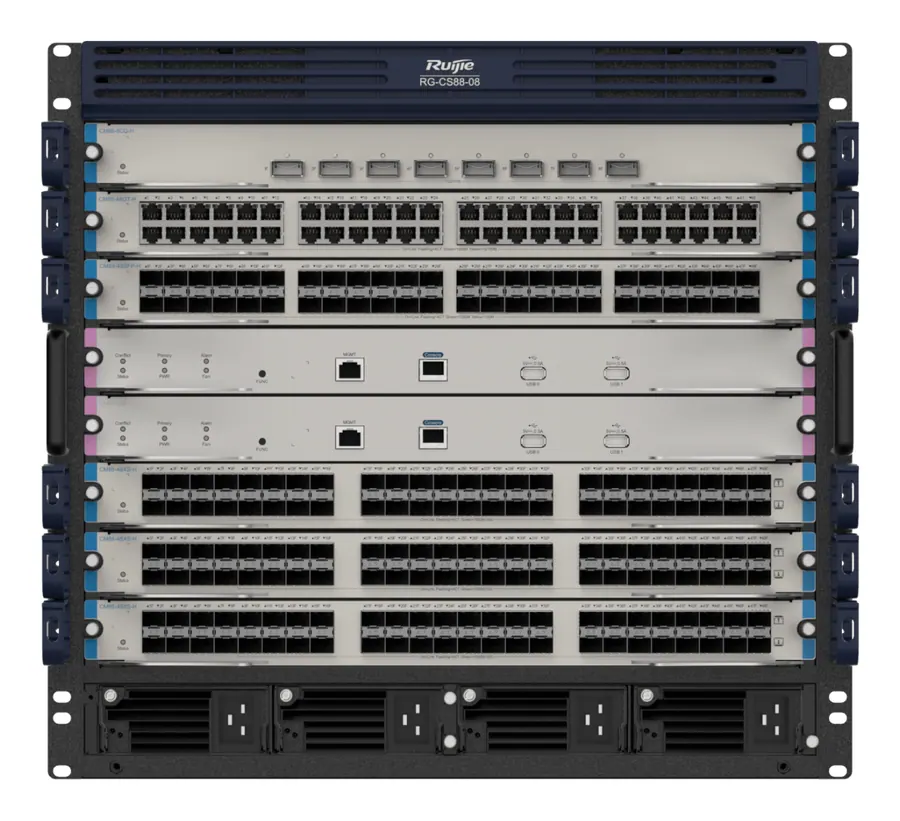

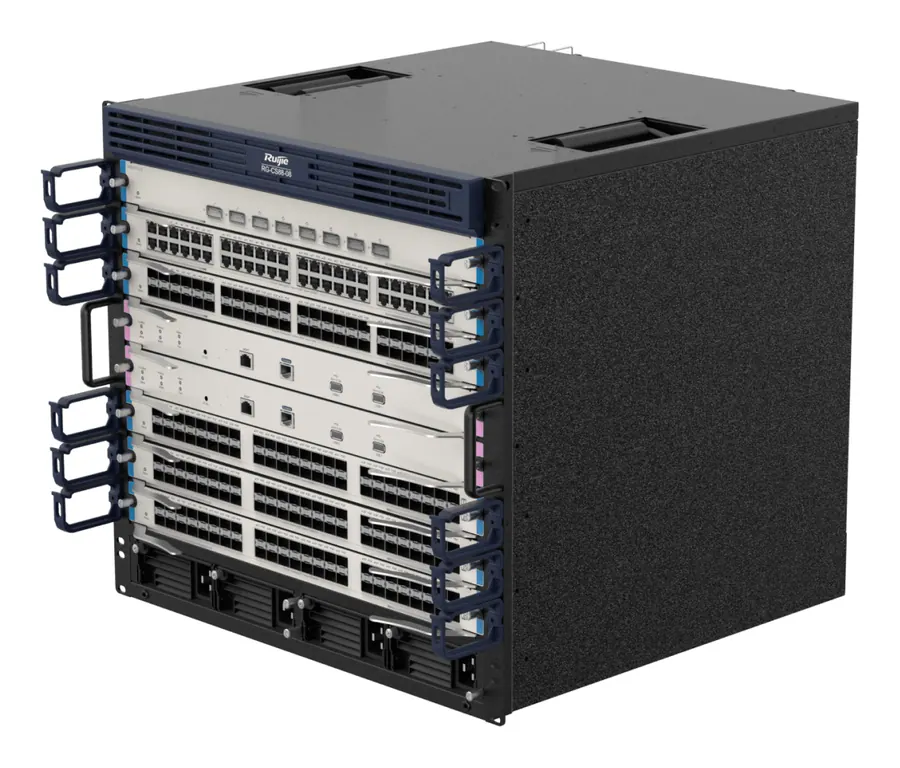

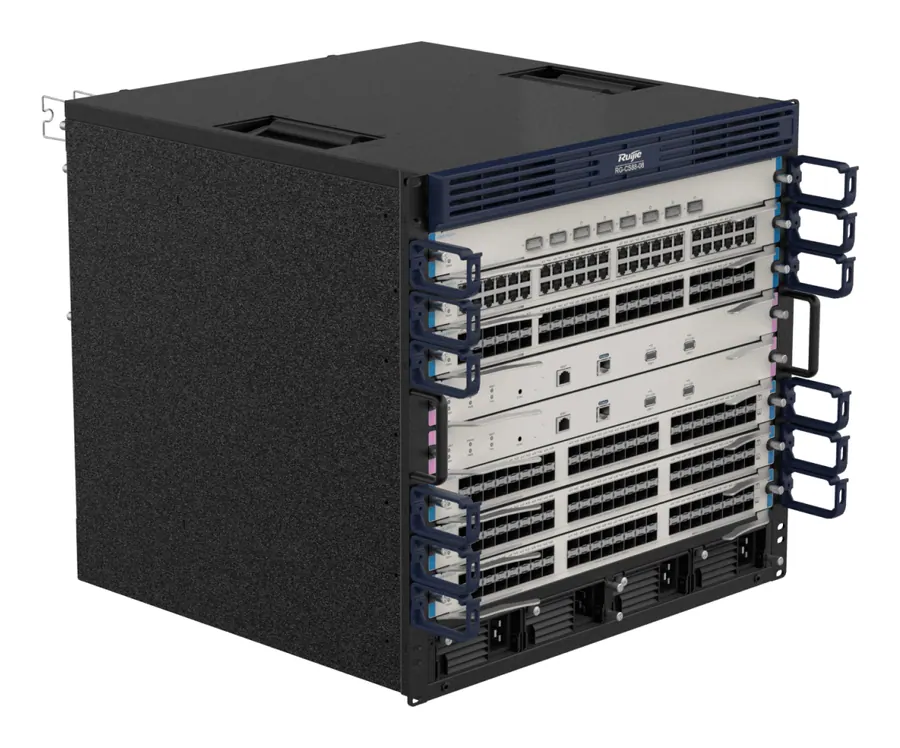

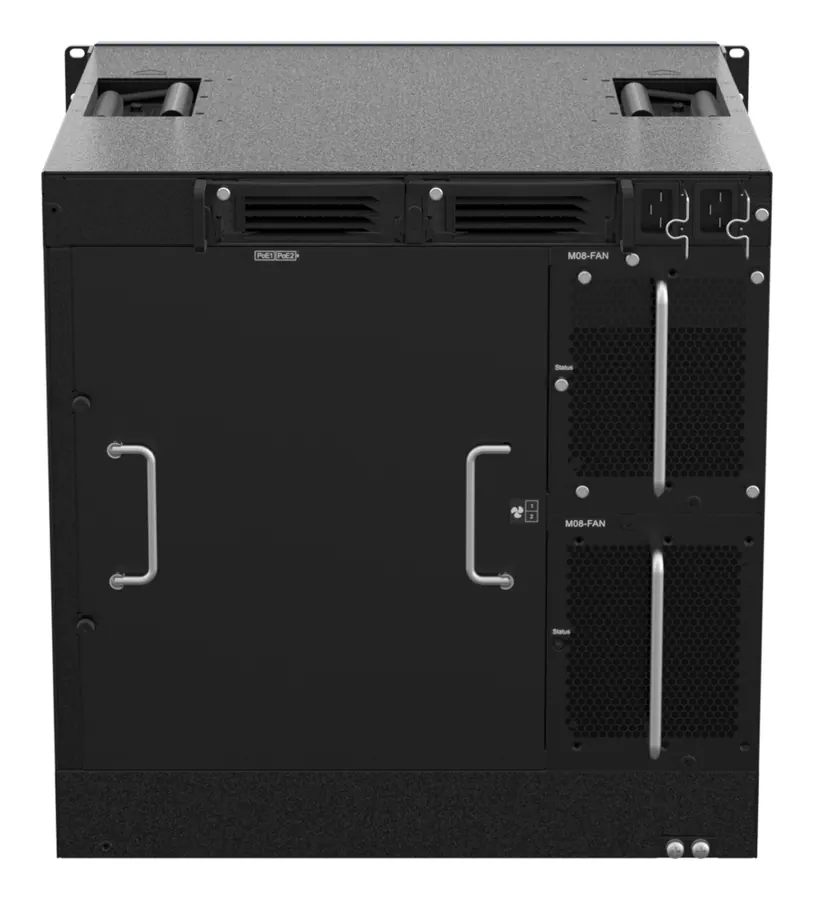

RG-CS88-08 Ruijie 10 RU Modular High-Performance Core Switch with Cloud Management
Model: RG-CS88-08
Pricing for this product is provided on request.
Request a quoteRuijie 10 RU Modular High-Performance Core Switch with Cloud Management. Fit for data center, MAN, campus, and integrated data center and campus scenarios. 10 RU compact size, saving cabinet space, high-density 1G/10G/40G/100G line cards support up to 288 10GE ports.
Specifications
| Supervisor module slots | 2 |
| Line card slots | 6 |
| Switching Capacity | 9.6 Tbps |
| Forwarding rate | 7200 Mpps |
| Dimensions (W x D x H) | 442 mm x 465mm x 441.7 mm (17.40 in. x 18.31 in. x 17.39 in.) 10 RU |
| Device size | 10 RU |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: -40°C to +70°C (-40°F to +158°F) |
| Humidity | Operating humidity: 10% to 90% RH (non-condensing); Storage humidity:5% to 95% RH (non-condensing) |
| Module management port | CM88-CM: 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Power module | RG-PA600I-F; RG-PA1600I-F |
| Unit weight | 35.6 kg (78.48 lbs) (empty chassis with 2 fan modules) |
| Rack height | 10 RU |
| Mean time between failure (MTBF) | 216,000 hours (about 24 years) |
| Model | RG-CS88-08 |
