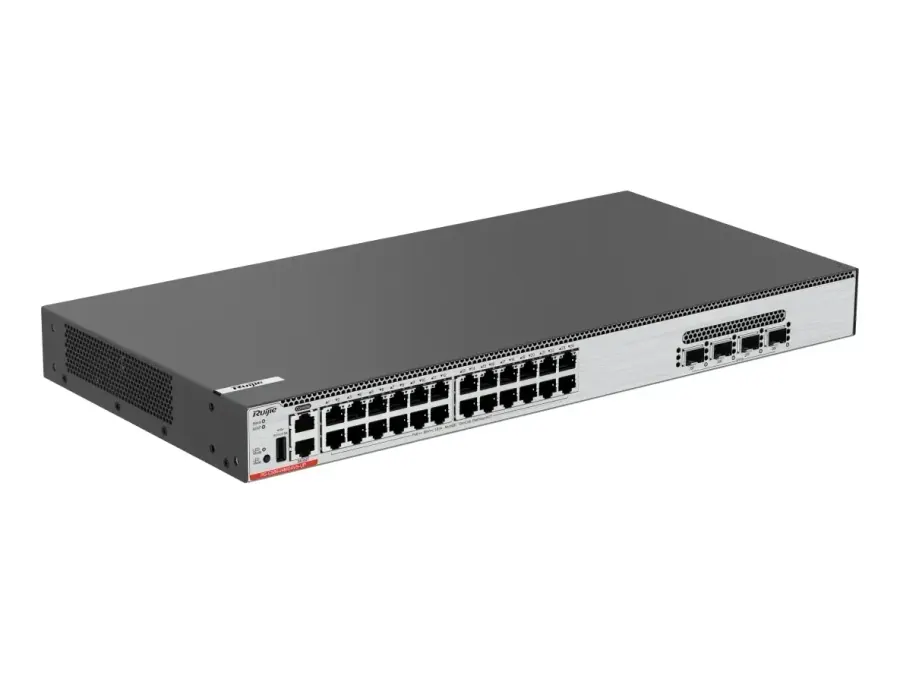

RG-CS86-24MG4VS-UP 24-Port Multi-GE Switch with Cloud Management, Full 1GE/2.5GE/5GE Access with PoE++
Model: RG-CS86-24MG4VS-UP
Pricing for this product is provided on request.
Request a quote24-Port Multi-GE Switch with Cloud Management, Full 1GE/2.5GE/5GE Access with PoE++. Delivering fast hardware processing and good operation experience, and satisfying requirements on high speed, security, and intelligence for enterprise campus networks. 4 x 25GE SFP28 ports for uplink, enabling flexible networking High-power PoE++, offering up to 90 W output and adapting to services in Wi-Fi 6E and Wi-Fi 7 eras.
Specifications

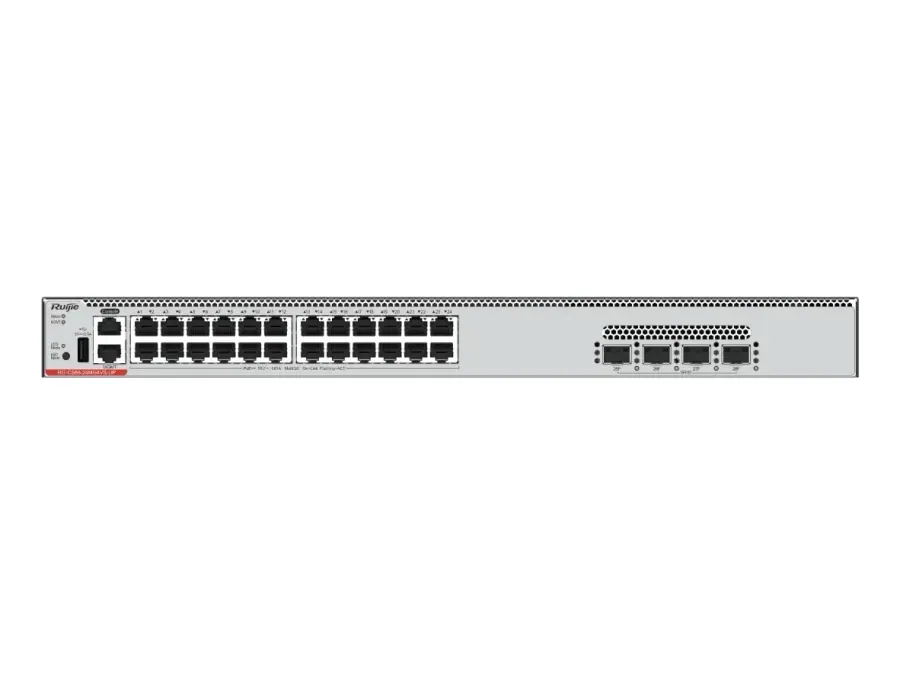

| Fixed service port | 24 x 100/1000/2.5G/5GBASE-T ports, supporting PoE/PoE+/PoE++; 4 x 10GE/25GE SFP28 ports |
| Fixed management port | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| Switching capacity | 440 Gbps |
| Packet forwarding rate | 327 Mpps |
| PoE port | Ports 1 to 24 support PoE/PoE+ and HPoE power supply (IEEE 802.3af/at and 802.3bt). |

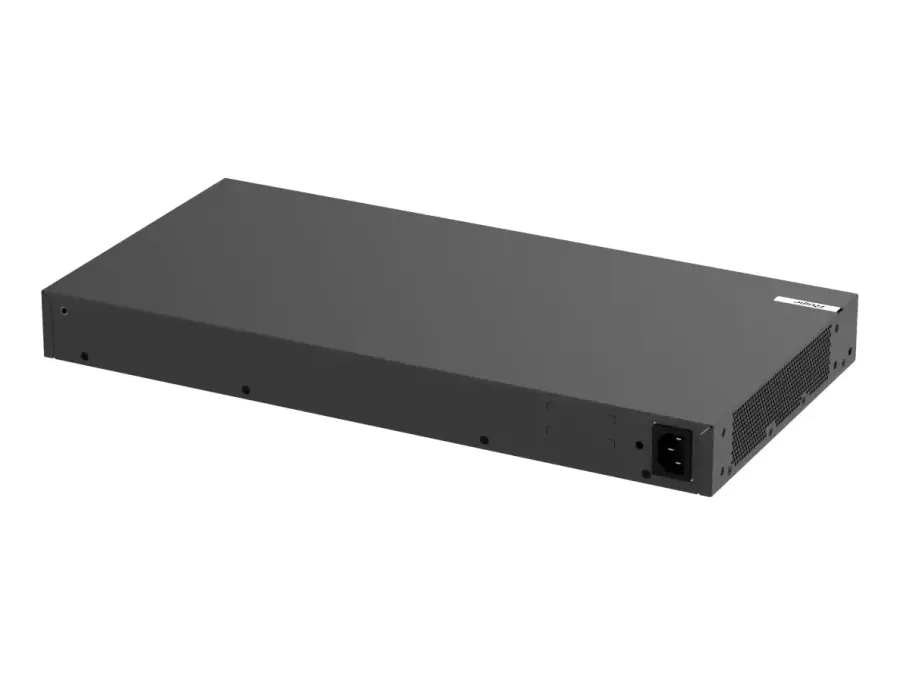

| Power supply | 1 x fixed power supply |
| Maximum power consumption | 90 W (without PoE); 460 W (full PoE load) |
| Unit dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm (17.40 in. x 8.66 in. x 1.72 in.) |
| Unit weight | 3.65 kg (8.82 lbs) |
| Rack height | 1 RU |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 194,297 hours (about 22 years) |
| Model | RG-CS86-24MG4VS-UP |
Need installation or a bulk quote? Talk to our team.
