Ruijie

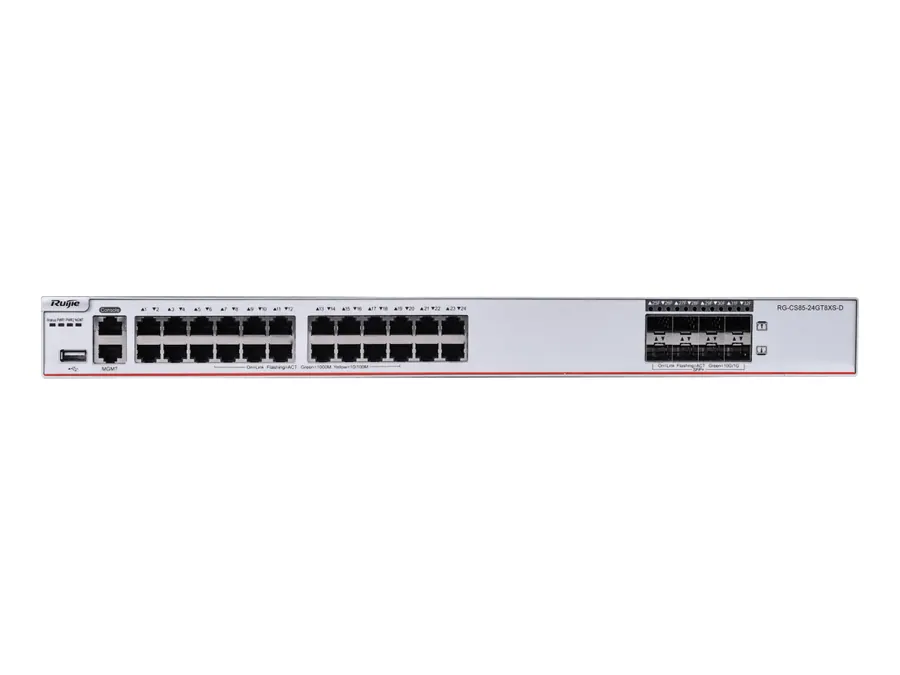

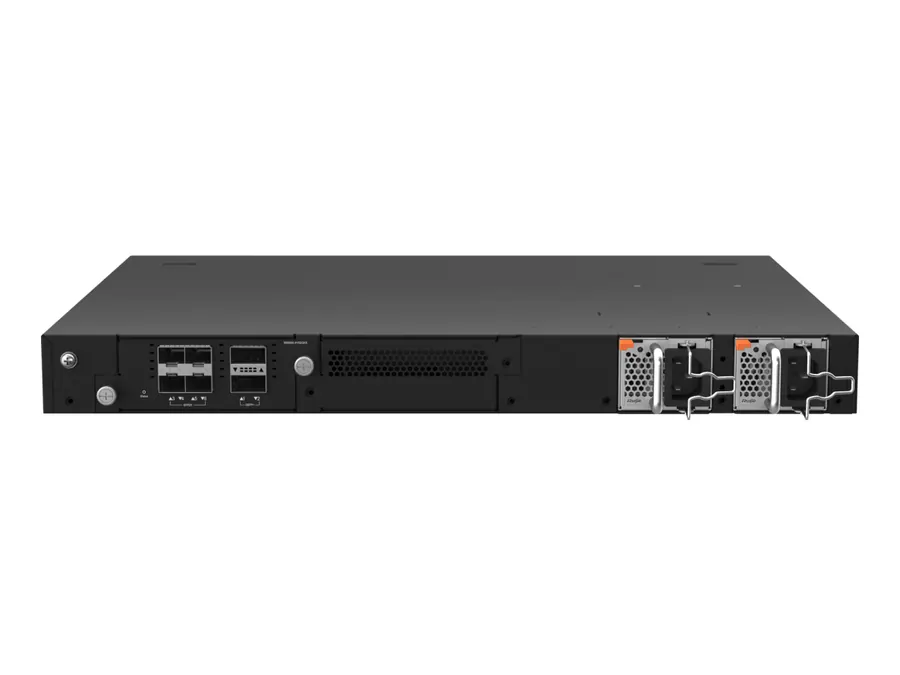

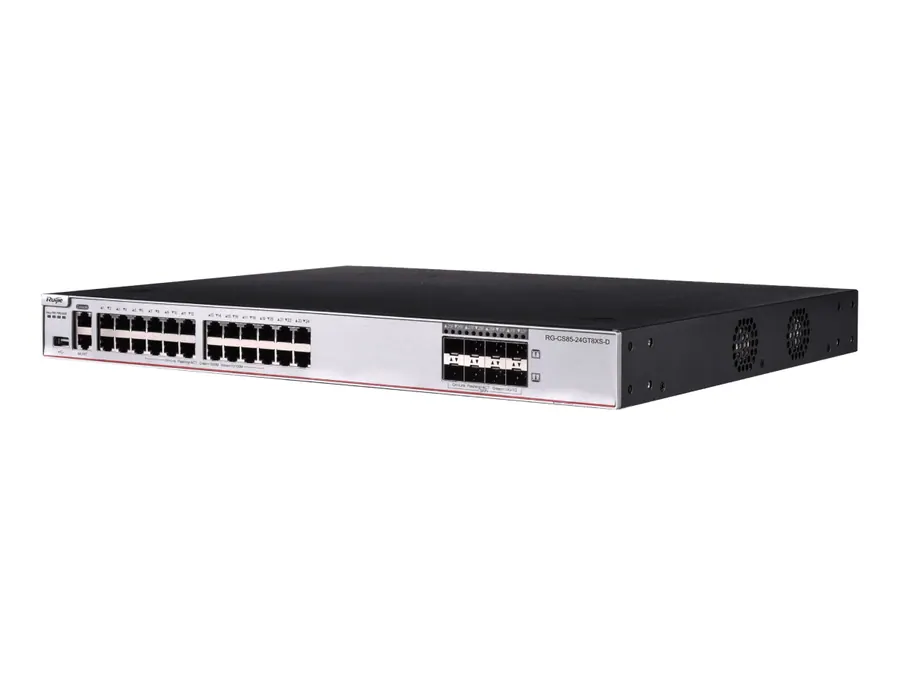

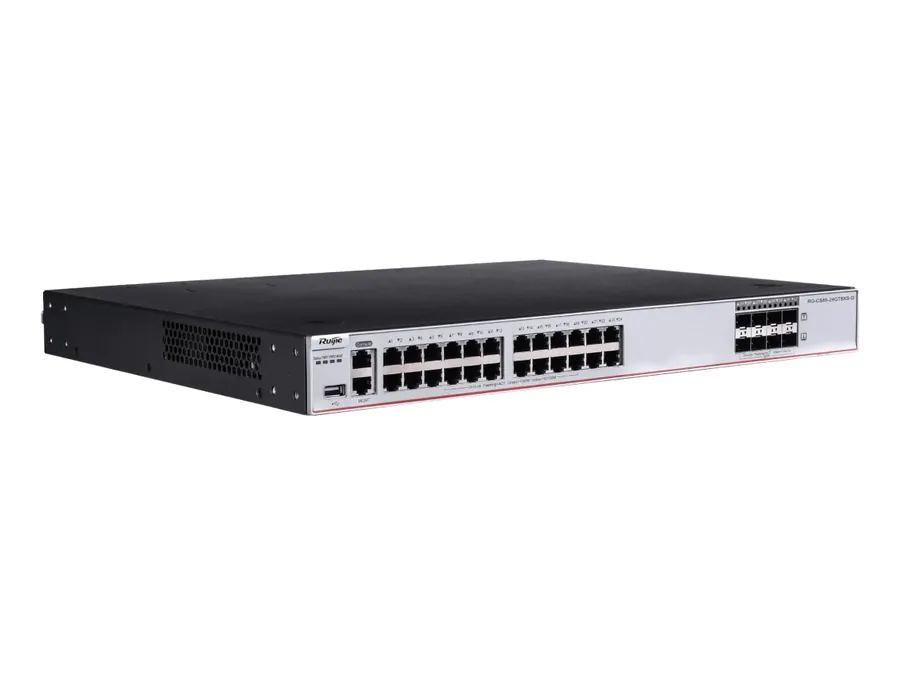

RG-CS85-24GT8XS-D 24-Port 1GE RJ45 Layer 3 Enterprise-Class Core or Aggregation Switch, 8-Port 10GE Uplink
Model: RG-CS85-24GT8XS-D
Pricing for this product is provided on request.
Request a quote24-Port 1GE RJ45 Layer 3 Enterprise-Class Core or Aggregation Switch, 8-Port 10GE Uplink. Aggregation switch for large-sized networks, or core switch for small- and medium-sized networks. Core switch for small and medium-sized enterprise networks, with high scalability, efficiency, and manageability, and device-level and link-level reliabilities for stable connectivity.
Specifications
| Service port | 24 x 10/100/1000BASE-T ports; 8 x 1GE/10GE SFP+ ports |
| Management port | 1 x console, 1 x MGMT, 1 x USB3.0 |
| Switching Capacity | 688 Gbps |
| Forwarding rate | 512 Mpps |
| Cooling mode | Fan cooling |
| Power Consumption | <60 W (excluding expansion modules); <85 W (including expansion modules) |
| Link Aggregation | Supported |
| Dimensions (W x D x H) | 440 x 340 x 44 mm (17.32 x 13.39 x 1.73 in), 1 RU |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Warranty period | 3 years |
| PoE port | All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply |
| Power module | RG-PA150IB-F |
| Unit weight | 4.4 kg; (9.70 lbs) |
| Rack height | 1 RU |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 1,051,000 hours (about 120 years) |
| Model | RG-CS85-24GT8XS-D |
Need installation or a bulk quote? Talk to our team.
