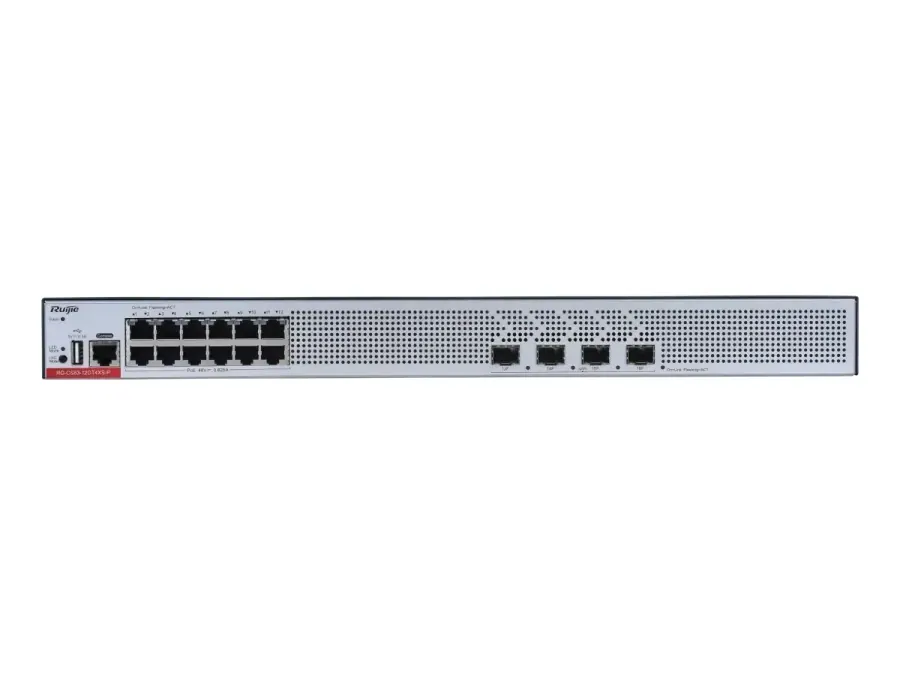

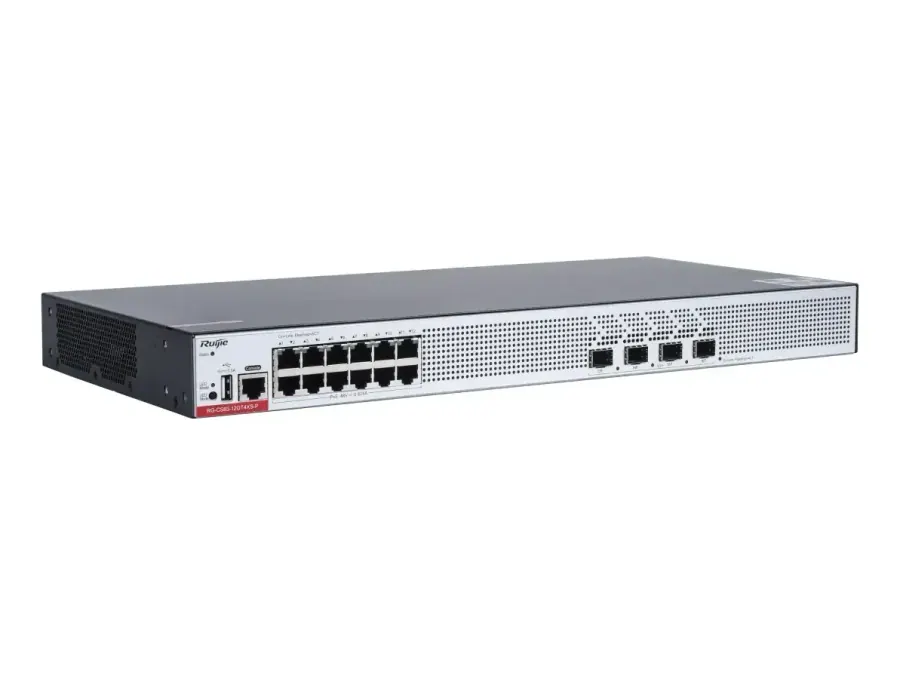

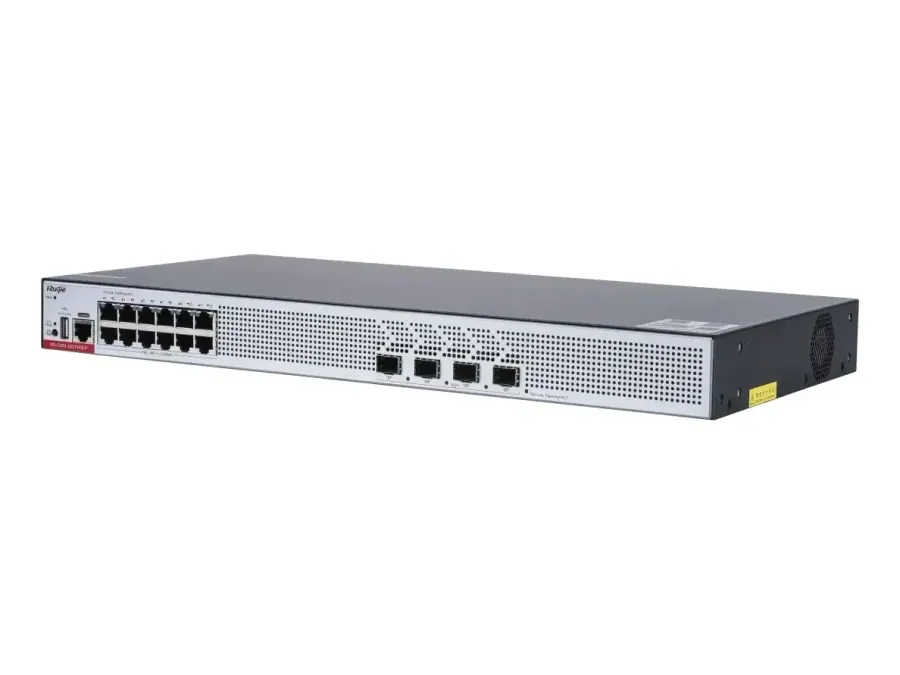

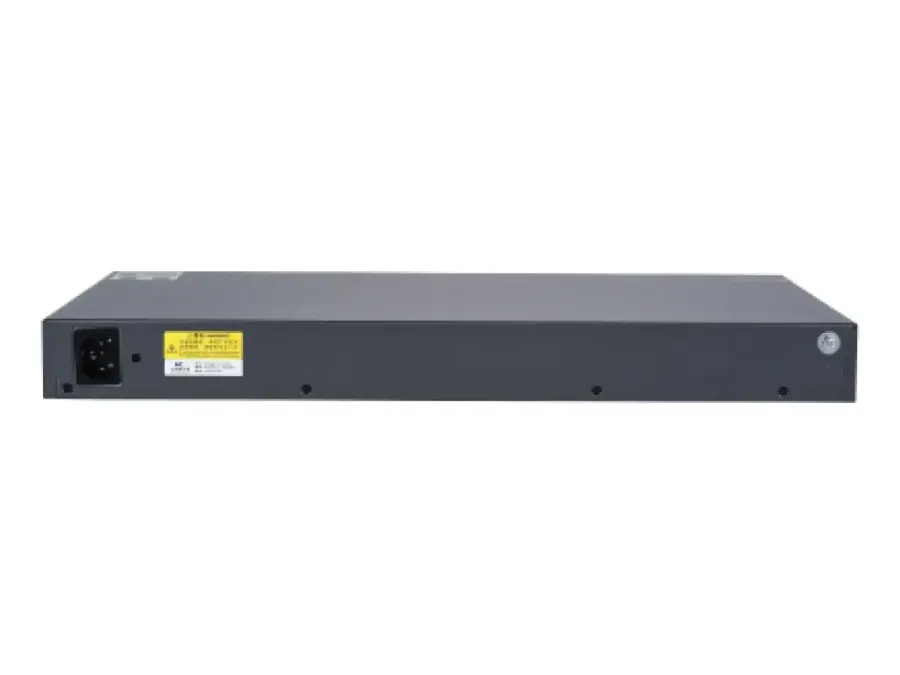

RG-CS83-12GT4XS-P 12-Port 1GE RJ45 Layer 3 Managed Access Switch with PoE+, 4-Port 10GE Uplink
Model: RG-CS83-12GT4XS-P
Pricing for this product is provided on request.
Request a quote12-Port 1GE RJ45 Layer 3 Managed Access Switch with PoE+, 4-Port 10GE Uplink. Business systems such as medical care, libraries, exhibition centers, websites and other gigabit access. 12 x 10/100/1000BASE-T ports and four 1GE/10GE SFP+ ports for flexible networking PoE+ supported, providing power to powered devices on security hybrid systems and wireless coverage systems.
Specifications
| Fixed service ports | 12 x 10/100/1000BASE-T ports, supporting PoE/PoE+; 4 x 1GE/10GE SFP+ ports |
| Fixed management port | 1 x RJ45 console port |
| Switching capacity | 104 Gbps |
| Packet forwarding rate | 78 Mpps |
| PoE port | All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply |
| Power supply | 1 x fixed power supply |
| Maximum power consumption | 35 W (non-PoE); 405 W (PoE full load) |
| Unit dimensions (W x D x H) | 442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.) |
| Unit weight | 3.3 kg (7.28 lbs) |
| Rack height | 1 RU |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 211,466 hours (about 24 years) |
| Model | RG-CS83-12GT4XS-P |
Need installation or a bulk quote? Talk to our team.
