Ruijie

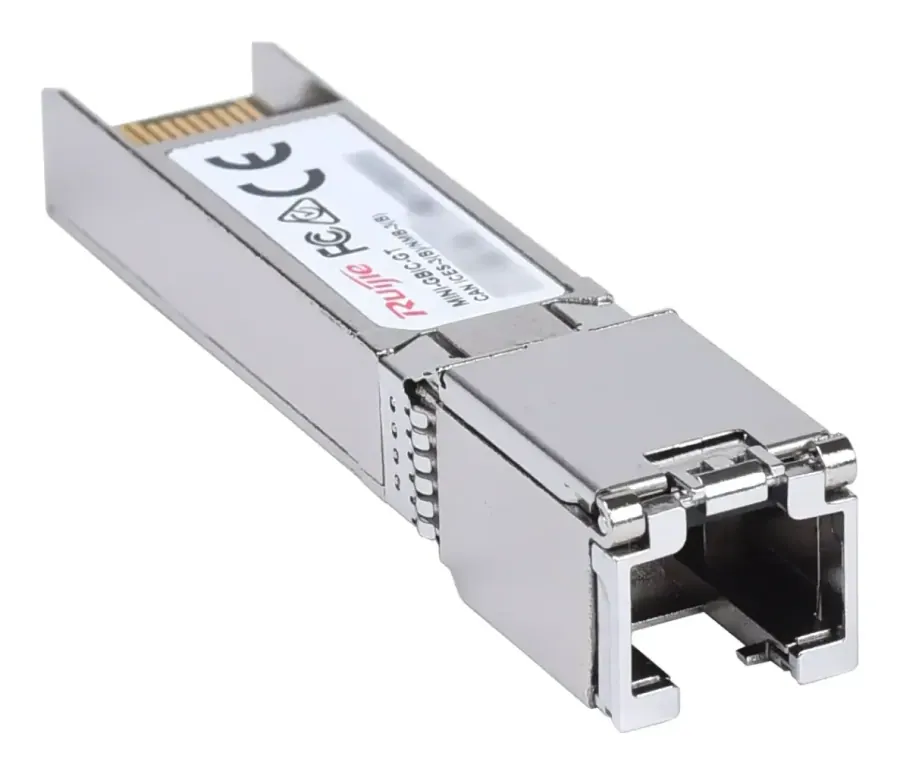

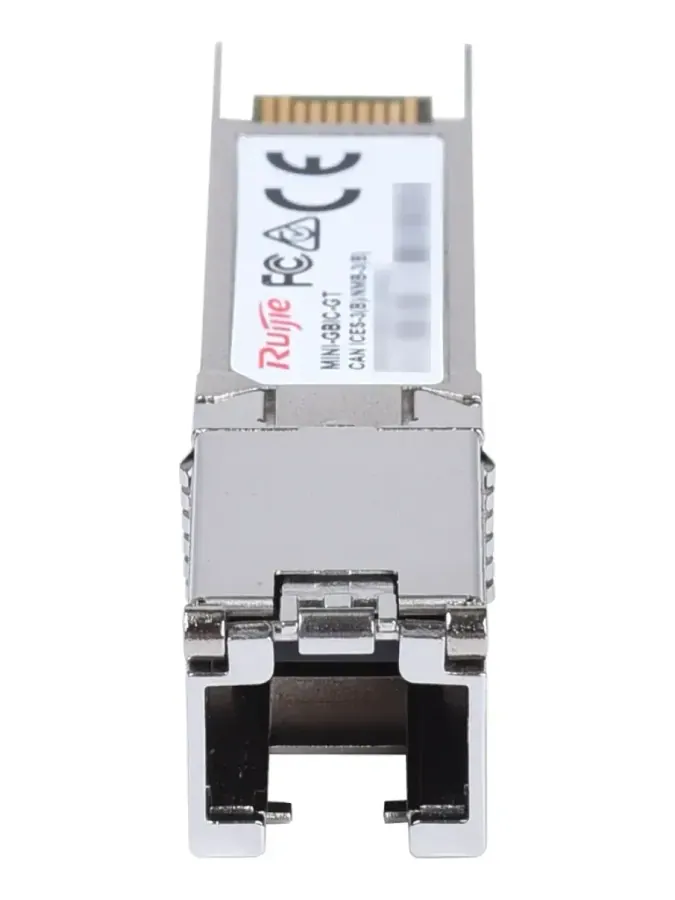

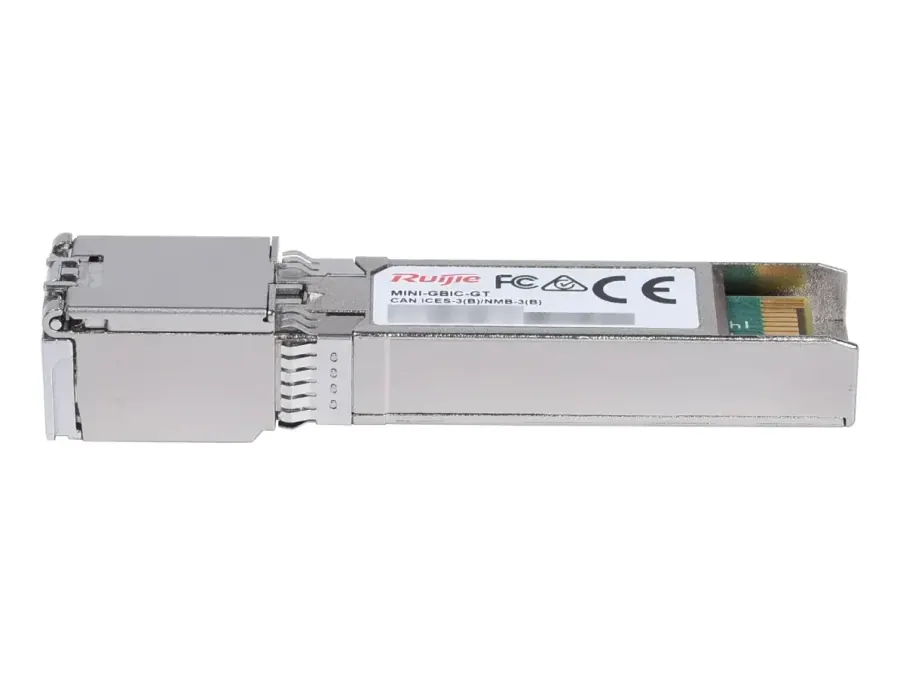

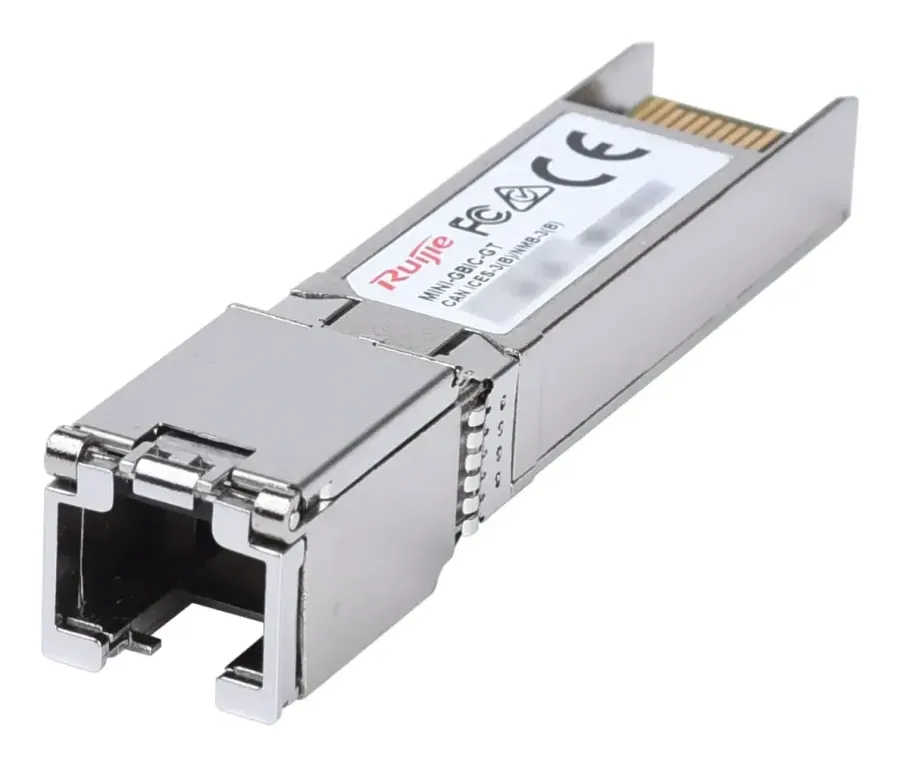

Mini-GBIC-GT 1000BASE-T SFP Copper RJ45 100-m Transceiver Module
Model: Mini-GBIC-GT
Pricing for this product is provided on request.
Request a quote1000BASE-T SFP Copper RJ45 100-m Transceiver Module. Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs). The MINI-GBIC-GT is an IEEE 1000base-X to 1000base-T media converter and supports a link length of up to 100 meters over a Cat 5e/6/6a cable with an RJ45 connector.
Specifications
| Data rate | 1000base-X to 1000base-T |
| Form factor | SFP |
| Connector type | RJ45 |
| Cable type | Cat 5e/6/6a |
| Reach | 100 m (328.08 ft.) |
| Data diagnosis-capable (DDM/DOM) | No |
| Power consumption | ≤ 1.5 W |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Operating humidity | 10% RH to 90% RH |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Storage humidity | 10% RH to 90% RH |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
| Model | Mini-GBIC-GT |
Need installation or a bulk quote? Talk to our team.
