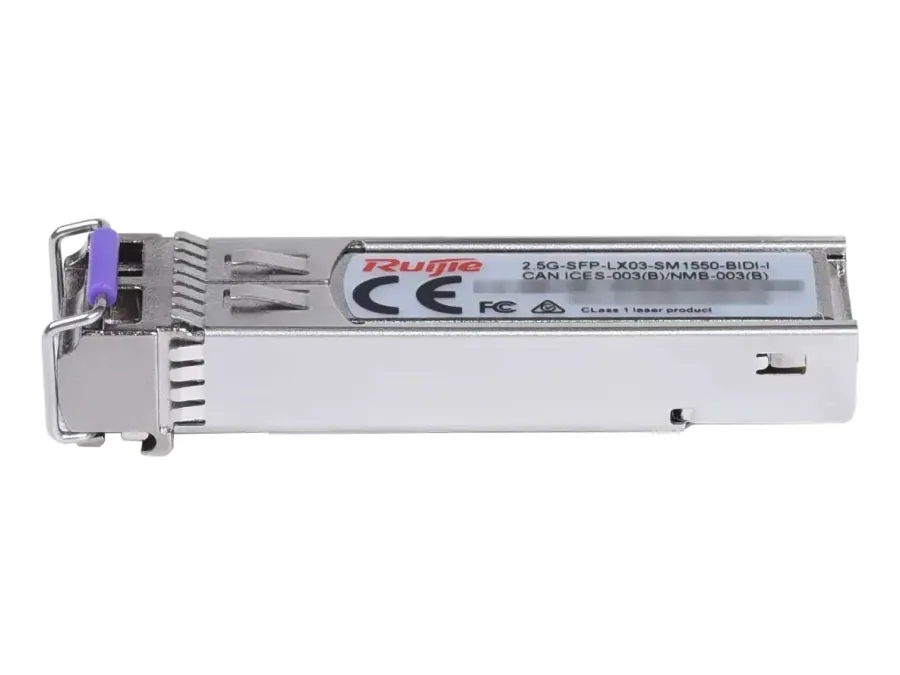

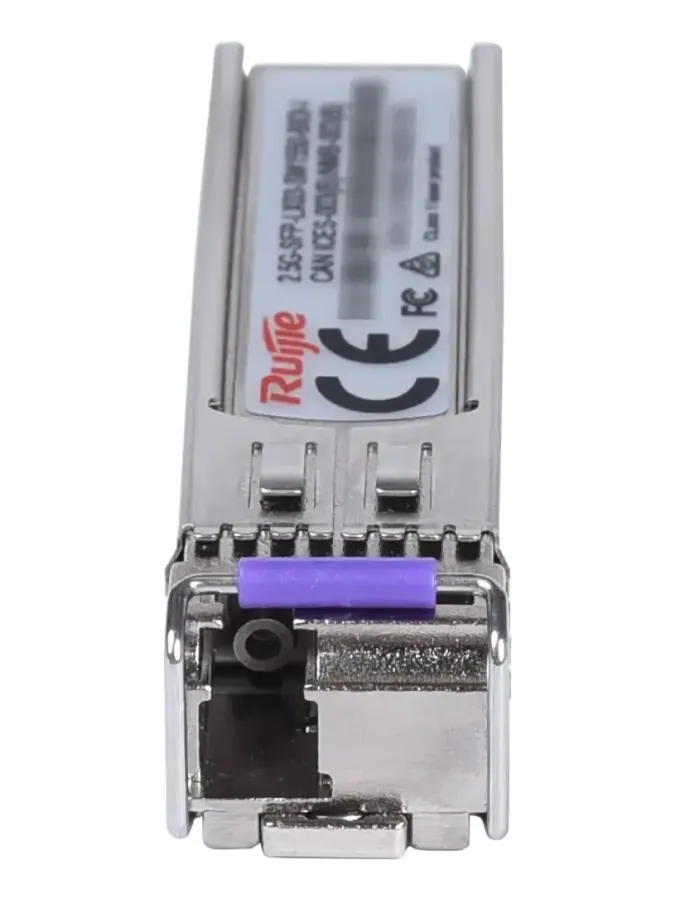

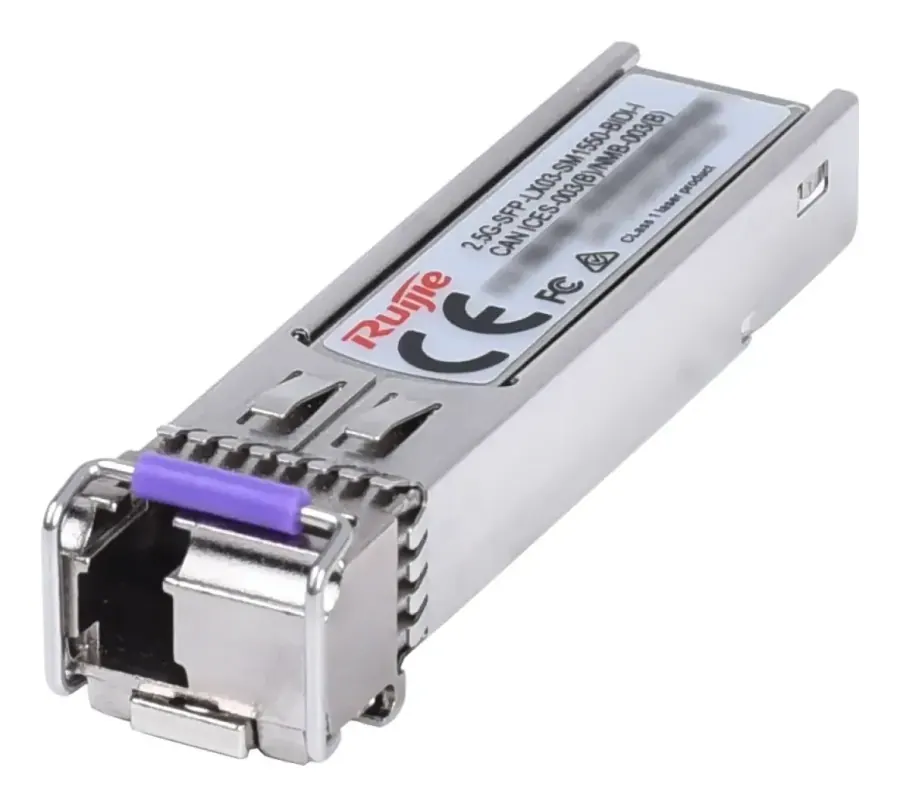

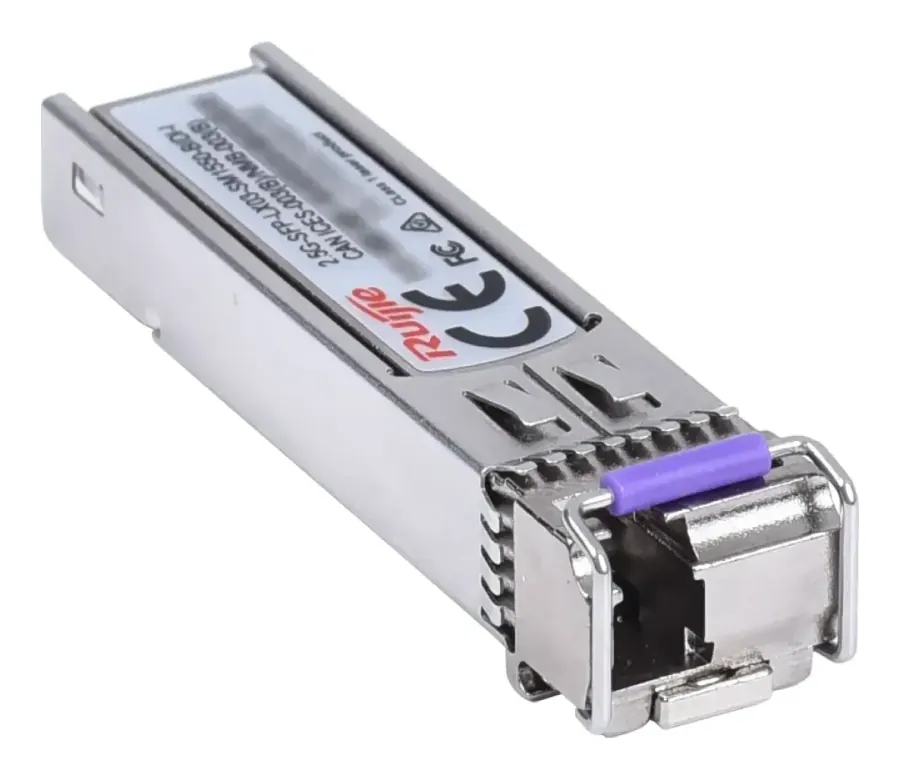

2.5G-SFP-LX03-SM1550-BIDI-I 2.5G BiDi SFP 1550nm-TX/1310nm-RX 3-km DOM Simplex LC SMF Transceiver Module
Model: 2.5G-SFP-LX03-SM1550-BIDI-I
Pricing for this product is provided on request.
Request a quote2.5G BiDi SFP 1550nm-TX/1310nm-RX 3-km DOM Simplex LC SMF Transceiver Module. Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection. The 2.5G-SFP-LX03-SM1550-BIDI-I is aligned to IEEE 2.5GBASE-LX optical specifications and supports a link length of up to 3 kilometers over an SMF with a BIDI LC connector.
Specifications
| Data rate | 3.125 Gbps |
| Form factor | SFP |
| Connector type | BIDI LC |
| Cable type | SMF |
| Fiber end face finish type | Ultra Physical Contact (UPC) |
| Transmitter type | DFB |
| Receiver type | PIN |
| Reach | 3 km (9,842.52 ft.) |
| Bit error ratio (BER) | 1.00E-12 |
| Data diagnosis-capable (DDM/DOM) | Yes |
| Power consumption | ≤ 1 W |
| Wavelength | 1550 nm TX; 1310 nm RX |
| Max. transmit power (AVG) | –3 dBm |
| Min. transmit power (AVG) | –9 dBm |
| Min. extinction ratio | ≥ 6.5 dB |
| Receive sensitivity (OMA) | < –16 dBm |
| Overload optical power (AVG) | –3 dBm |
| Operating temperature | –40ºC to +85ºC (–40ºF to +185ºF) |
| Operating humidity | 10% RH to 90% RH |
| Storage temperature | –40ºC to +85ºC (–40ºF to +185ºF) |
| Storage humidity | 10% RH to 90% RH |
| Dimensions; (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.51 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
| Model | 2.5G-SFP-LX03-SM1550-BIDI-I |
