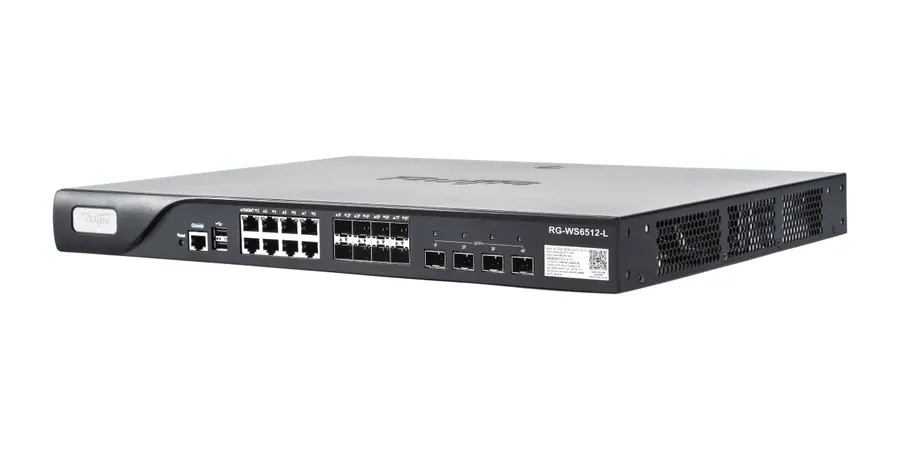

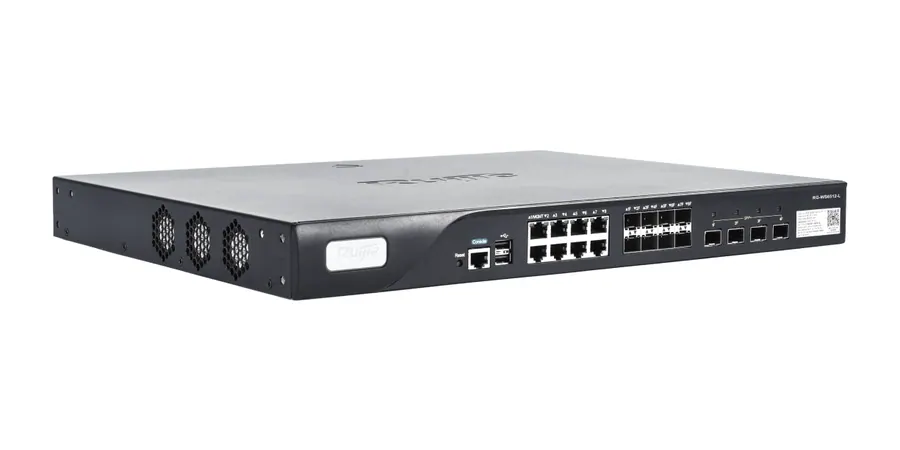

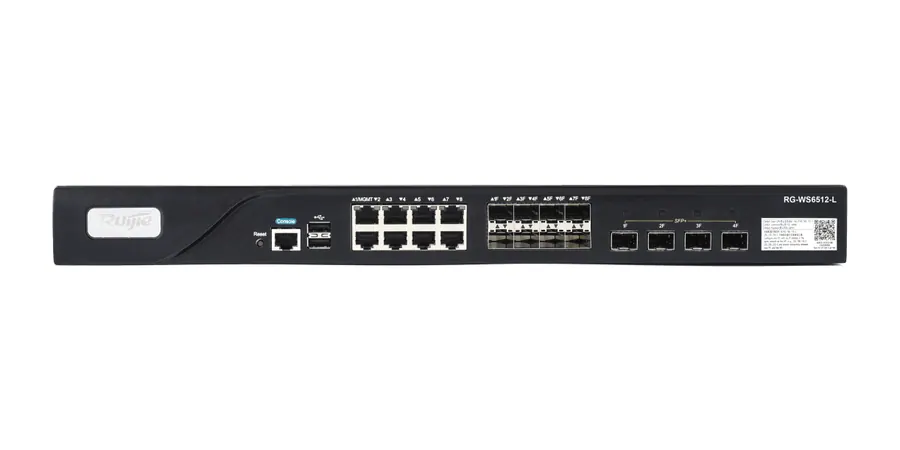

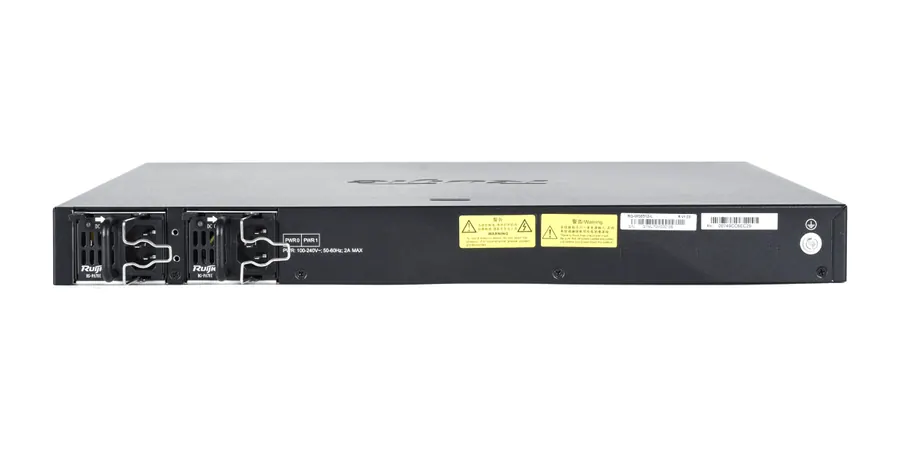

RG-WS6512-L High-Performance Large Campus Wireless Access Controller
Ruijie
RG-WS6512-L High-Performance Large Campus Wireless Access Controller
Model: RG-WS6512-L
Pricing for this product is provided on request.
Request a quoteThe RG-WS6512-L is a high-performance large campus wireless access controller. Suited to medium to large networks, government, general education, medical care, enterprises, etc. Key features: Layered management and control for large networks; Switching between centralized and local forwarding.
Specifications
| Ports | 8 x GE combo ports; 4 x 10GE SFP+ ports |
| Management ports | 1 x RJ45 console port; 2 x USB ports |
| Dimensions (W x D x H) | 440 mm x 340 mm x 43.6 mm (17.32 in. x 13.39 in. x 1.72 in.) |
| Weight | Main unit: 5.9 kg (13.01 lbs); power module: 0.4 kg (0.88 lbs) |
| Rack height | 1 RU |
| Max power consumption | 70 W |
| Power supply | 2 x RG-PA70I 70 W AC power modules (one is delivered with the main unit, a second is optional) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) (main unit) |
| Default managed APs | 128 |
| Max managed APs | 2,304 |
| Max managed STAs | 32,768 |
| Forwarding capacity | 40 Gbps (subject to the wireless network environment) |
| VLANs | 4,096 |
| Model | RG-WS6512-L |
Need installation or a bulk quote? Talk to our team.
