RG-SC6705-SP Multi-Service Wireless Controller with 64 AP License
Ruijie
RG-SC6705-SP Multi-Service Wireless Controller with 64 AP License
Model: RG-SC6705-SP
Pricing for this product is provided on request.
Request a quoteThe RG-SC6705-SP is a multi-service wireless controller with 64 AP license. Suited to enterprise, education, government, hotel, etc. Key features: Multi-service integrate AC, PoE switch, and gateway; Free authorization and routine auto-management of 64 APs.
Specifications

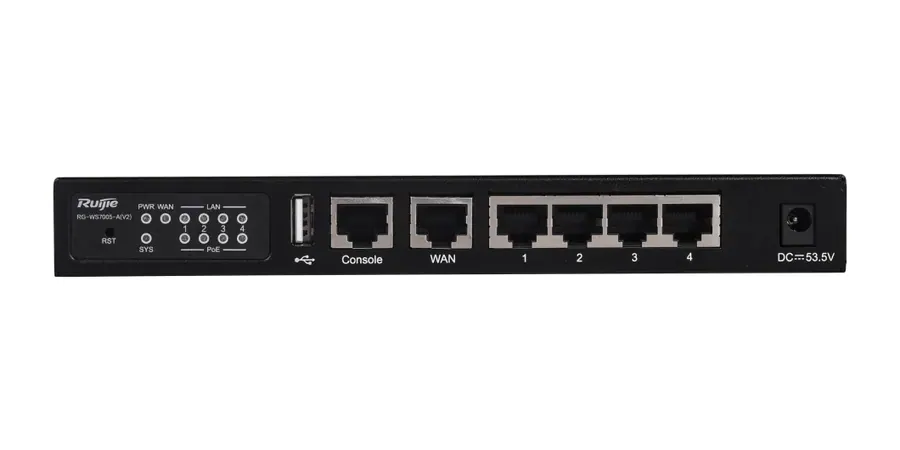

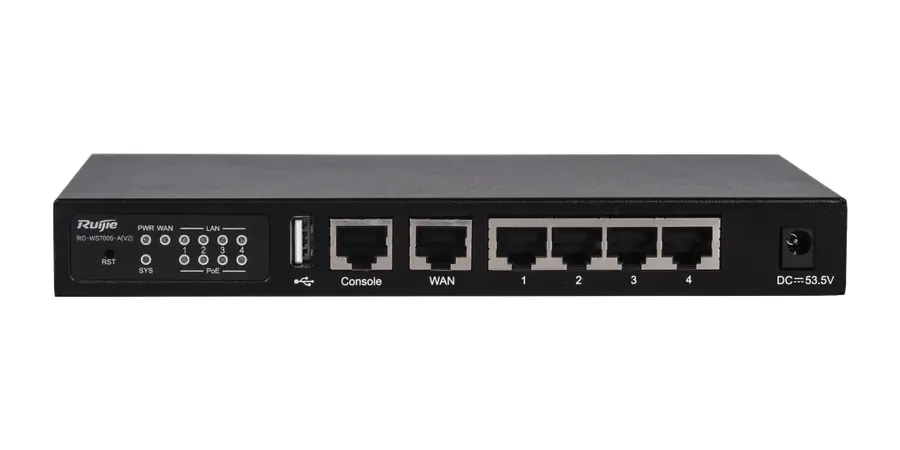

| Ports | 1 x 10/100/1000BASE-T port; 4 x 10/100/1000BASE-T PoE/PoE+ ports (IEEE 802.3af/at); 1 x RJ45 console port; 1 x USB port |
| Dimensions (W x D x H) | 200 mm x 110 mm x 25 mm (7.87 in. x 4.33 in. x 0.98 in.) |
| Weight | 1.0 kg (2.20 lbs) |
| Rack height | 1 RU |
| Max power consumption | 64.2 W |
| Power supply | 1 x 80 W power adapter (DC power jack); input 100 V AC to 240 V AC, 50 Hz to 60 Hz; output 54 V DC |
| Operating temperature | –10°C to +40°C (14°F to 104°F) |
| Mounting | Workbench/Wall-mount |
| Max managed APs | 64 (fixed number, license-based expansion unavailable) |
| Max managed STAs | 2,048 |
| Forwarding capacity | 2 Gbps (subject to the wireless network environment) |
| VLANs | 4,094 |
| Model | RG-SC6705-SP |
