Ruijie

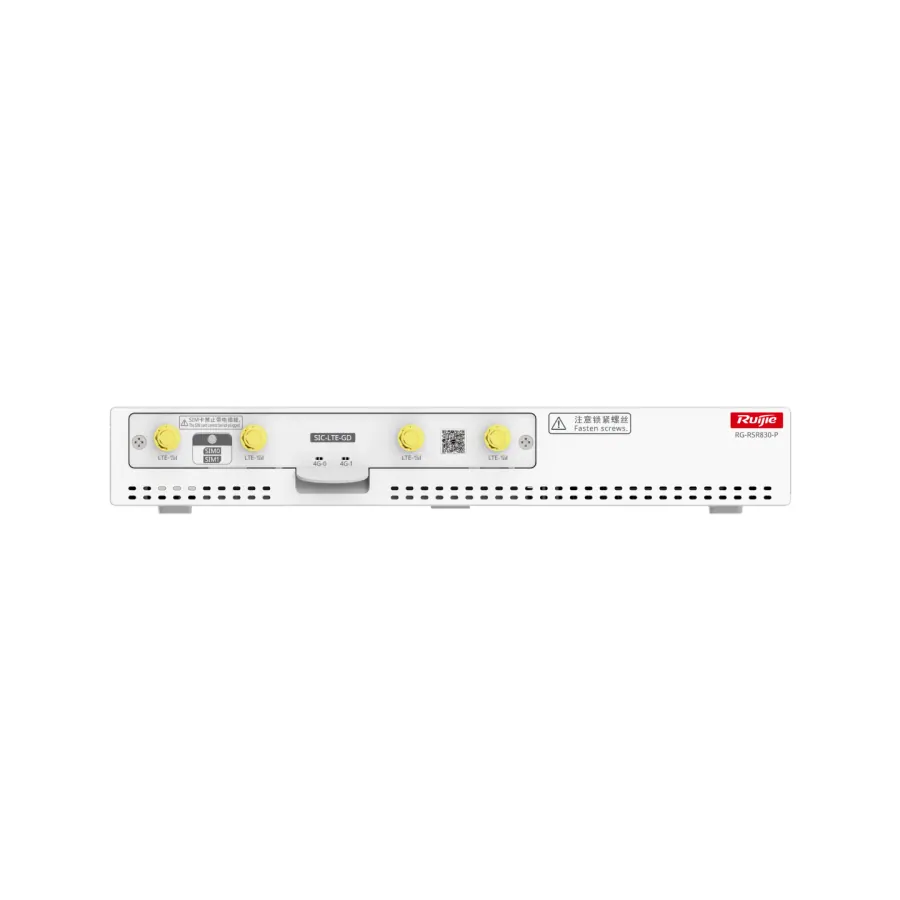

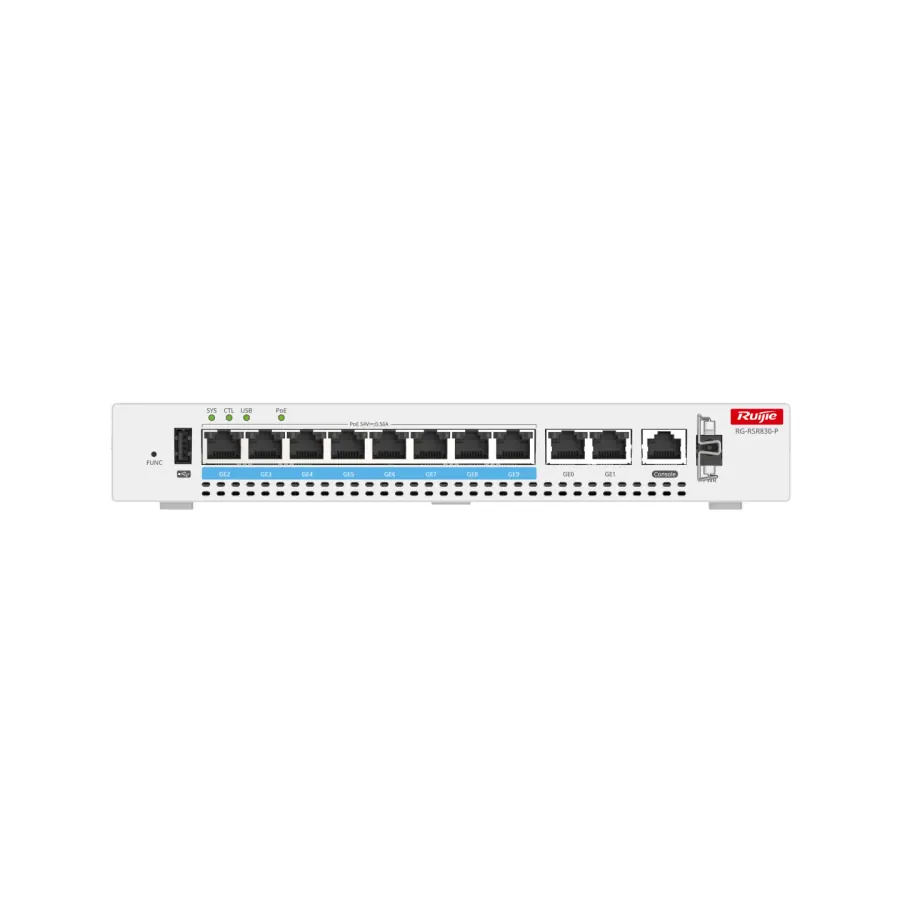

RG-RSR830-P 10-Port Mobile Router, Supporting PoE
Model: RG-RSR830-P
Pricing for this product is provided on request.
Request a quote10-port mobile router with PoE (WAN: 2 x GE electrical ports; LAN: 8 x GE electrical ports, LAN/WAN switchable). Integrates routing, switching, wireless and other network functions for customers with multiple branches such as retail stores, chain stores, logistics and offices. Supports a 4G/5G wireless module with link standby, application identification and traffic control, URL filtering, application blocking and IDS/IPS, and cloud management.
Specifications
| Forwarding performance | 1Gbps |
| Fixed interfaces | WAN: GE * 2, LAN: GE * 8 |
| PoE ports | Ports 2-9 support PoE/PoE+ |
| Dimensions (W × D × H) | 260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) |
| Power consumption | < 150 W (including PoE power and module power) |
| IP protection | IP30 |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Fixed service port | Uplink WAN ports: 2 x 10/100/1000BASE-T ports; Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports; LAN ports 2 to 9 support PoE/PoE+ |
| Fixed management port | 1 x RJ45 console port |
| USB | 1 x USB 2.0 port, for connecting to the USB flash drive |
| Memory | 2 GB |
| Flash Memory | 4 GB |
| VPN performance (256- bit AES encryption) | 400 Mbps |
| Number of IPsec VPN Tunnels | 100 |
| Expansion Module | SIC-LTE-GS; LTE card (Cat-6, 2 x SIM, active-standby); SIC-LTE-GD; LTE card (Cat-6, 2 x SIM, active-active); SIC-5G-G; 5G NR in global bands single card, small plug-in card; SIC-2SFP; Expansion gigabit optical module plug-in card |
| Unit weight | 1.05 kg (2.31 lbs) |
| Recommended number of user | 300 |
| External Power Supply | Each port provides up to 30 W of power. The device provides up to 110 W of power. |
| Model | RG-RSR830-P |
Need installation or a bulk quote? Talk to our team.
