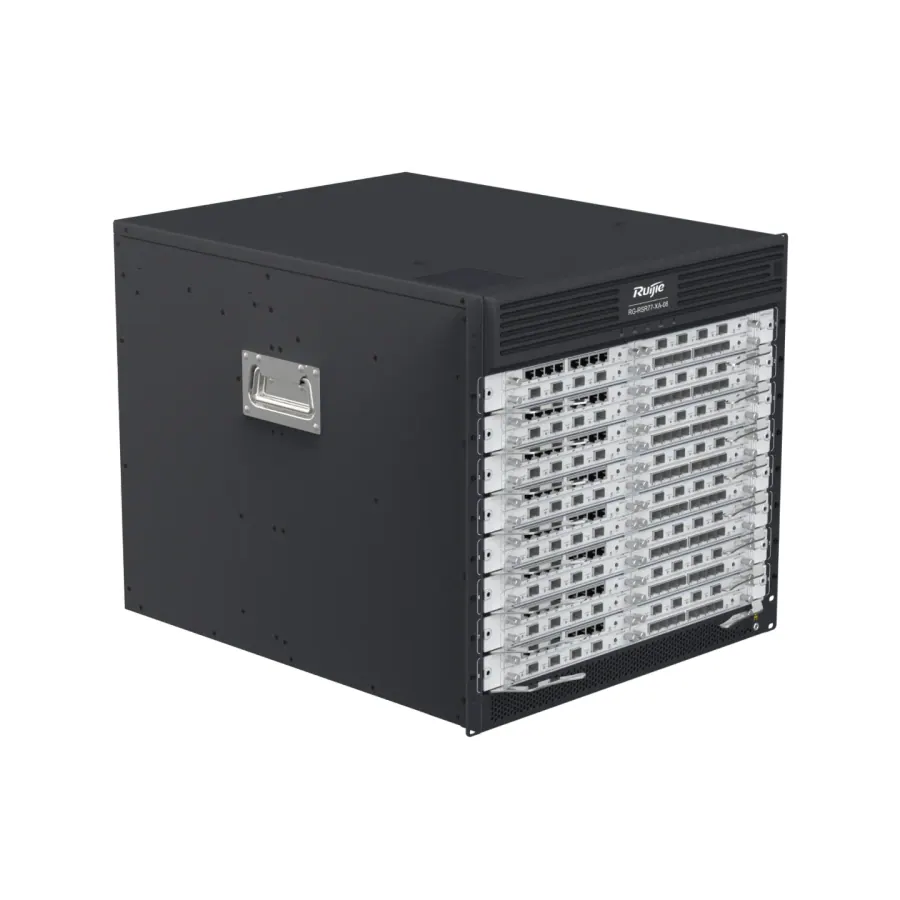

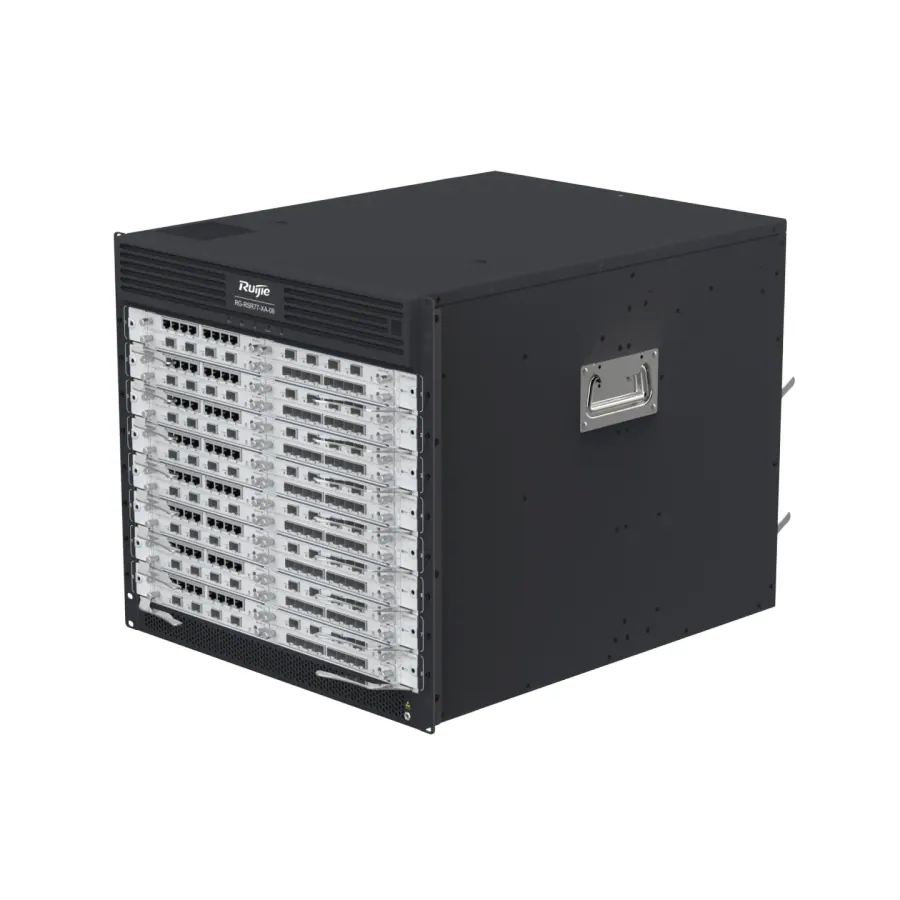

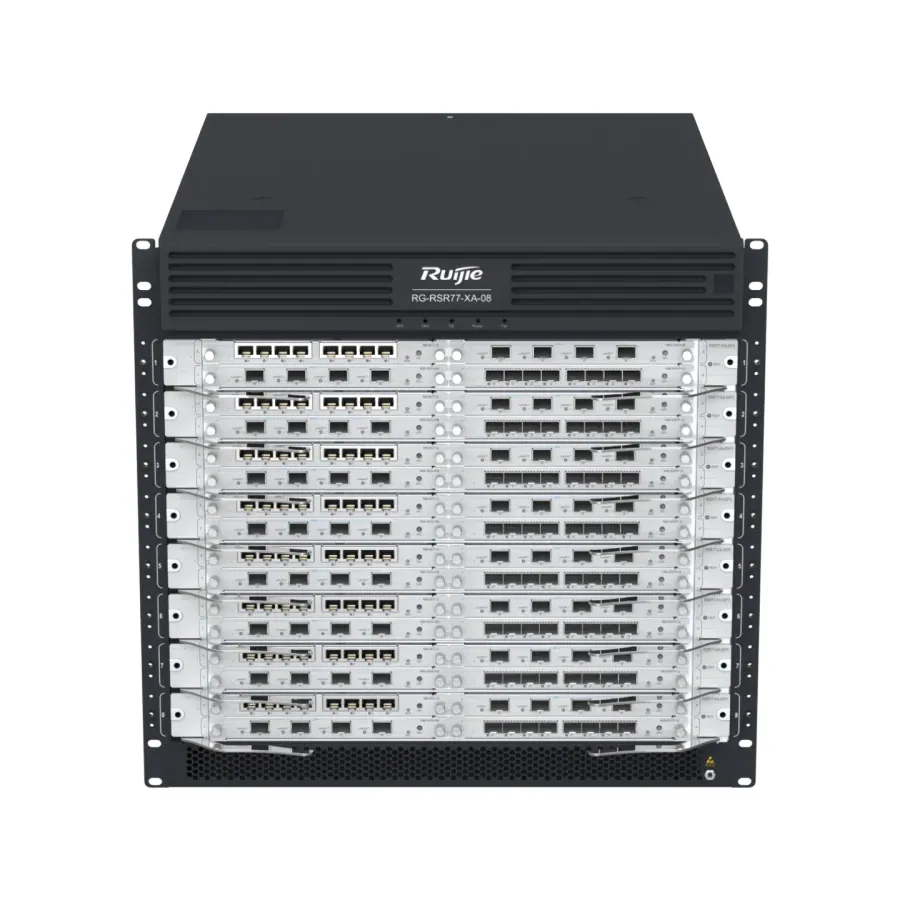

RG-RSR77-XA-08 10 RU Multiservice Core Modular Router
Model: RG-RSR77-XA-08
Pricing for this product is provided on request.
Request a quote10 RU multiservice core modular router with 8 line card slots and 32 subcard slots, mainly used as the core or aggregation node on a WAN of government, finance, carrier, education or large and medium-sized enterprise networks. Subcards cover GE, 10GE and 100GE ports (2 Mbps to 100 Gbps), with SRv6 support and redundant supervisor, switch fabric and power modules.
Specifications
| Module management port | RSR77-XA-08-CM: 1 x RJ45 console port; 1 x 10/100/1000BASE-T RJ45 MGMT port; RSR77-XA-08-DSF & RSR77-XA-08-DSF II: 1 x RJ45 console port |

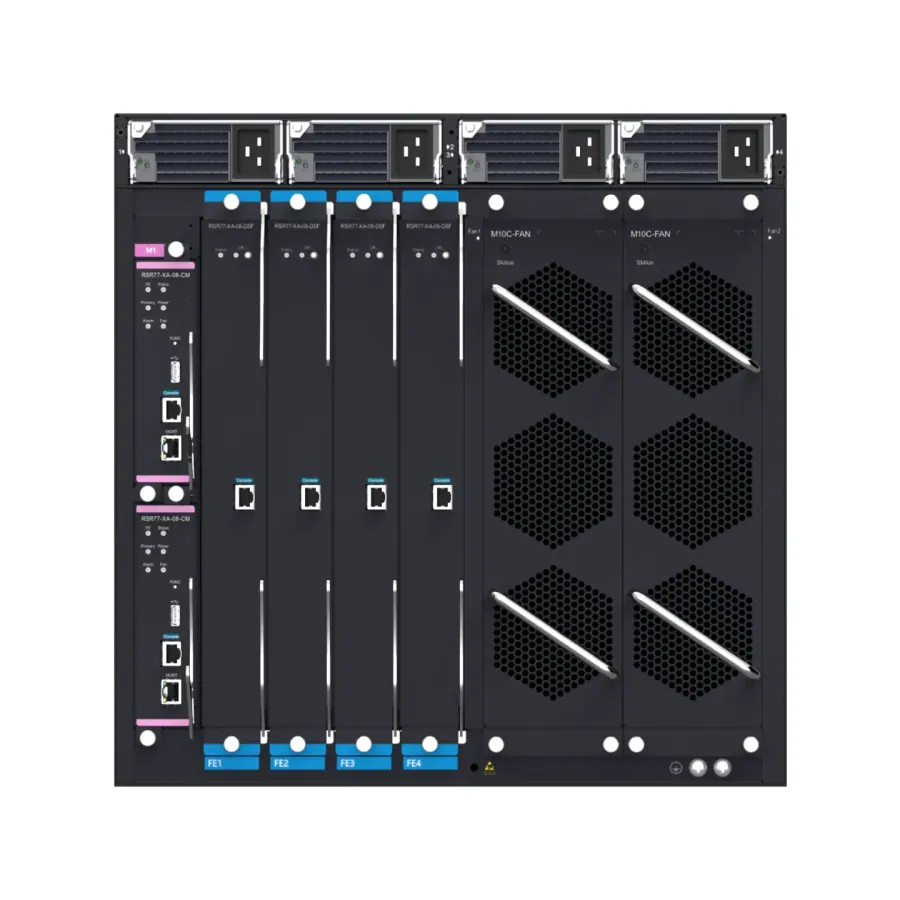

| Module slot | 2 x supervisor module slots; 8 x modular line card slots（A maximum of 32 modular port adapters are supported.）; 4 x switch fabric module slots; 4 x power module slots; 2 x fan module slots |
| Supervisor module redundancy | 1+1 redundancy |
| Switch fabric module | 4 x independent switch fabric modules |
| Switching capacity | 3.2 Tbps |
| Packet forwarding rate | 192 Mpps |
| Number of IPv4 unicast routes | 2,600,000 |
| Number of IPv6 unicast routes | 1,000,000 |
| Unit dimensions (W x D x H) | 442 mm x 606.7 mm x 442.5 mm (17.40 in. x 23.89 in. x 17.42 in.); The depth of the device with the cable management bracket is 670.1 mm (26.38 in.). |
| Rack height | 10 RU |
| Unit weight | 43.55 kg (96.01 lbs) |
| Power supply | 4 x power modules（N+M redundancy） |
| Mean time between failure (MTBF) | 342,000 hours (39 years) |
| Temperature | Operating temperature: 0ºC to 45ºC (32ºC to +113ºC); Storage temperature: –40ºC to 70ºC (–40ºF to +158ºF) |
| Model | RG-RSR77-XA-08 |
