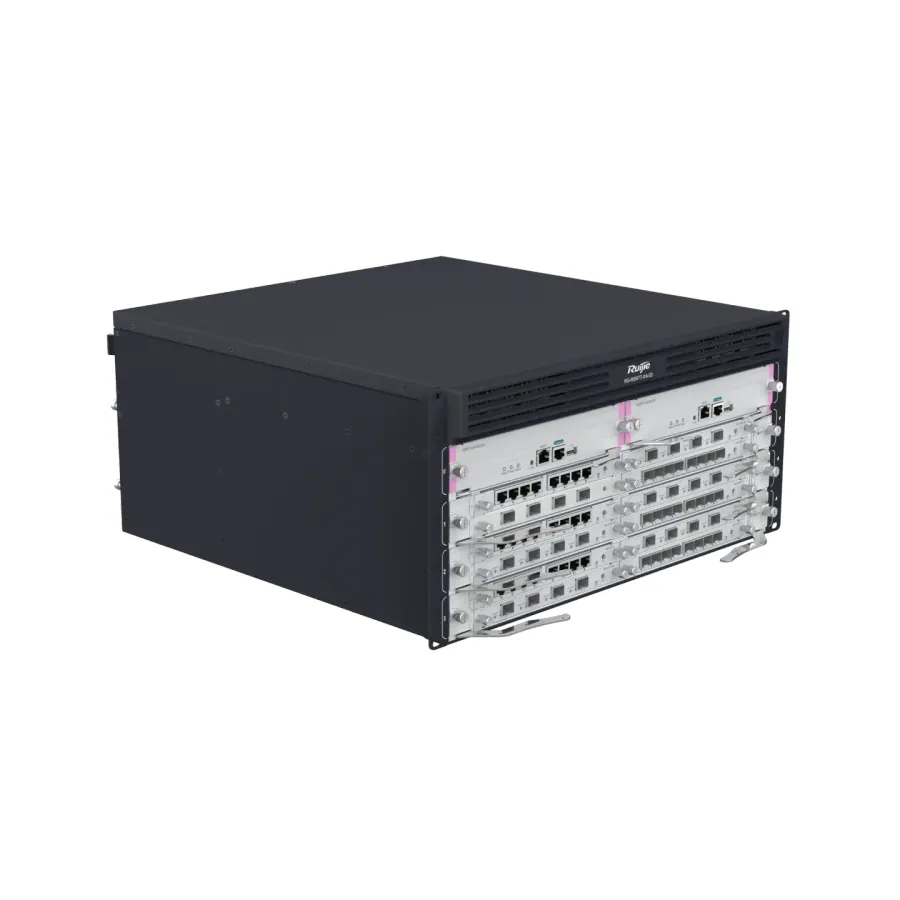

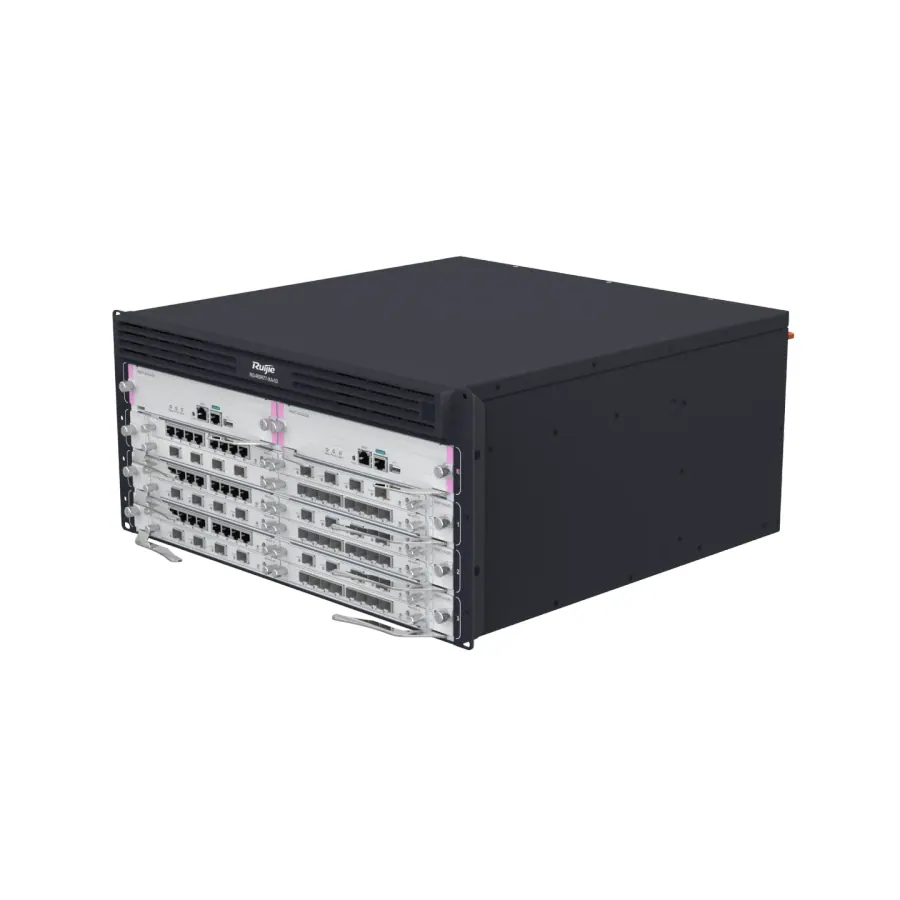

RG-RSR77-XA-03 5 RU Multiservice Core Modular Router
Model: RG-RSR77-XA-03
Pricing for this product is provided on request.
Request a quote5 RU multiservice core modular router with 3 line card slots and 12 subcard slots, mainly used as the core or aggregation node on a WAN of government, finance, carrier, education or large and medium-sized enterprise networks. Subcards cover GE, 10GE and 100GE ports (2 Mbps to 100 Gbps), with SRv6 support and redundant supervisor, switch fabric and power modules.
Specifications
| Module management port | RSR77-XA-03-CM: 1 x RJ45 console port; 1 x 10/100/1000BASE-T RJ45 MGMT port |

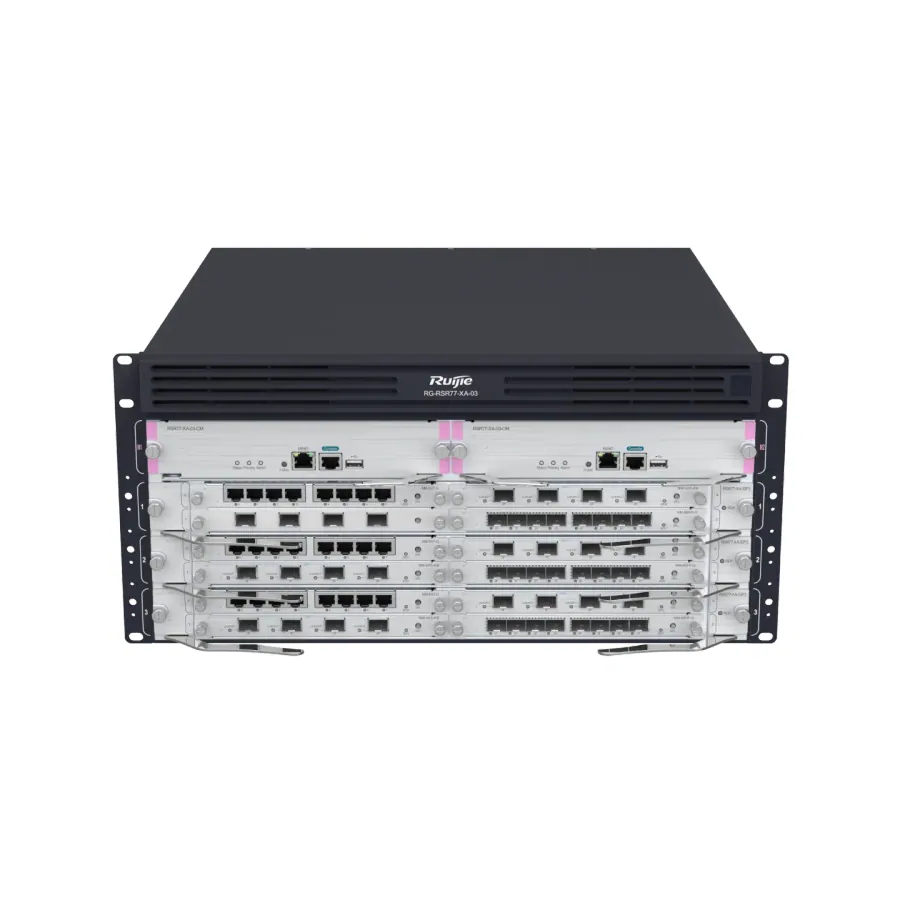

| Module slot | 2 x supervisor module slots; 3 x modular line card slots（A maximum of 12 modular port adapters are supported.）; 4 x power module slots; 1 x fan module slot |
| Supervisor module redundancy | 1+1 redundancy |
| Switch fabric module | 2 x integrated switch fabric modules |
| Switching capacity | 1.2 Tbps |
| Packet forwarding rate | 72 Mpps |
| Number of IPv4 unicast routes | 2,600,000 |
| Number of IPv6 unicast routes | 1,000,000 |
| Unit dimensions (W x D x H) | 442 mm×500 mm×219.5 mm (17.40 in. x 19.69 in. x 8.64 in); The depth of the chassis with the cable management bracket is 555 mm (21.85 in.) |
| Rack height | 5 RU |
| Unit weight | 12.5 kg (27.56 lbs) |

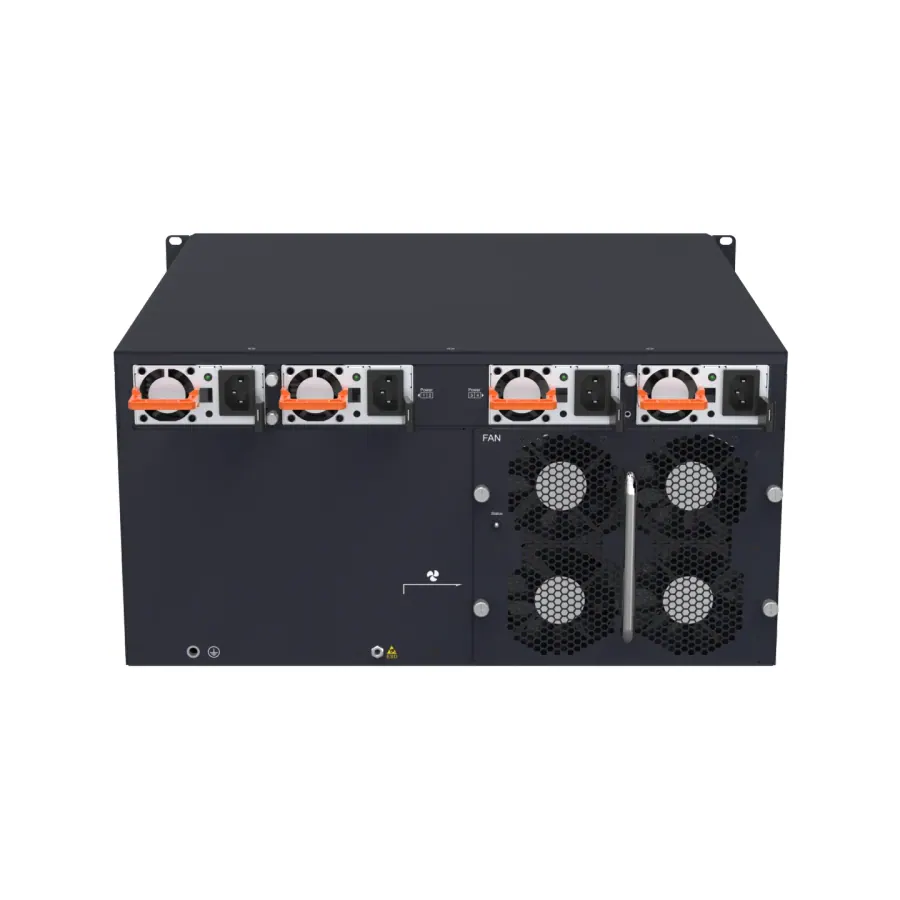

| Power supply | 4 x power modules（N+M redundancy） |
| Mean time between failure (MTBF) | 216,000 hours (24 years) |
| Temperature | Operating temperature: 0ºC to 45ºC (32ºC to +113ºC); Storage temperature: –40ºC to 70ºC (–40ºF to +158ºF) |
| Model | RG-RSR77-XA-03 |
