Ruijie

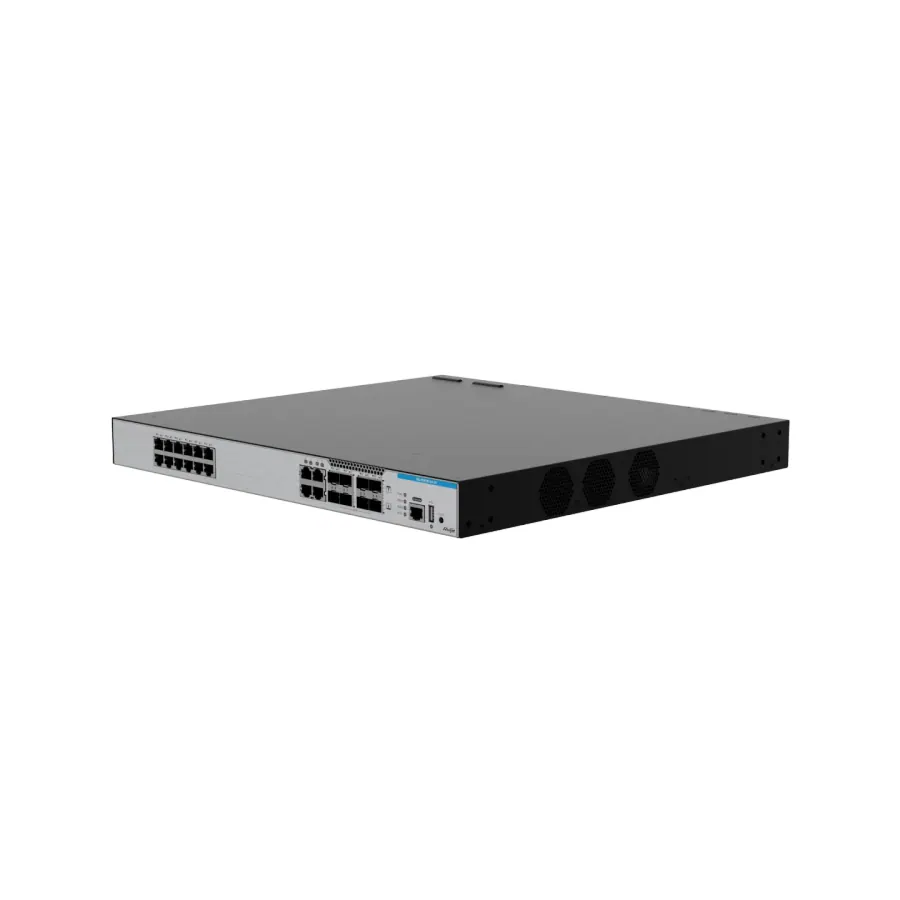

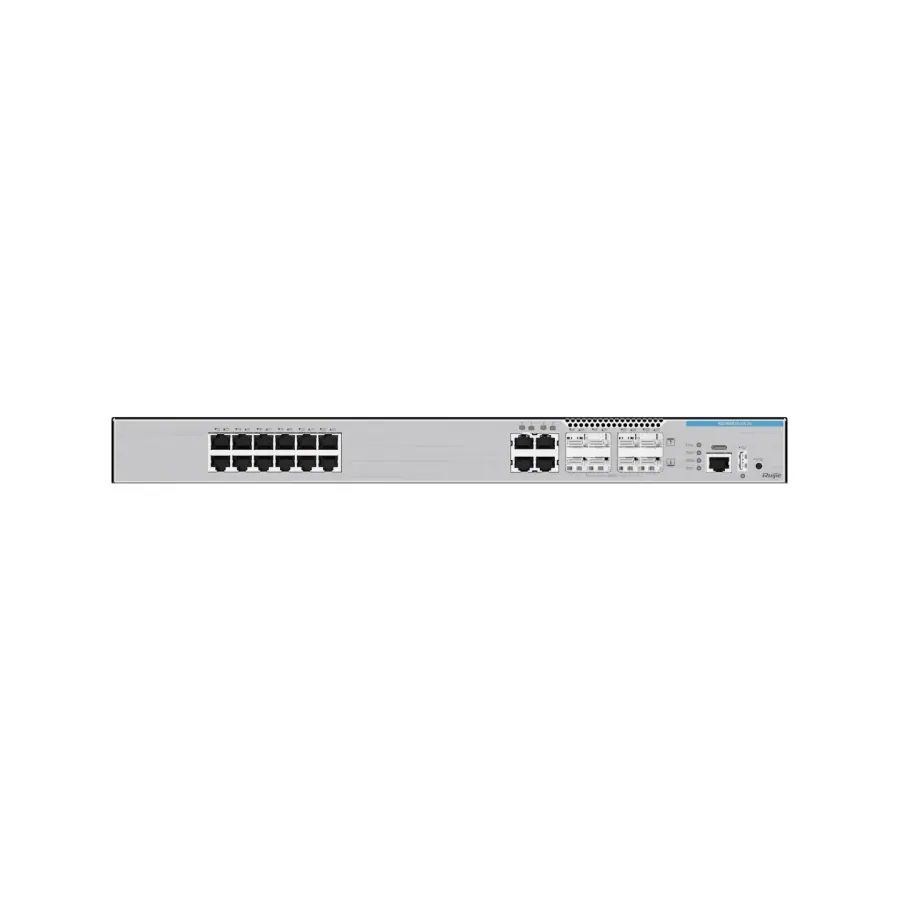

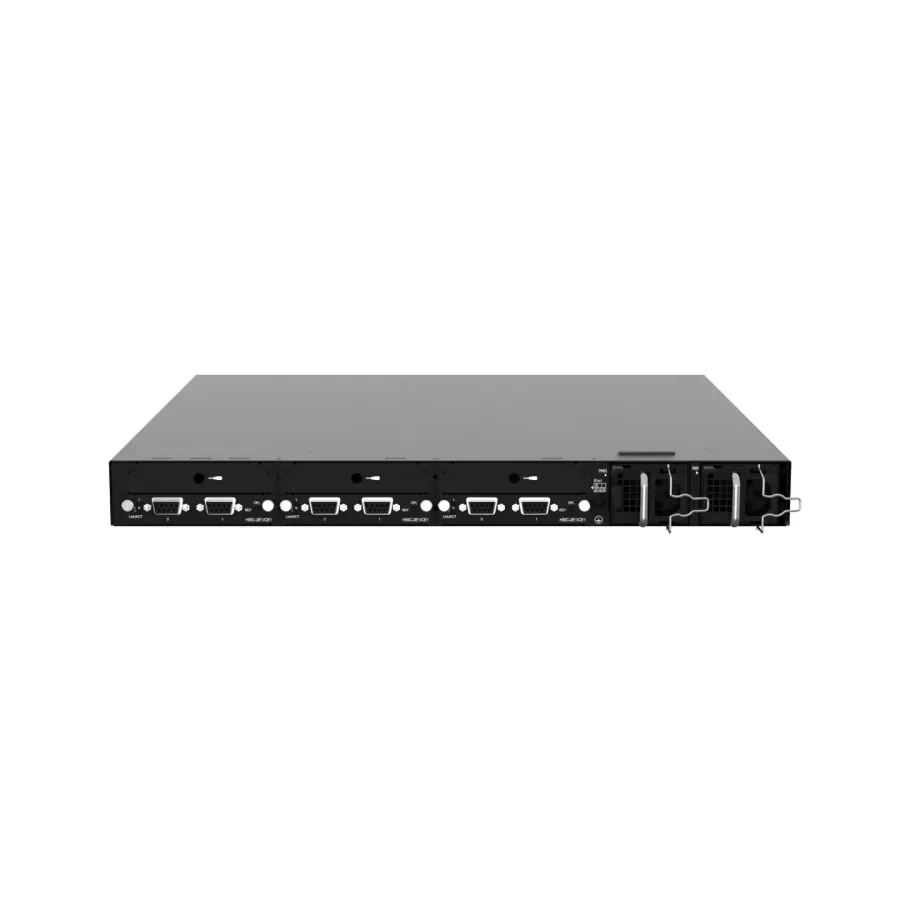

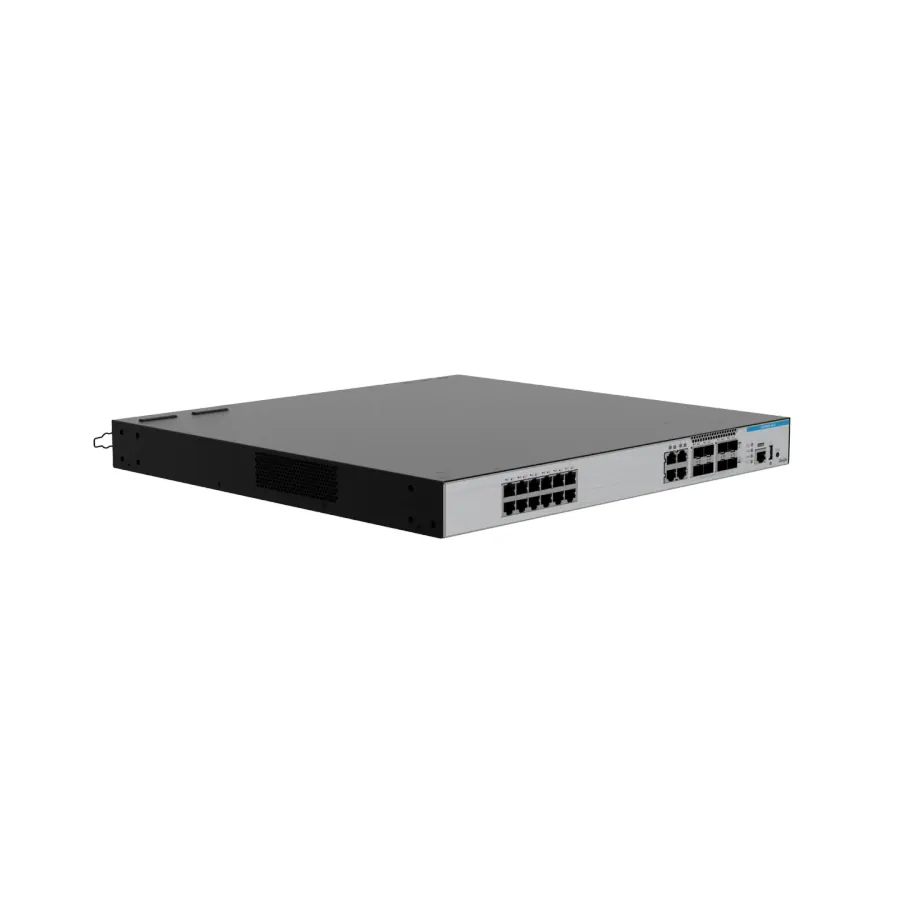

RG-RSR30-XA-24 24-Port Multi-service Fixed Aggregation Router
Model: RG-RSR30-XA-24
Pricing for this product is provided on request.
Request a quote24-port multi-service fixed aggregation router with 16 x GE RJ45 ports and 8 x 10GE SFP+ ports, recommended as an egress router for public sector commission offices, district and county-level government networks and small and medium-sized parks, and as an aggregation router for SMEs. Runs the RGOS 12.X operating system with software and hardware dual redundancy and HQoS traffic management.
Specifications
| Fixed service port | 16 x 10/100/1000BASE-T ports; 8 x 10GE SFP+ ports |
| Fixed management port | 1 x RJ45 console port |
| USB | 1 x USB 2.0 port (Type-A connector) |
| Module slot | 4 x expansion module slots; 2 x power module slots |
| Switching capacity | 272 Gbps |
| Packet forwarding rate | 4 Mpps |
| Number of IPv4 unicast routes | 300,000 |
| Number of IPv6 unicast routes | 300,000 |
| Unit dimensions (W x D x H) | 440 mm x 420 mm x 44 mm (17.32 inch. x 16.56 in. x 1.73 in.) |
| Rack height | 1 RU |
| Unit weight | < 7.8 kg (17.19 lbs, full configuration without packaging materials, with the nameplate at the bottom) |
| Maximum power consumption | 150 W |
| Power module redundancy | 1+1 redundancy |
| Temperature | Operating temperature: 0°C to 50°C (32°F to 122°F); Storage temperature: –40°C to 70°C (–40°F to +158°F) |
| Model | RG-RSR30-XA-24 |
