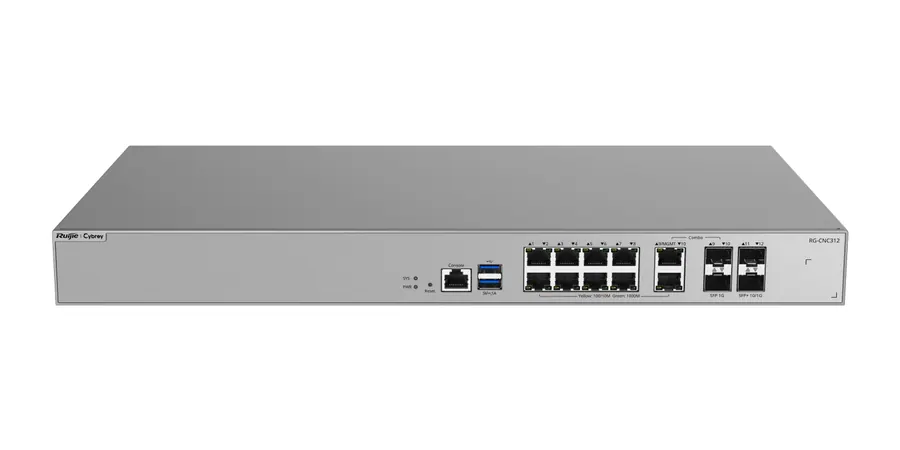

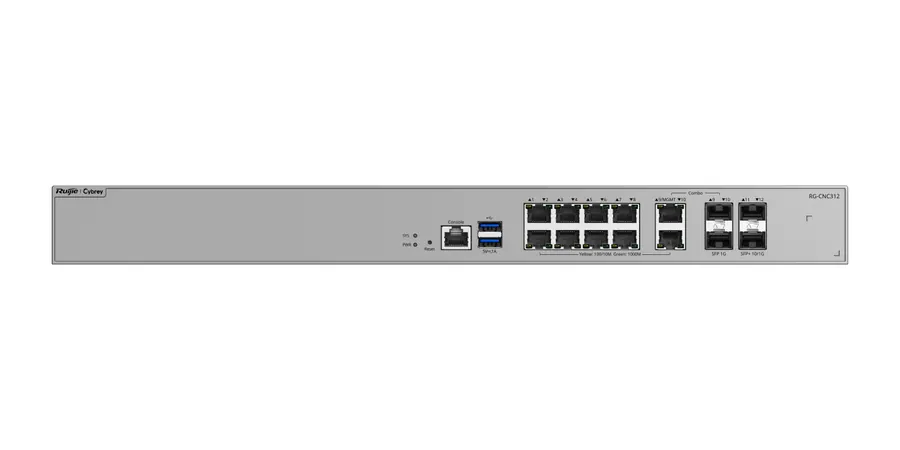

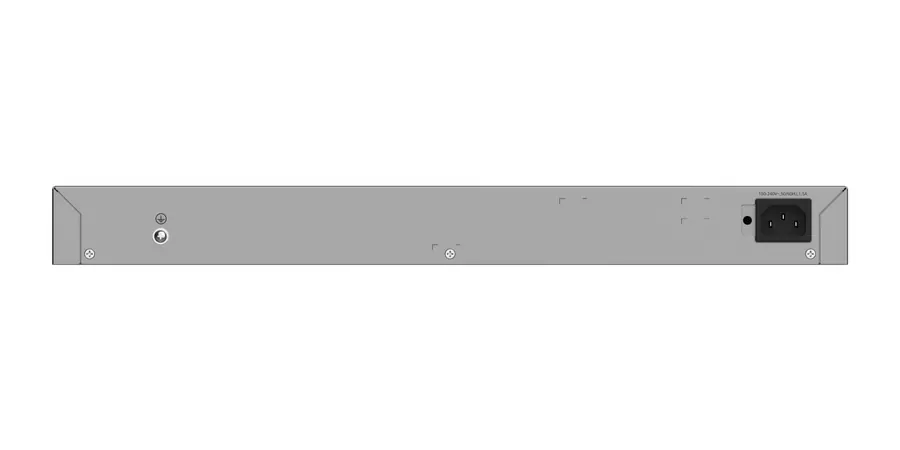

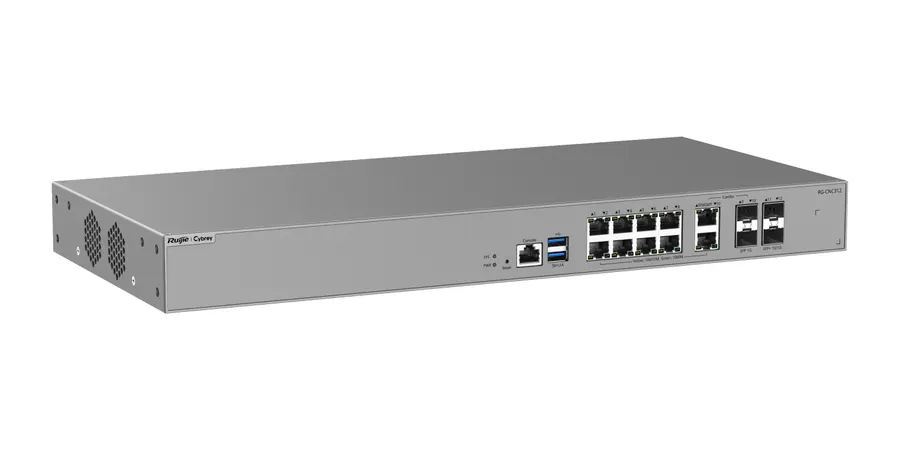

RG-CNC312 High-Performance 20 Gbps Access Controller for Campus and Multi-Site Networks
Ruijie
RG-CNC312 High-Performance 20 Gbps Access Controller for Campus and Multi-Site Networks
Model: RG-CNC312
Pricing for this product is provided on request.
Request a quoteThe RG-CNC312 is a high-performance 20 Gbps access controller for campus and multi-site networks. Suited to offices, hotels, warehouses, hospitals, and schools. Key features: Management of up to 512 APs and 5,120 clients for large-scale deployments; 20 Gbps forwarding throughput to mitigate congestion for bandwidth-hungry applications.
Specifications
| Ports | 8 x 10/100/1000BASE-T ports; 2 x 1GE SFP/RJ45 combo ports (Port 9/MGMT can be used as the management interface.); 2 x 10GE SFP+ ports |
| Dimensions (W x D x H) | 440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in., without rack-mount brackets); 486.2 mm x 205 mm x 43.6 mm (19.14 in. x 8.07 in. x 1.72 in., with rack-mount brackets) |
| Power input | Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Rated input current: 1.5 A |
| DC power supply | Fixed power supply |
| Max power consumption | 30 W |
| Mounting | Rack-mount and desktop placement |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Model | RG-CNC312 |
