RG-CAP73-O Wi-Fi 7 BE9300 Outdoor Access Point
Ruijie
RG-CAP73-O Wi-Fi 7 BE9300 Outdoor Access Point
Model: RG-CAP73-O
Pricing for this product is provided on request.
Request a quoteThe RG-CAP73-O is a Wi-Fi 7 BE9300 outdoor access point. Suited to offices, hotels, warehouses, hospitals, and schools. Key features: BE9300 Wi-Fi 7 speed for hospital campuses, enterprise plazas, and beach resorts; 4096-QAM for 20% higher peak data rates than Wi-Fi 6.
Specifications
| Wi-Fi standard | IEEE 802.11be (Wi-Fi 7), compatible with IEEE 802.11a/b/g/n/ac/ax |
| Radio design | Mode 1: Tri-radio; 6 spatial streams; Radio 1: 2.4 GHz, 2x2, MU-MIMO; Radio 2: 5 GHz, 2x2, MU-MIMO; Radio 3: 6 GHz, 2x2, MU-MIMO; Mode 2: Tri-radio; 6 spatial streams; Radio 1: 2.4 GHz, 2x2, MU-MIMO; Radio 2: 5 GHz (high band), 2x2, MU-MIMO; Radio 3: 5 GHz (low band), 2x2, MU-MIMO; Mode 3: Dual-radio; 6 spatial streams; Radio 1: 2.4 GHz, 2x2, MU-MIMO; Radio 2: 5 GHz, 4x4, MU-MIMO; Mode 4: Tri-radio; 6 spatial streams; Radio 1: 2.4 GHz, 2x2, MU-MIMO; Radio 2: 5 GHz, 2x2, MU-MIMO; Radio 3 (AI radio): 5 GHz, 2x2, MU-MIMO |
| Max data rate | Combined peak data rate: 9335 Mbps; Mode 1: Radio 1: 2.4 GHz, 688 Mbps; Radio 2: 5 GHz, 2882 Mbps; Radio 3: 6 GHz, 5765 Mbps; Mode 2: Radio 1: 2.4 GHz, 688 Mbps; Radio 2: 5 GHz (high band), 2882 Mbps; Radio 3: 5 GHz (low band), 2882 Mbps; Mode 3: Radio 1: 2.4 GHz, 688 Mbps; Radio 2: 5 GHz, 5765 Mbps; Mode 4: Radio 1: 2.4 GHz, 688 Mbps; Radio 2: 5 GHz, 2882 Mbps; Radio 3: 5 GHz, AI radio |

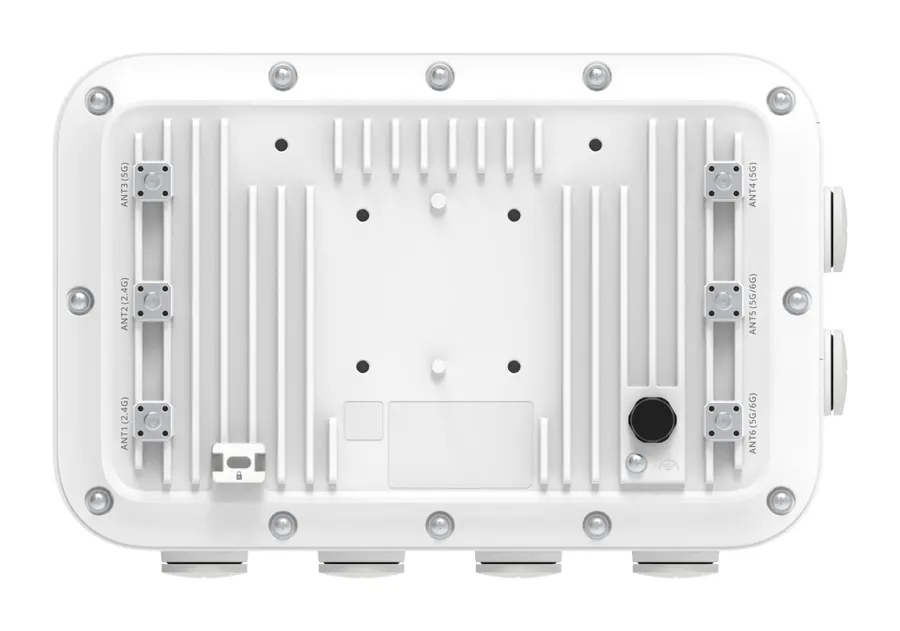

| Antenna | 2.4 GHz: 2 x built-in omnidirectional antennas, switching between built-in and external antennas; 5 GHz: 2 x built-in omnidirectional antennas, switching between built-in and external antennas; 6 GHz: 2 x built-in omnidirectional antennas (supporting both the 5 GHz and 6 GHz bands), switching between built-in and external antennas; Bluetooth: 1 x built-in omnidirectional antenna; GPS: 1 x built-in omnidirectional antenna |

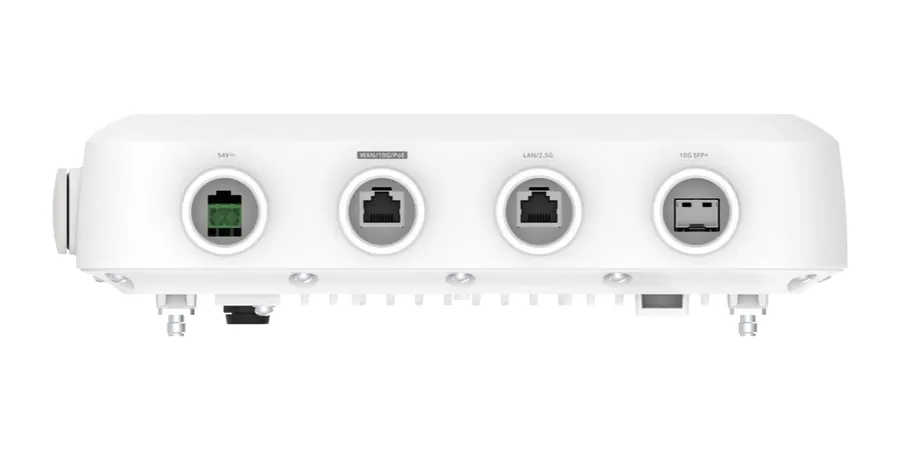

| Ports | 1 x 10/100/1000/2.5G/5G/10GBASE-T port, supporting 802.3af/at/bt-compliant PoE input. It is paired with one 10GE SFP+ port as a combo port.; 1 x 10GE SFP+ port, compatible with 2.5GE and 1GE optical transceivers. It is paired with one 10GE RJ45 port as a combo port.; 1 x 10/100/1000/2500BASE-T port |
| Bluetooth | Bluetooth 5.3; Remote maintenance through a Bluetooth serial port |
| Max associated clients | 768 |
| DC power supply | DC power adapter: 54 V, 0.8 A; DC connector dimensions: Outer diameter: 5.5 mm (0.22 in.); Inner diameter: 2.1 mm (0.08 in.); Depth: 10 mm (0.39 in.) |
| PoE power supply | IEEE 802.3af (PoE); IEEE 802.3at (PoE+); IEEE 802.3bt (PoE++) |
| Max power consumption | 25.96 W (excluding heating module); 43 W (including heating module) |
| Operating temperature | –40°C to +65°C (–40°F to +149°F) |
| Dimensions (W x D x H) | 273 mm x 78 mm x 178 mm (10.75 in. x 3.07 in. x 7.01 in., without the mounting bracket) |

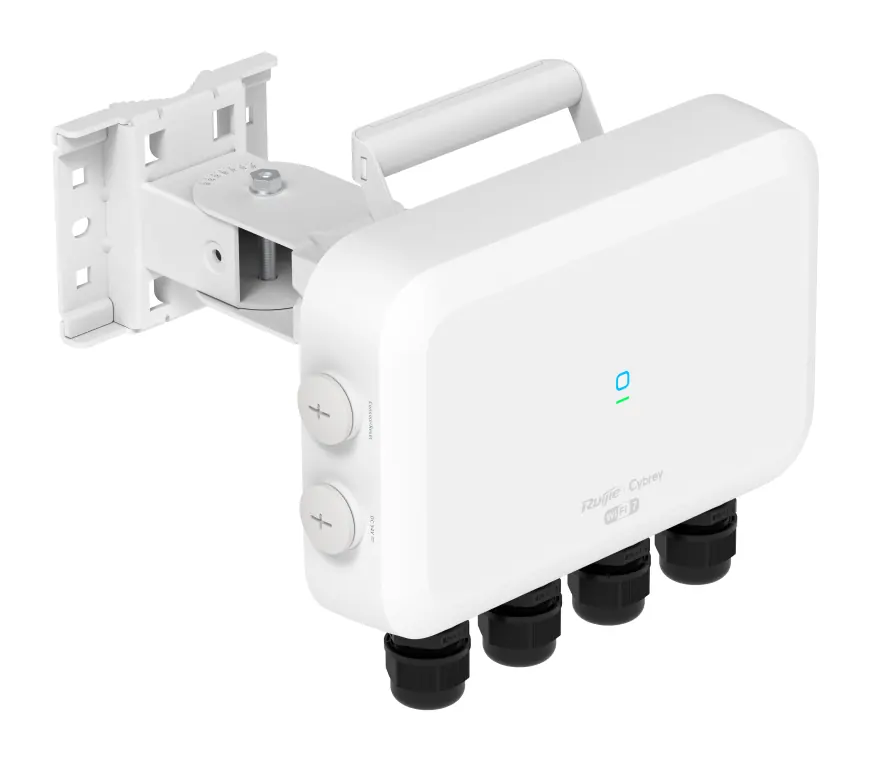

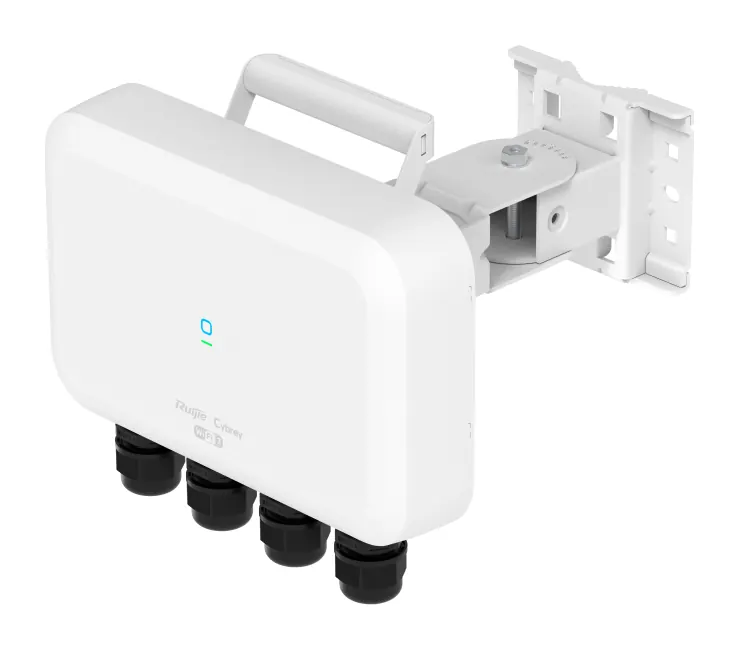

| Mounting | Wall-mount and pole-mount |
| Model | RG-CAP73-O |
