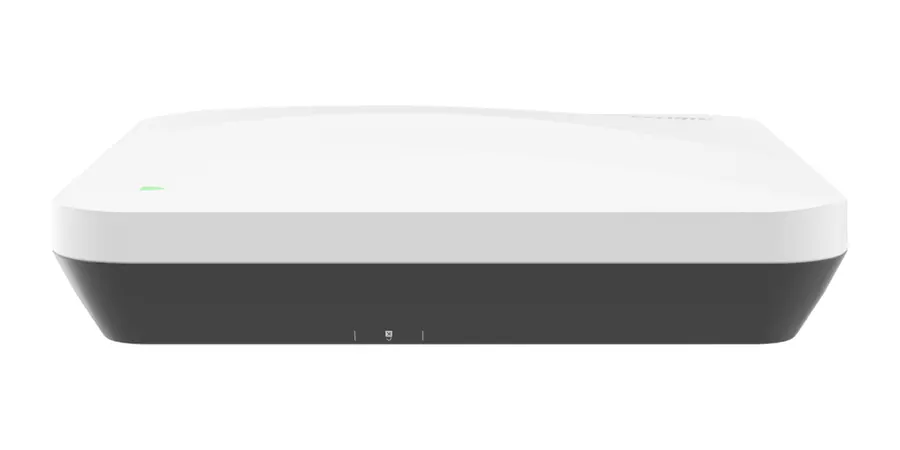

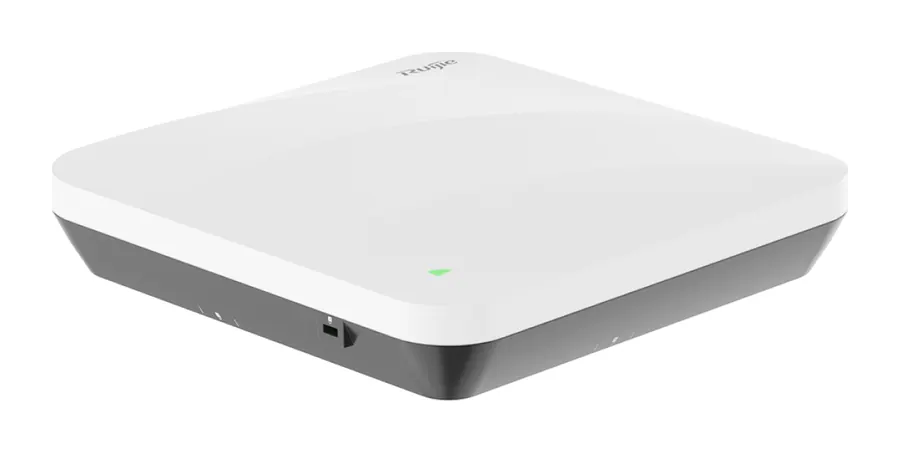

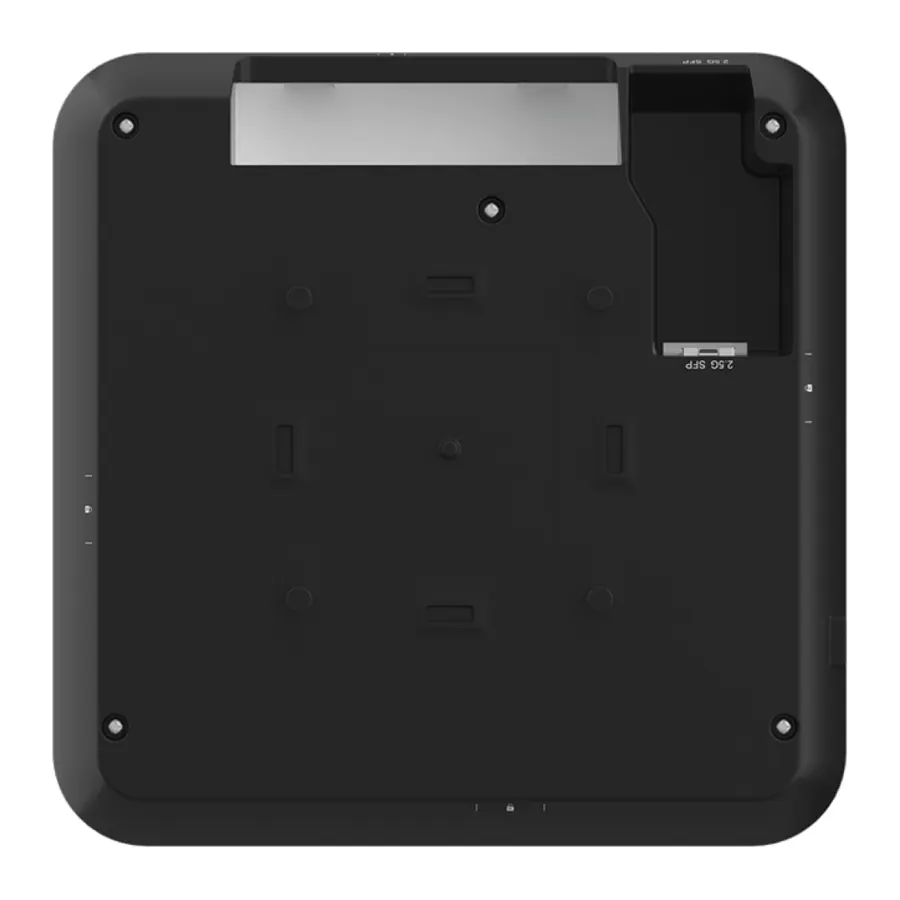

RG-AP820-L(V3) Wi-Fi 6 AX3000 Indoor AP
Ruijie
RG-AP820-L(V3) Wi-Fi 6 AX3000 Indoor AP
Model: RG-AP820-L(V3)
Pricing for this product is provided on request.
Request a quoteThe RG-AP820-L(V3) is a Wi-Fi 6 AX3000 indoor AP. Suited to indoor scenarios for higher education, government, general education, finance, and business sectors. Key features: 2.5 Gbps SFP port, multi-Gigabit networking; Next-generation AX3000 chip, supporting 160 MHz 2.976 Gbps.
Specifications
| Wi-Fi standard | 802.11a/b/g/n/ac/ax |
| Radio design | Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2); up to 4 spatial streams |
| Max data rate | 2.976 Gbps |
| Antenna | Built-in omnidirectional antennas |

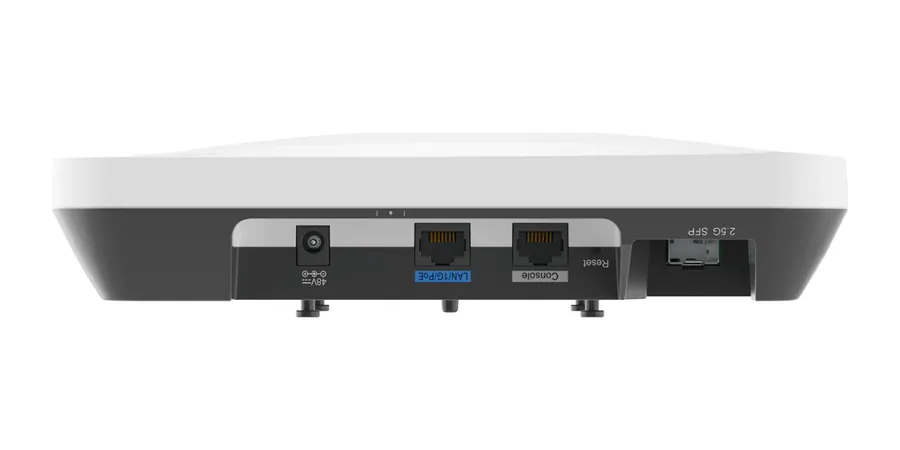

| Ports | 1 x 10/100/1000BASE-T port; 1 x 2.5GE SFP port, compatibility with 1GE module |
| Bluetooth | Bluetooth 5.1 |
| Max associated clients | 256 |
| Power supply | 48 V DC/0.6 A power supply; PoE (802.3af) |
| Max power consumption | 12.95 W |
| Operating temperature | –10°C to +50°C (14°F to +122°F) |
| Dimensions (W x D x H) | 220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in.) |
| Mounting | Wall/Ceiling-mount |
| Model | RG-AP820-L(V3) |
Need installation or a bulk quote? Talk to our team.
