RG-AP7136-R Wi-Fi 7 Quad-Radio Indoor Access Point
Model: RG-AP7136-R
Pricing for this product is provided on request.
Request a quoteThe RG-AP7136-R is a Wi-Fi 7 quad-radio indoor access point. Ideal for scenarios including small and medium-sized offices, conference rooms, and classrooms. Key features: Enterprise-class Wi-Fi 7 revolution, delivering a data rate of up to 9.335 Gbps; Seamless roaming with AI radio: continuous service guaranteed.
Specifications
| Wi-Fi standard | 802.11a/b/g/n/ac/ax/be |
| Radio design | Quad-radio: 2.4 GHz (2x2), 5 GHz (2x2), 6 GHz (2x2), 2.4 GHz/5 GHz (2x2), up to 8 spatial streams |
| Max data rate | 9.335 Gbps |
| Antenna | Built-in omnidirectional smart antennas |

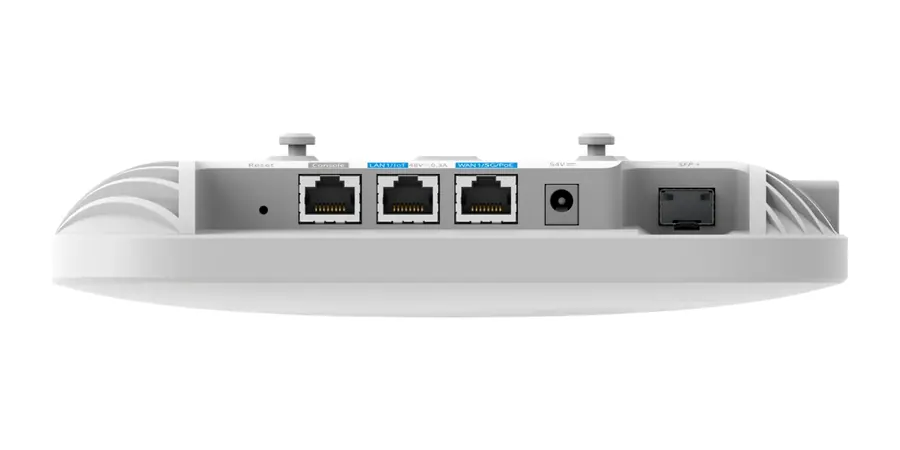

| Ports | 1 x 10GE SFP+/5GE RJ45 combo port; 1 x 10/100/1000BASE-T port |
| Bluetooth | Bluetooth 5.3 |
| Max associated clients | 768 (up to 256 STAs per radio) |
| Power supply | 54 V DC/1.25 A power input over DC connector; PoE/PoE+/PoE++ input, in compliance with IEEE 802.3af/at/bt |
| Max power consumption | 51 W |
| Operating temperature | –10°C to +50°C (14°F to 122°F) |
| Dimensions (W x D x H) | 220 mm x 220 mm x 42.7 mm (8.66 in. x 8.66 in. x 1.68 in.) |
| Mounting | Ceiling/Wall-mount |
| Model | RG-AP7136-R |
