Home / Shop / Wireless Networking / RG-AP680-AR Wi-Fi 6 Quad-Radio 10.755 Gbps High-Density Outdoor Access Point

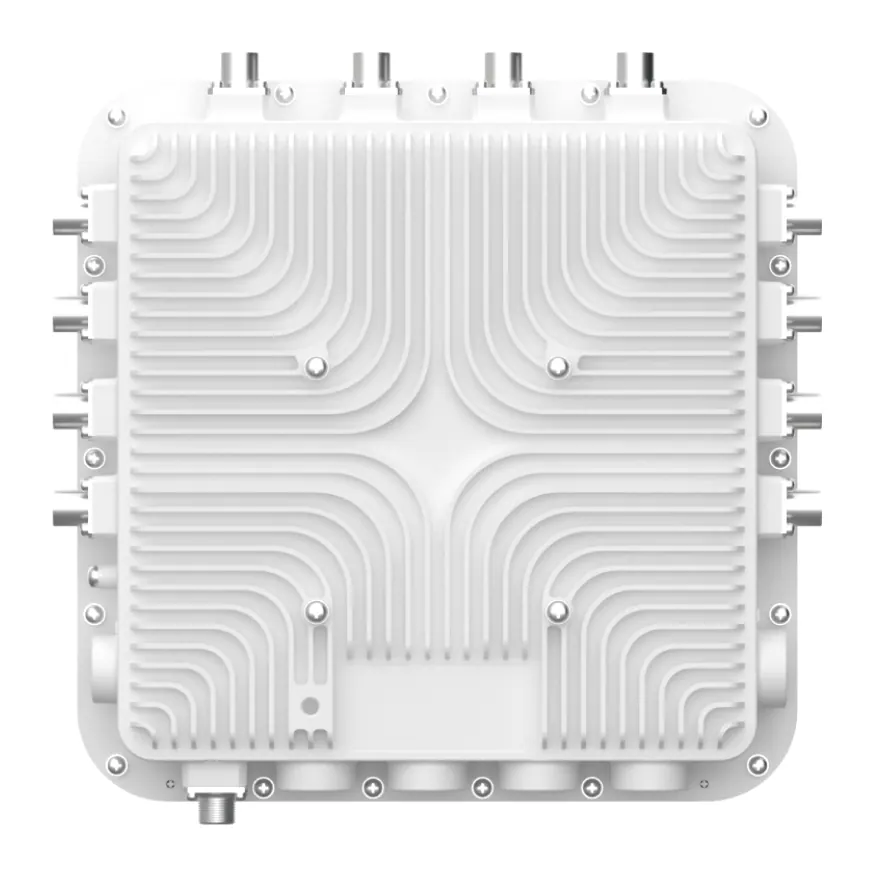

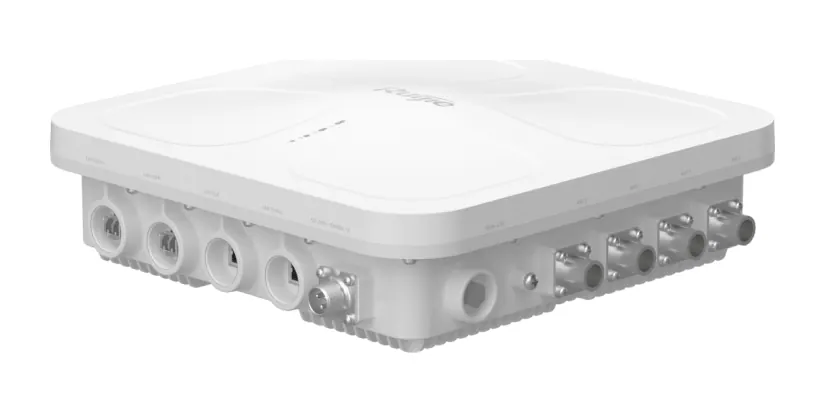

RG-AP680-AR Wi-Fi 6 Quad-Radio 10.755 Gbps High-Density Outdoor Access Point
Ruijie
RG-AP680-AR Wi-Fi 6 Quad-Radio 10.755 Gbps High-Density Outdoor Access Point
Model: RG-AP680-AR
Pricing for this product is provided on request.
Request a quoteThe RG-AP680-AR is a Wi-Fi 6 quad-radio 10.755 Gbps high-density outdoor access point. Suited to outdoor scenarios covering higher education, wireless cities, energy, and business malls. Key features: 10G optical port and 5G Ethernet port for flexible networking; Upgraded to Wi-Fi 6, a combined data rate of up to 10.755 Gbps.
Specifications
| Wi-Fi standard | 802.11a/b/g/n/ac/ax |
| Radio design | Quad-radio: 2.4 GHz (4x4), 5 GHz (4x4 and 4x4), 2.4G/5GHz (2x2), up to 14 spatial streams |
| Max data rate | 10.755 Gbps |

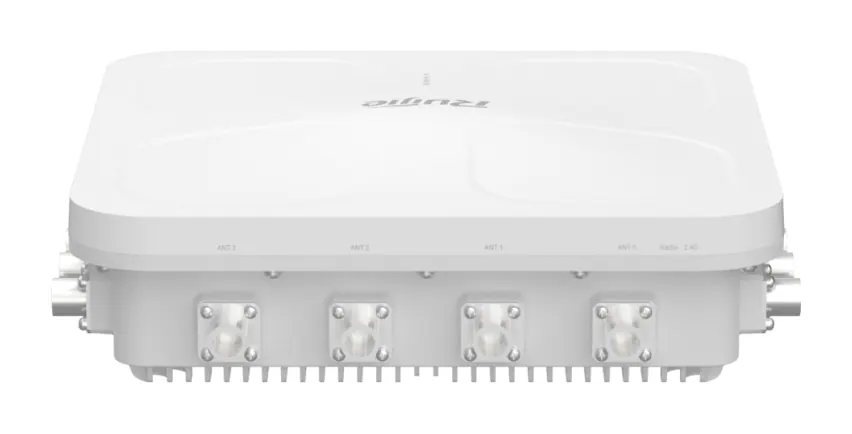

| Antenna | Built-in omnidirectional antennas |

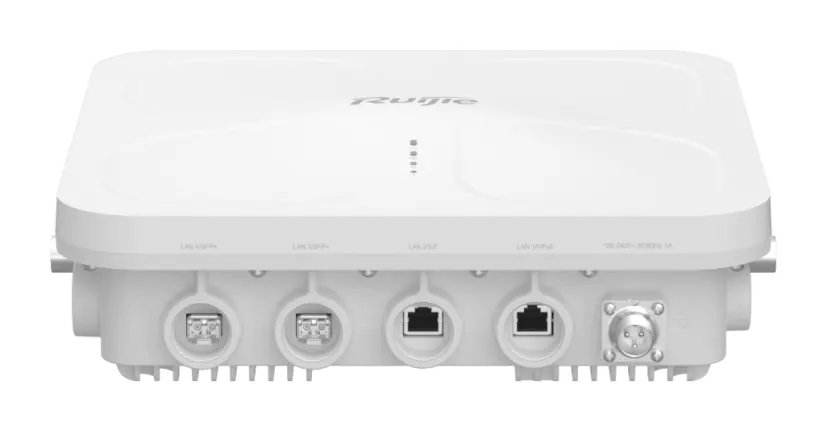

| Ports | 1 x 100/1000/2.5G/5GBase-T port; 1 x 100/1000Base-T port, 2 x 10GE SFP+ ports |
| Bluetooth | Bluetooth 5.1 |
| Power supply | 100–240 V AC power supply; PoE/PoE+/PoE++ (802.3af/at/bt) |
| Max power consumption | 50 W |
| External power supply | Yes |
| Operating temperature | –40°C to +70°C (–40°F to +158°F) |
| IP rating | IP68 |
| Dimensions (W x D x H) | 300 mm x 300 mm x 94 mm (11.81 in. x 11.81 in. x 3.70 in.) |
| Mounting | Wall/Pole mounting |
| Warranty | 3 Years |
| Model | RG-AP680-AR |
Need installation or a bulk quote? Talk to our team.
