RG-AP180 Wi-Fi 6 Dual Radio 1.775 Gbps Indoor Wall Plate Wireless AP
Ruijie
RG-AP180 Wi-Fi 6 Dual Radio 1.775 Gbps Indoor Wall Plate Wireless AP
Model: RG-AP180
Pricing for this product is provided on request.
Request a quoteThe RG-AP180 is a Wi-Fi 6 dual radio 1.775 Gbps indoor wall plate wireless AP. Recommended for indoor scenarios such as dormitories, offices, hotels, stores, and classrooms. Key features: Multi-service linkage, all-in-one for office scenarios; 1.775 Gbps ultra-fast speed with Wi-Fi 6.
Specifications
| Wi-Fi standard | 802.11a/b/g/n/ac/ax |
| Radio design | Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2); up to 4 spatial streams |
| Max data rate | Combined peak data rate: 2.4 GHz + 5 GHz, 1.775 Gbps |
| Antenna | Built-in intelligent antennas |

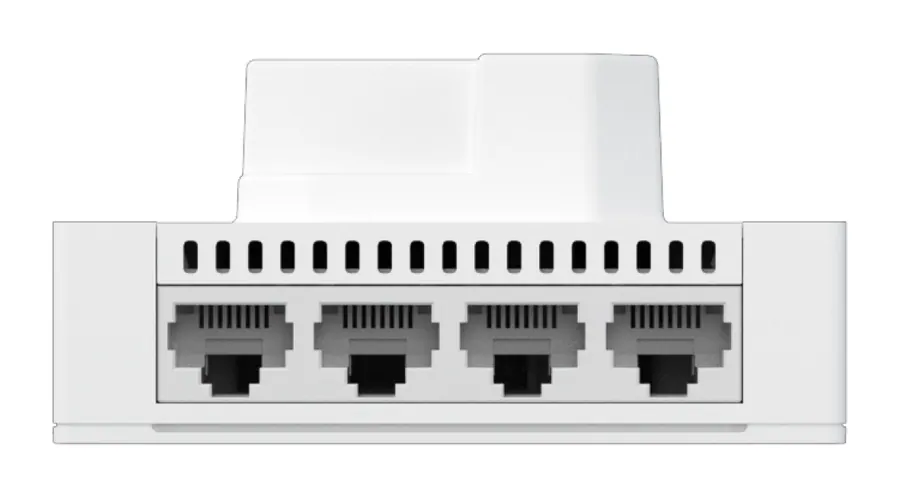

| Ports | Uplink: 1 x 10/100/1000BASE-T port, ; Downlink: 4 x 10/100/1000BASE-T ports |
| Bluetooth | Bluetooth 5.0 |
| Power supply | 12 V DC/1 A power supply; PoE/PoE+ (802.3af/at) |
| Max power consumption | 10 W |
| External power supply | No |
| Operating temperature | –10°C to +50°C (14°F to +122°F) |
| Dimensions (W x H x D) | In-wall: 86 mm x 116 mm x 19 mm (3.39 in. x 4.57 in. x 0.75 in.); Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.) |
| Mounting | Wall mount/ 86-mm and EU standard junction boxes |
| Warranty | 3 Years |
| Model | RG-AP180 |
