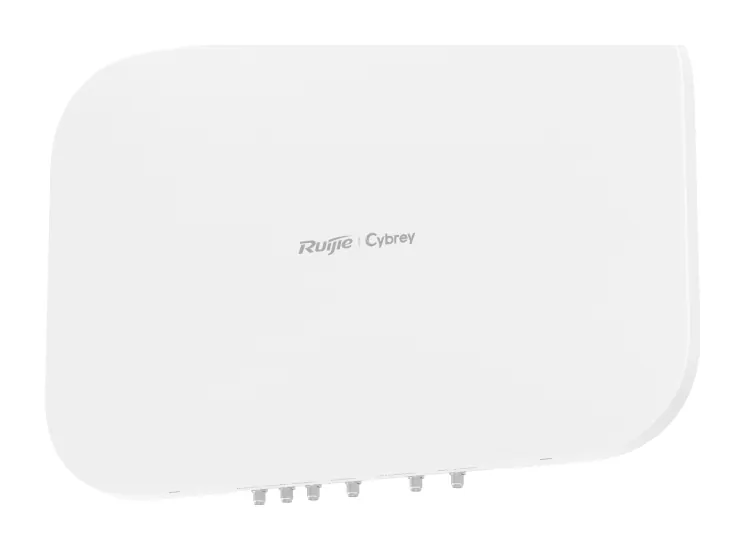

RG-ANT90-T6 Tri-band Six-Element Cross-Polarized High-Gain Outdoor Antenna
Ruijie
RG-ANT90-T6 Tri-band Six-Element Cross-Polarized High-Gain Outdoor Antenna
Model: RG-ANT90-T6
Pricing for this product is provided on request.
Request a quoteThe RG-ANT90-T6 is a tri-band six-element cross-polarized high-gain outdoor antenna. Suited to offices, hotels, warehouses, hospitals, and schools. Key features: Six-element, cross-polarized antenna supporting tri-band 2.4/5/6 GHz Wi-Fi; 11 dBi peak gain on 5 GHz and 6 GHz, 9 dBi on 2.4 GHz for stronger, longer-range signals.
Specifications
| Operating frequency bands | Band 1: 2400–2500 MHz; Band 2: 5150–6425 MHz; Band 3: 6425–7125 MHz |
| Polarization | Vertical and horizontal polarization |
| Antenna gain | Band 1: 9 dBi; Band 2: 11 dBi; Band 3: 11 dBi |
| 3-dB azimuth beamwidth | Band 1: 65°±10°; Band 2: 65°±10°; Band 3: 60°±10° |
| 3-dB elevation beamwidth | Band 1: 27°±5°; Band 2: 15°±5°; Band 3: 15°±5° |
| Antenna connector | 6 x RP-SMA female antenna connectors |
| Housing material | PC |
| Dimensions (W x D x H) | 360 mm x 240 mm x 45 mm (14.17 in. x 9.45 in. x 1.77 in.) |
| Unit weight | 0.97 kg (2.14 lbs, without the mounting bracket) |
| Color | White |
| Maximum input power | 30 dBm per port |
| IP rating | IP55 |

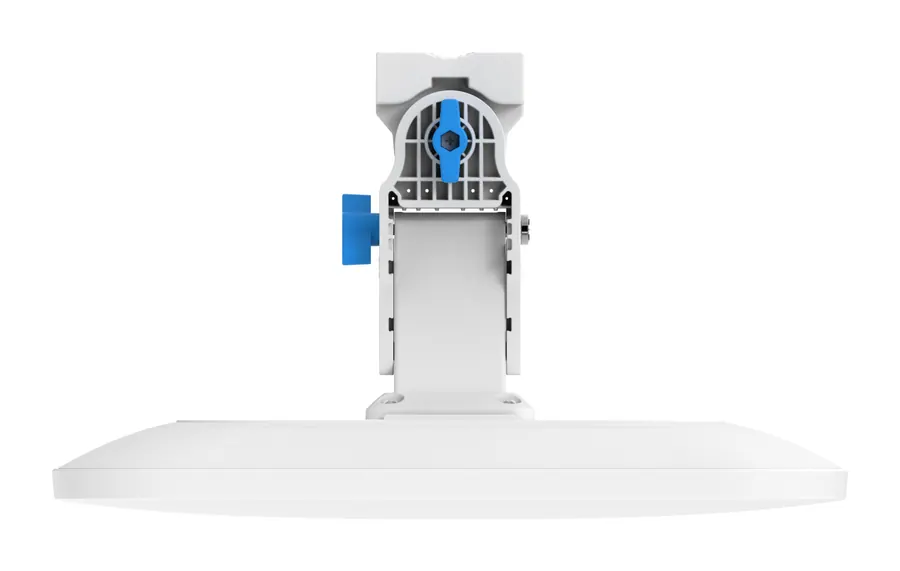

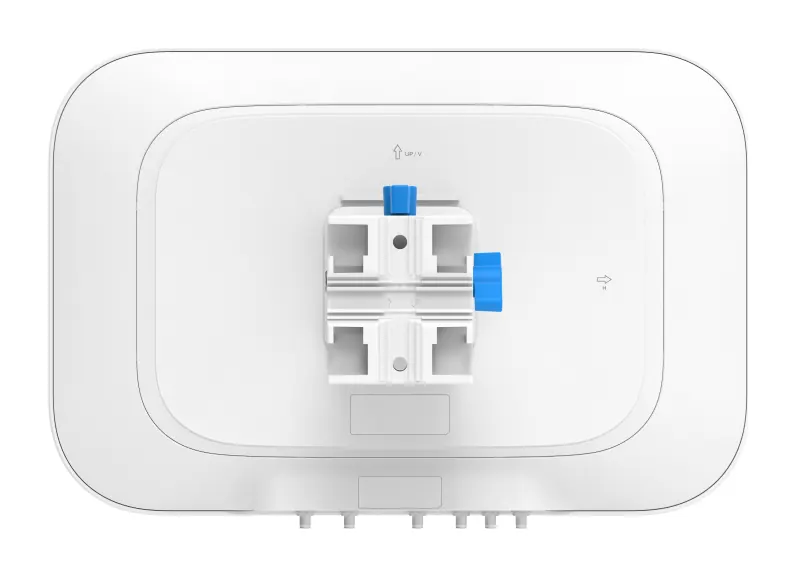

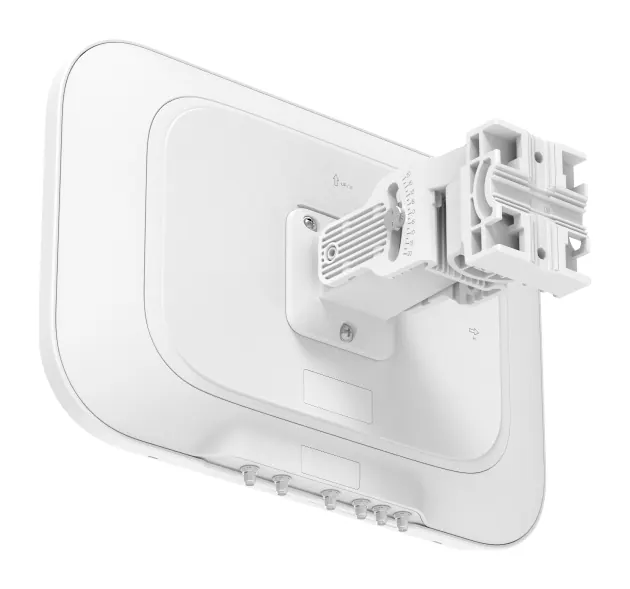

| Mounting | Wall-mount and pole-mount |
| Certification | CE |
| Model | RG-ANT90-T6 |
Need installation or a bulk quote? Talk to our team.
