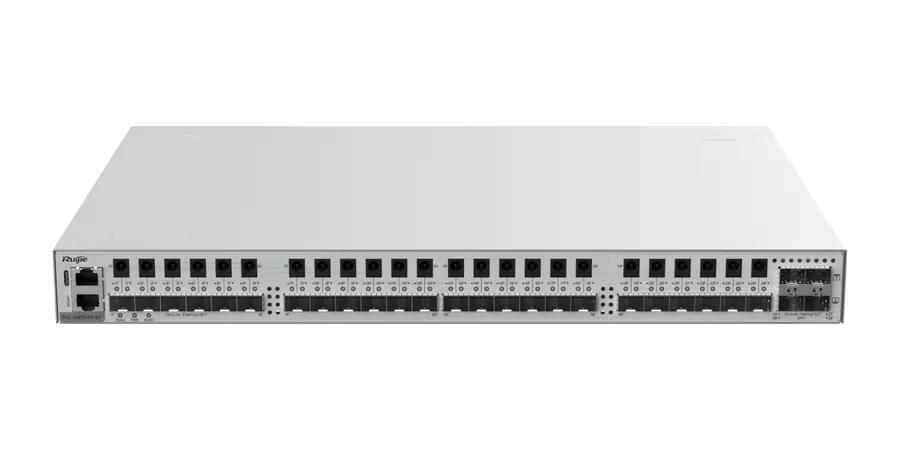

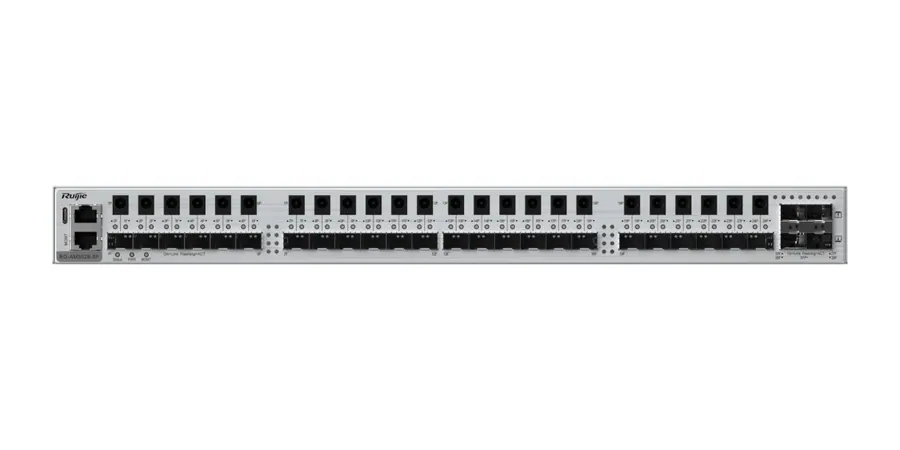

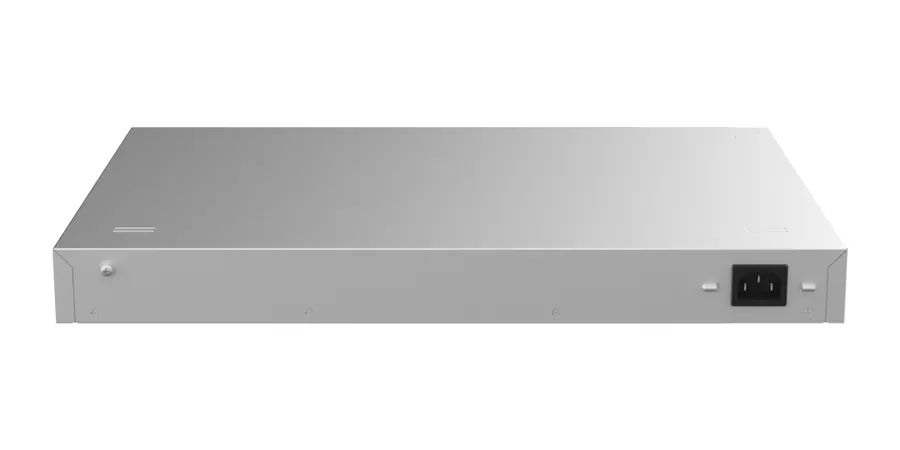

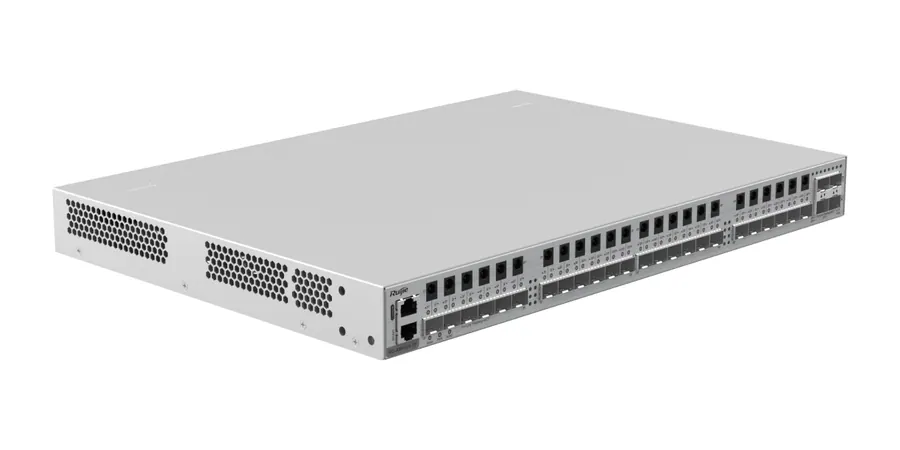

RG-AM5528-SF Simplified Optical Ethernet (SOE) Master Access Point
Ruijie
RG-AM5528-SF Simplified Optical Ethernet (SOE) Master Access Point
Model: RG-AM5528-SF
Pricing for this product is provided on request.
Request a quoteThe RG-AM5528-SF is a simplified optical Ethernet (SOE) master access point. Recommended for deployment in schools, hotels, medical care, office, production workshops, etc. Key features: Connection with APs through hybrid cables, realize long distance and fast transmission; Full 2.5G downlink optical ports, fully maximizing the AP performance.
Specifications
| Ports | Uplink: 4 x 10GE SFP+ ports; downlink: 24 x 1GE/2.5GE SFP ports with 24 PoE-out ports (ports 1-20 PoE/PoE+ up to 30 W each, ports 21-24 PoE/PoE+/PoE++ up to 90 W each; 480 W maximum PoE output) |
| Management ports | 1 x RJ45 console port; 1 x 10/100/1000BASE-T MGMT port |
| Dimensions (W x D x H) | 442 mm x 315 mm x 43.6 mm (17.40 in. x 12.40 in. x 1.72 in.) |
| Weight | 4.6 kg (10.14 lbs) |
| Rack height | 1 RU |
| Max power consumption | Without load: < 42 W; With full load: < 530 W |
| Power supply | One 550 W built-in power module (AC input, DC output); input 176 V AC to 240 V AC, 50 Hz to 60 Hz |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Mounting | Rack-mount |
| Model | RG-AM5528-SF |
