Conceal C83
JBL
Conceal C83
Model: Conceal C83
$1,440
≈ UGX 5,472,000 · pay with MTN MoMo, Airtel Money or card

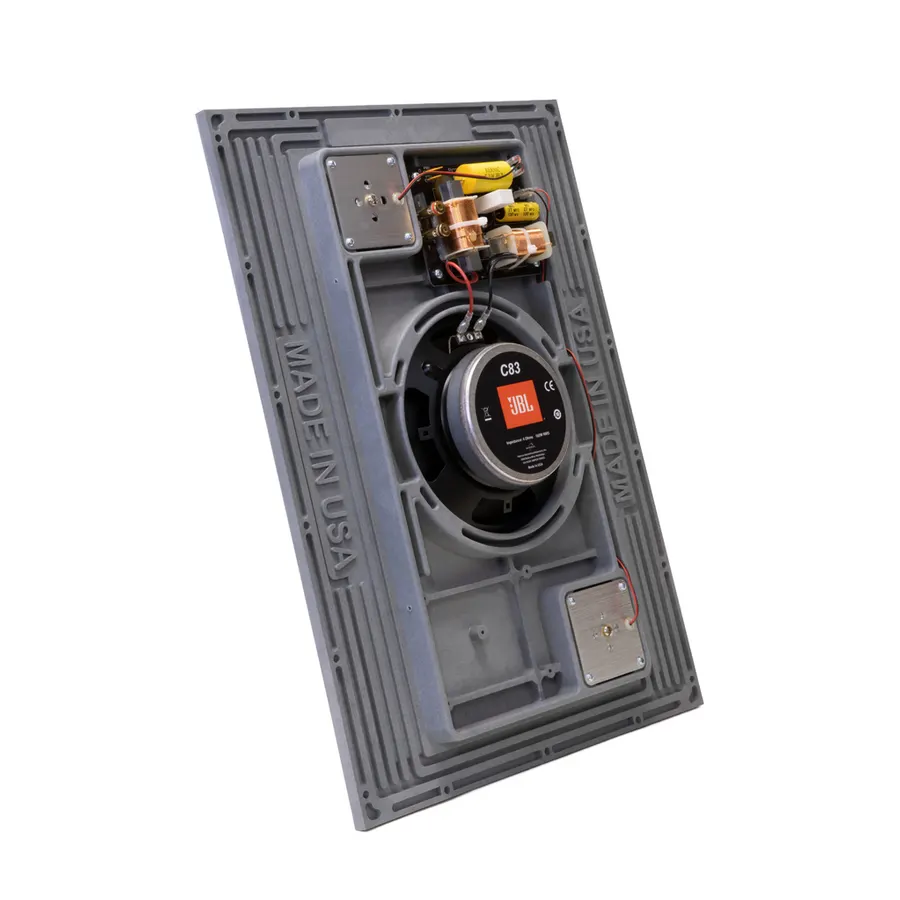

Conceal C83 is an 8-inch (200mm) 3-element Invisible Loudspeaker. Key specs: 45 Hz - 20 kHz (-6 dB) measured in-room frequency response.
Specifications
| Type | 3-way In-Wall/In-Ceiling loudspeaker |
| Low Frequency Driver | 8-inch (203mm) woofer with 1.5-inch (38mm) voice coil |
| Mid Frequency Driver | 1.18-inch (30mm) voice coil transducer with neodymium magnet |
| High Frequency Driver | 1-inch (25mm) voice coil transducer with neodymium magnet |
| Recommended Amplifier Power | 50 - 160 WRMS |
| Impedance | 4 Ohm |
| Loudspeaker Sensitivity | 84 dB/1W/1m measured in-room |
| Frequency response | 45 Hz - 20 kHz (-6 dB) measured in-room |
| Crossover Frequency | 500 Hz |

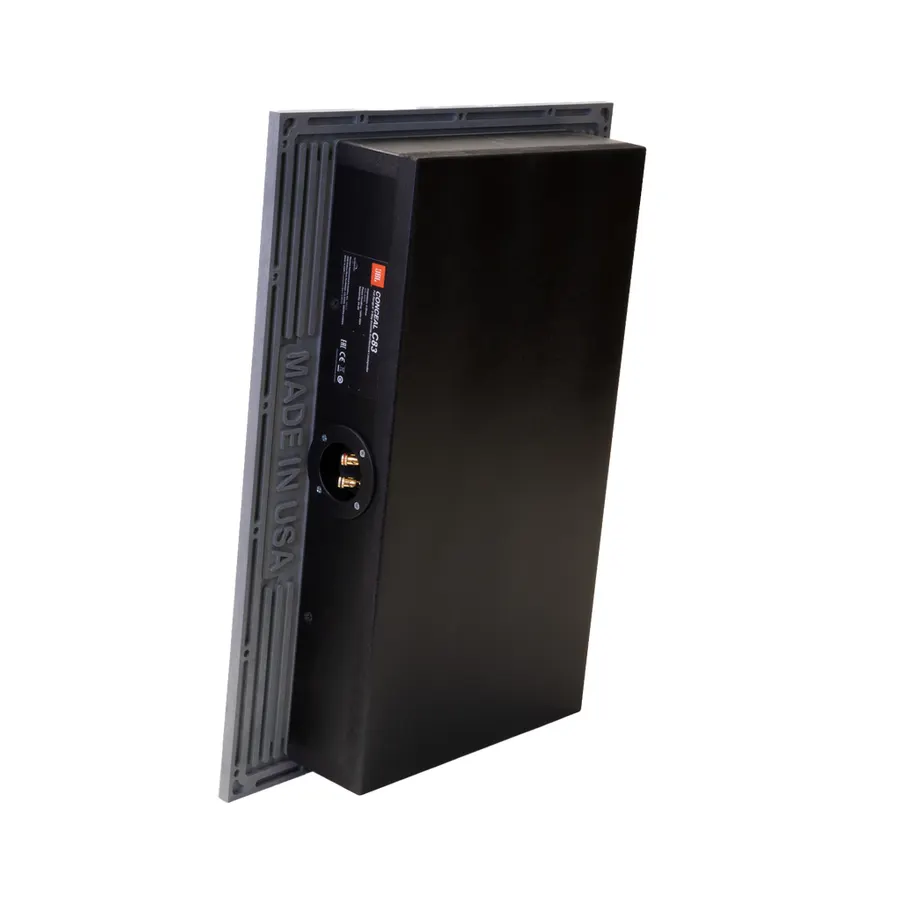

| Enclosure Type | Sealed, with wooden back-box |
| Protection | Two independent self-resetting devices (LF and MF/HF) |
| Input Type | Five-way gold-plated spring-loaded binding posts |
| Warranty | 5 Years |
| Panel Dimensions | 22" H x 15-7/8" W x 3-7/8" D (559mm H x 403mm W x 98mm D) |
| Cut-out Dimensions | 22-1/8” H x 16” W (562mm H x 406mm W) |
| Mounting Depth | 3-3/8-inches (86mm) |
| Product Weight | 21.8 lbs (9.9kg) |
| Colours | Grey |
| Sold as | Each |
| Model | Conceal C83 |
