JBL 104-BT (Pair)
JBL
JBL 104-BT (Pair)
Model: 104-BT (Pair)
$238.8
≈ UGX 907,440 · pay with MTN MoMo, Airtel Money or card

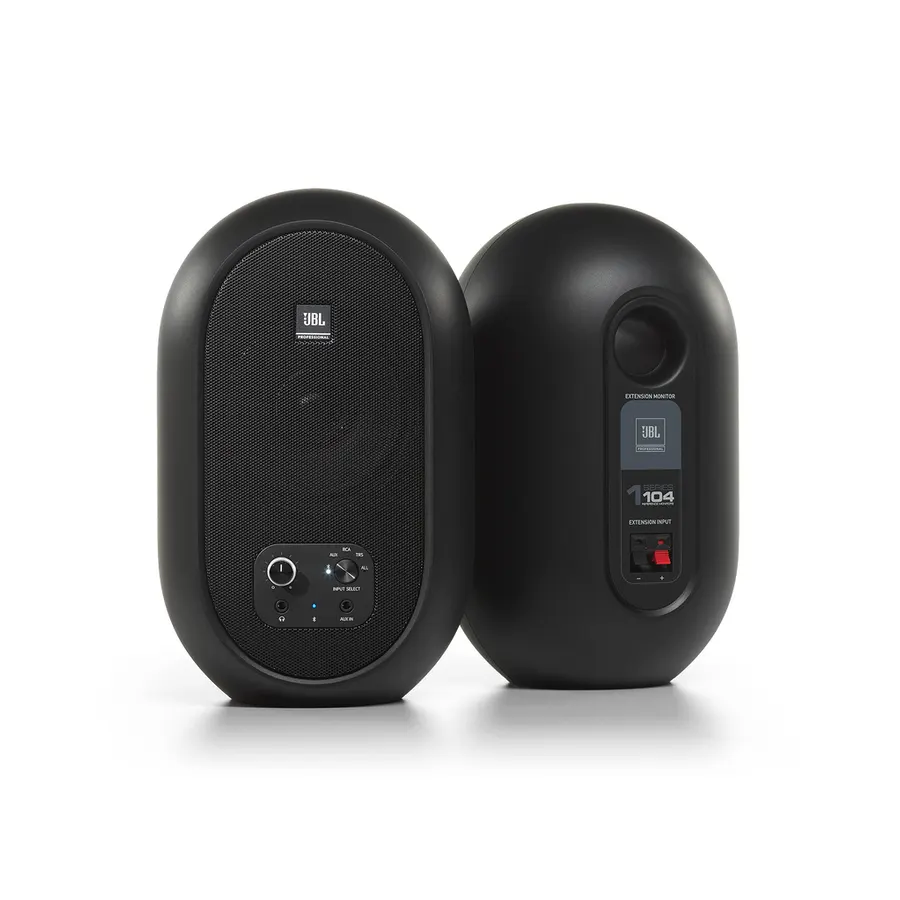

JBL 104-BT is a pair of compact desktop reference monitors with Bluetooth. Key specs: 88 Hz – 20 kHz frequency response.
Specifications
| Bluetooth version | 5.0 |
| Low Frequency Transducer | 4.5 in (118 mm) |
| High Frequency Transducer | 0.75 in (19 mm), soft dome |
| Crossover | 1725 Hz, 1st order |
| Power Amp | 60 W (30 W each speaker), Class D |
| Sensitivity | 87 dB SPL @ 1 m with -10 dBV Aux In (Volume = Max) |
| Maximum Continuous SPL | 89 dB |
| System Peak SPL | 102 dB (pink noise, 12 dB crest factor) |
| Maximum SPL, Momentary Peak | 104 dB |
| Frequency Range (-3 dB SPL) | 88 Hz – 20 kHz |
| Frequency Range (-10 dB SPL) | 60 Hz – 20 kHz |
| System Rated Impedance | 8 Ω |
| Minimum Impedance | 7.8 Ω @ 260 Hz |
| Cabinet Tuning Frequency | 72 Hz |
| System Distortion Criteria | <10% THD at maximum output with full compressor / limiter engagement |
| Electrical Distortion Criteria | <0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output |
| Signal to Noise Ratio | 75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF |
| Coverage (Horizontal x Vertical) | 120º x 60º |
| Acoustic Test Specification | ATS# 1000340443 |
| Height | 9.72 in (247 mm) |
| Width | 6.02 in (153 mm) |
| Depth | 4.88 in (124 mm) |
| Weight | Primary Monitor = 4.54 lb (2.06 kg); Secondary Monitor = 3.81 lb (1.73 kg) |
| Enclosure Type | Ported |
| Enclosure Material | ABS with metal grille |
| Enclosure Finish | Matte black acrylic paint (104-BT) ; Matte white acrylic paint (104-BTW) |
| System Output Type | 1/8" stereo headphone with auto speaker mute |
| System Input Type | Bluetooth, 1/8" Aux, RCA, 1/4" TRS balanced |
| Input Selection Options | Bluetooth, Aux, RCA, TRS, All |
| System Power Handling | 30 W x 2 @ 100 hours, IEC/SMS |
| System Polarity | EIA |
| AC Input Voltage | 100 – 240 VAC (± 10%), 50/60 Hz |
| Current Draw | 85 watts |
| Electrical Current Draw (W) Idle 100 / 240 VAC | 3.52 / 3.70 |
| Electrical Current Draw (W) Max Power 100 / 240 VAC | 80 / 80 |
| Electrical Current Draw (W) Low Power Standby Mode 100 / 240 VAC | 0.34 / 0.46 |
| Sold as | Each |
| Model | 104-BT (Pair) |
